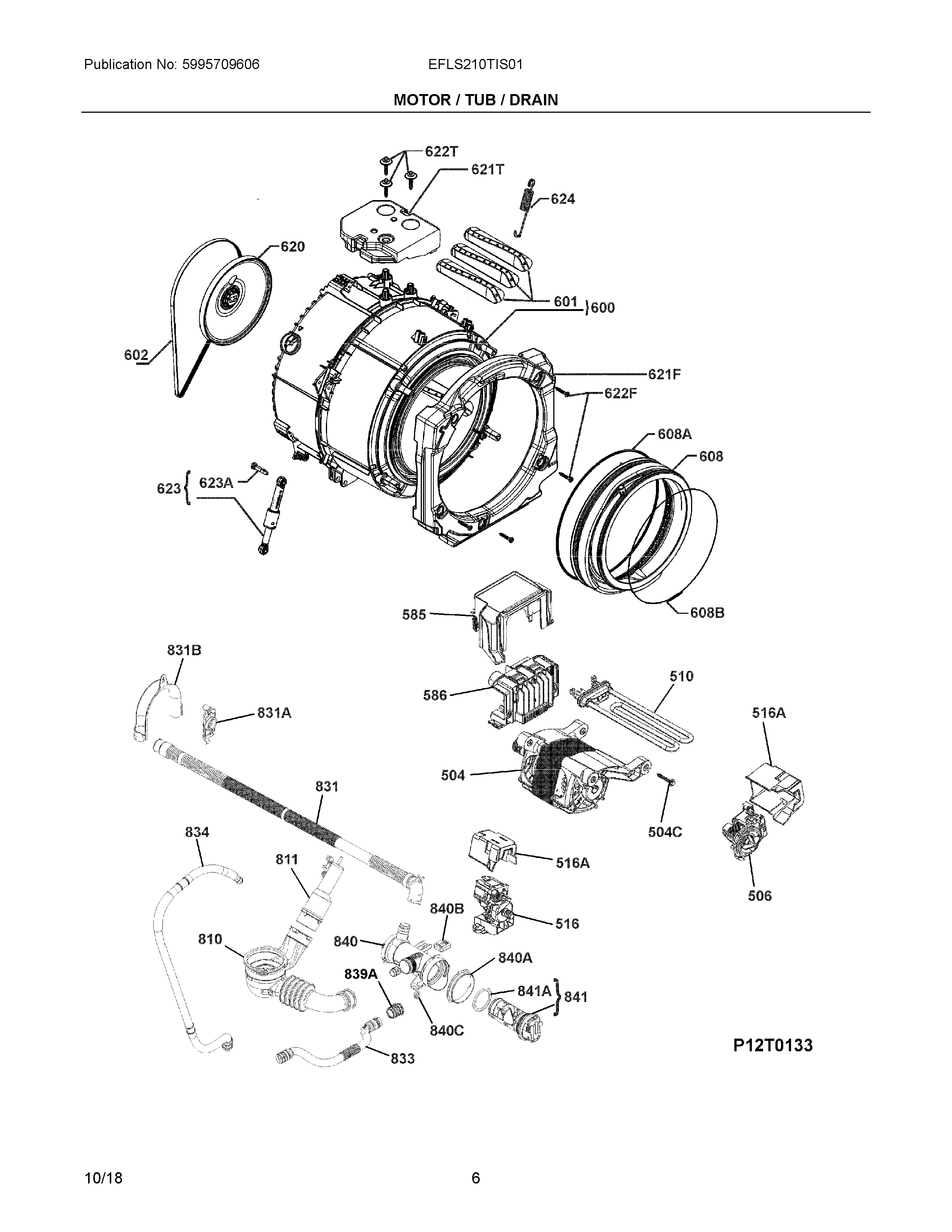

EFLS210TIS01 04 – MOTOR / TUB / DRAIN

EFLS210TIS01 04 – MOTOR / TUB / DRAIN

Written by

in

EFLS210TIS01 04 – MOTOR / TUB / DRAIN

Products

PositionProduct
504807003902 Frigidaire Motor
504C124022201 Frigidaire Bolt
506132611913 Frigidaire Pump
510137488302 Frigidaire Element
516132510083 Frigidaire Pump Assembly
516A132117601 Frigidaire Cover
585807026303 Frigidaire Cover
586A01118401 Frigidaire Inverter
600348416840 Frigidaire Tub Assembly
601405536790 Frigidaire Vane Kit
602132353120 Frigidaire Belt
608132724611 Frigidaire Bellows Assembly
608A132562100 Frigidaire Spring
608B132556200 Frigidaire Clamp
6205029824900 Frigidaire Pulley
621FCOUNTERWEIGHT, FRONT
621T132763601 Frigidaire Counterweight
622TSCREW KIT, COUNTERWEIGHT, TOP, (3 SCREWS)
622FSCREW KIT, COUNTERWEIGHT, FRONT, (5 SCREWS)
623405536793 Frigidaire Shock Absorber
623A132780401 Frigidaire Bolt
624132768400 Frigidaire Spring
810132765002 Frigidaire Hose
811132764800 Frigidaire Chamber
831132771400 Frigidaire Hose Assembly
831A132768003 Frigidaire Clamp Assembly
831B124291600 Frigidaire Hanger
833132768601 Frigidaire Hose Assembly
834132756501 Frigidaire Hose
839A5304526694 Frigidaire Hose
840132765115 Frigidaire Pump
840A132765200 Frigidaire Gasket
840B5304505433 Frigidaire Pad
840C132514200 Frigidaire Compensator
841A06486401 Frigidaire Filter Assembly
841ASEAL, FILTER,
