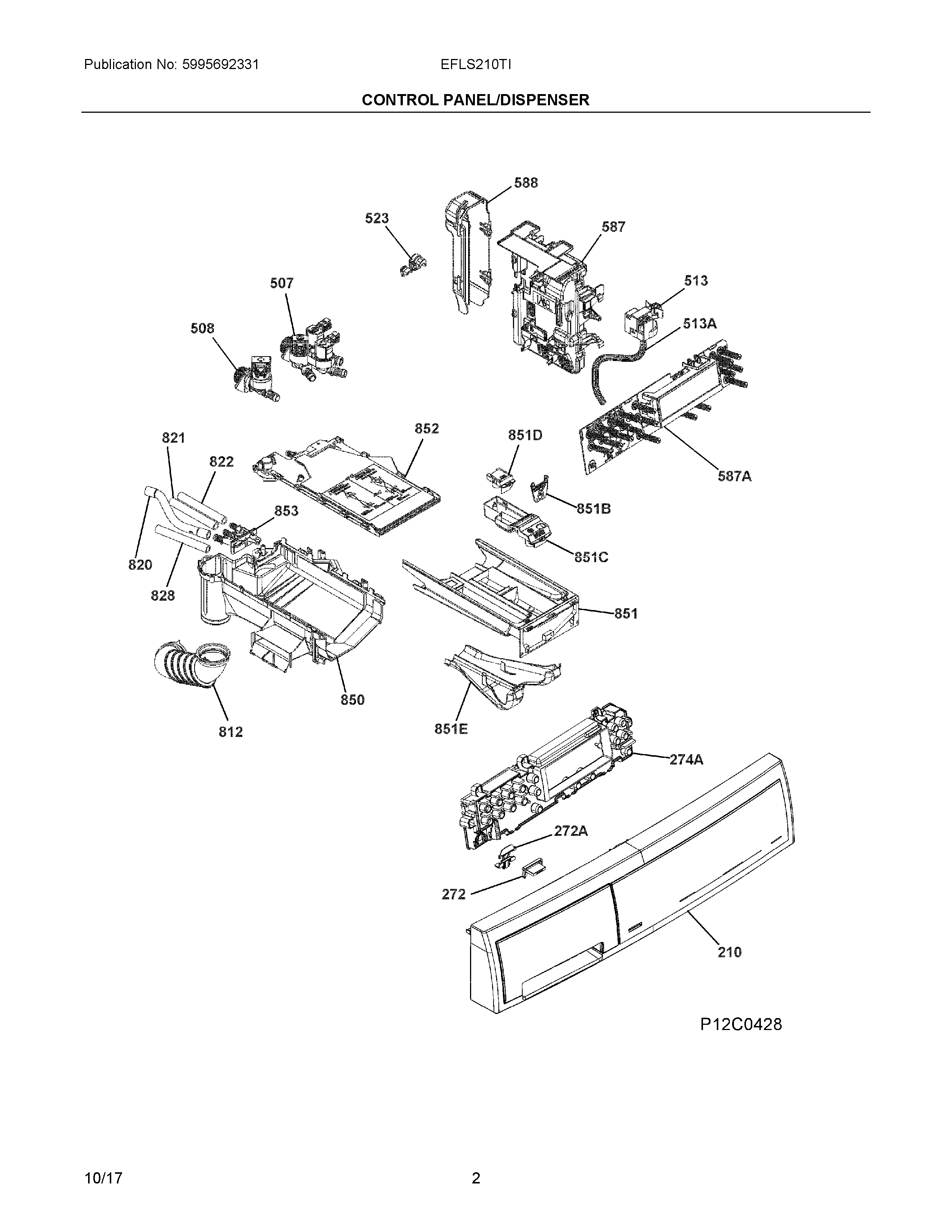

EFLS210TIW00 02 – CONTROL PANEL/DISPENSER

Products

Position	Product
NI	A01245801 Frigidaire Harness
NI	132315920 Frigidaire Clamp
NI	132315970 Frigidaire Clamp
NI	A01245501 Frigidaire Wiring Harness
NI	A01245601 Frigidaire Harness
NI	A01245701 Frigidaire Harness
NI	A01208401 Frigidaire Cable
NI	CLAMP, HOSE, 21.5-22.6MM
NI	CLAMP, HOSE, D40
NI	CLAMP, HOSE, D 20, 5
NI	A01246501 Frigidaire Harness
NI	A01246301 Frigidaire Harness
NI	A01246201 Frigidaire Harness
NI	A01246101 Frigidaire Harness
NI	A01245901 Frigidaire Harness
NI	A01246601 Frigidaire Washer Wiring Harness
210	A06579801 Frigidaire Panel
272A	136658601 Frigidaire Spring
272	136658511 Frigidaire Button
274A	136659600 Frigidaire Diffuser
507	132518842 Frigidaire Washer Valve
508	132744701 Frigidaire Valve
513A	132642371 Frigidaire Tube
513	379221604 Frigidaire Pressure Switch
523	DUCT, POWER CABLE, UL
587A	A10066602 Frigidaire PC Board Assembly
587	97391453500300 Frigidaire Refrigerator Washer Control Board
588	807021101 Frigidaire Protection
812	HOSE KIT, DETERGENT FILL, W/CLAMPS
820	405536798 Frigidaire Kit Tube
821	405536797 Frigidaire Tube Kit
822	TUBE KIT, ELECTRIC VALVE, D=10MM/L=125MM
828	132502480 Frigidaire Tube
850	132640843 Frigidaire Dispenser
851D	809169801 Frigidaire SYPHON
851C	809169901 Frigidaire Syphon
851B	132767801 Frigidaire Flap
851	132507511 Frigidaire Drawer
851E	132507601 Frigidaire Conveyor
852	132507112 Frigidaire Distributor
853	DISTRIBUTOR, WATER, BACK, PIPE UNION
