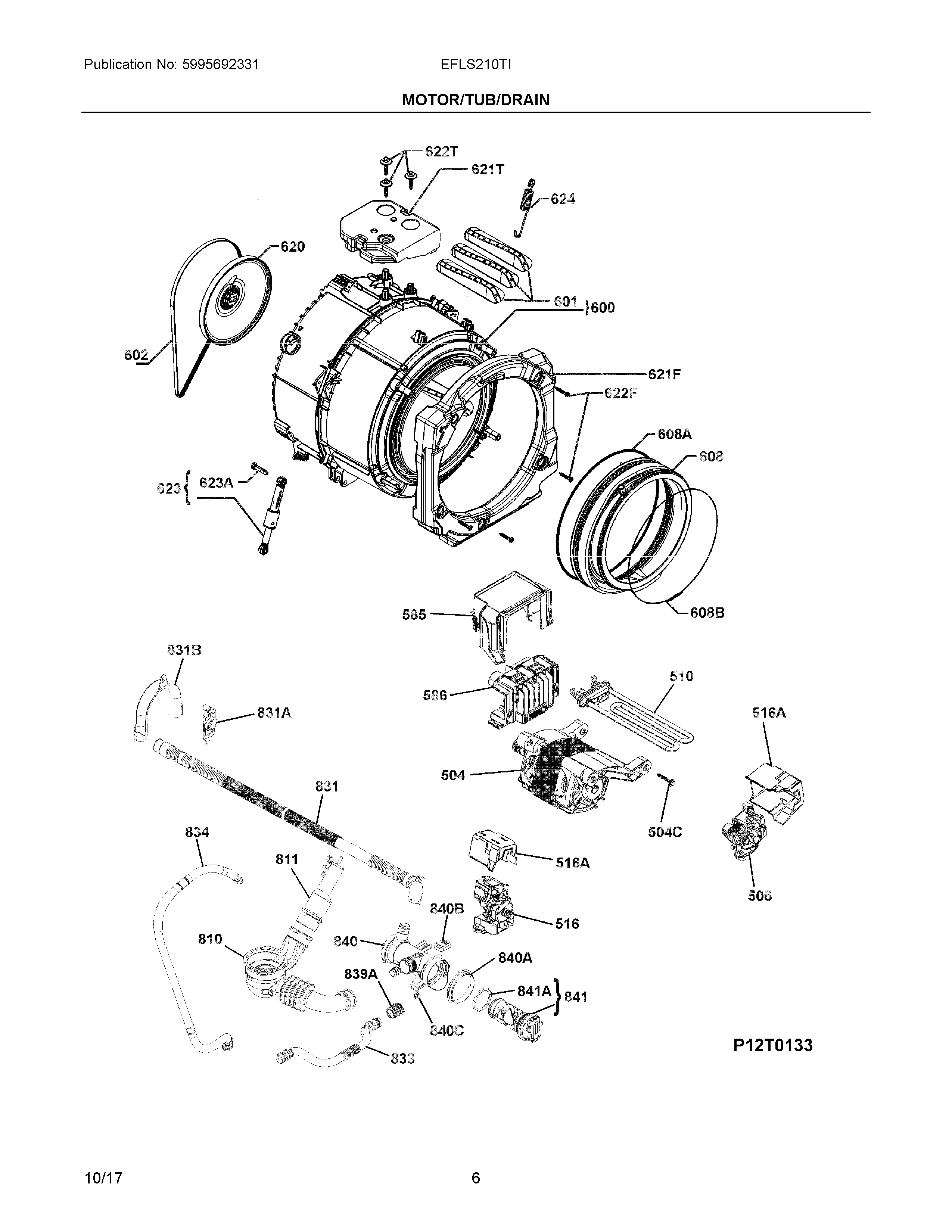

EFLS210TIW00 04 – MOTOR/TUB/DRAIN

Products

Position	Product
504	807003902 Frigidaire Motor
504C	124022201 Frigidaire Bolt
506	132611913 Frigidaire Pump
510	137488302 Frigidaire Element
516	132510083 Frigidaire Pump Assembly
516A	132117601 Frigidaire Cover
585	807026303 Frigidaire Cover
586	A01118401 Frigidaire Inverter
600	348416840 Frigidaire Tub Assembly
601	405536790 Frigidaire Vane Kit
602	132353120 Frigidaire Belt
608	132724611 Frigidaire Bellows Assembly
608A	132562100 Frigidaire Spring
608B	132556200 Frigidaire Clamp
620	5029824900 Frigidaire Pulley
621F	COUNTERWEIGHT, FRONT
621T	132763601 Frigidaire Counterweight
622T	SCREW KIT, COUNTERWEIGHT, TOP, (3 SCREWS)
622F	SCREW KIT, COUNTERWEIGHT, FRONT, (5 SCREWS)
623	405536793 Frigidaire Shock Absorber
623A	132780401 Frigidaire Bolt
624	132768400 Frigidaire Spring
810	132765002 Frigidaire Hose
811	132764800 Frigidaire Chamber
831	132771400 Frigidaire Hose Assembly
831A	132768003 Frigidaire Clamp Assembly
831B	124291600 Frigidaire Hanger
833	132768601 Frigidaire Hose Assembly
834	132756501 Frigidaire Hose
839A	5304526694 Frigidaire Hose
840	132765115 Frigidaire Pump
840A	132765200 Frigidaire Gasket
840B	5304505433 Frigidaire Pad
840C	132514200 Frigidaire Compensator
841A	A06486401 Frigidaire Filter Assembly
841A	SEAL, FILTER,
841	132765801 Frigidaire Filter Assembly
