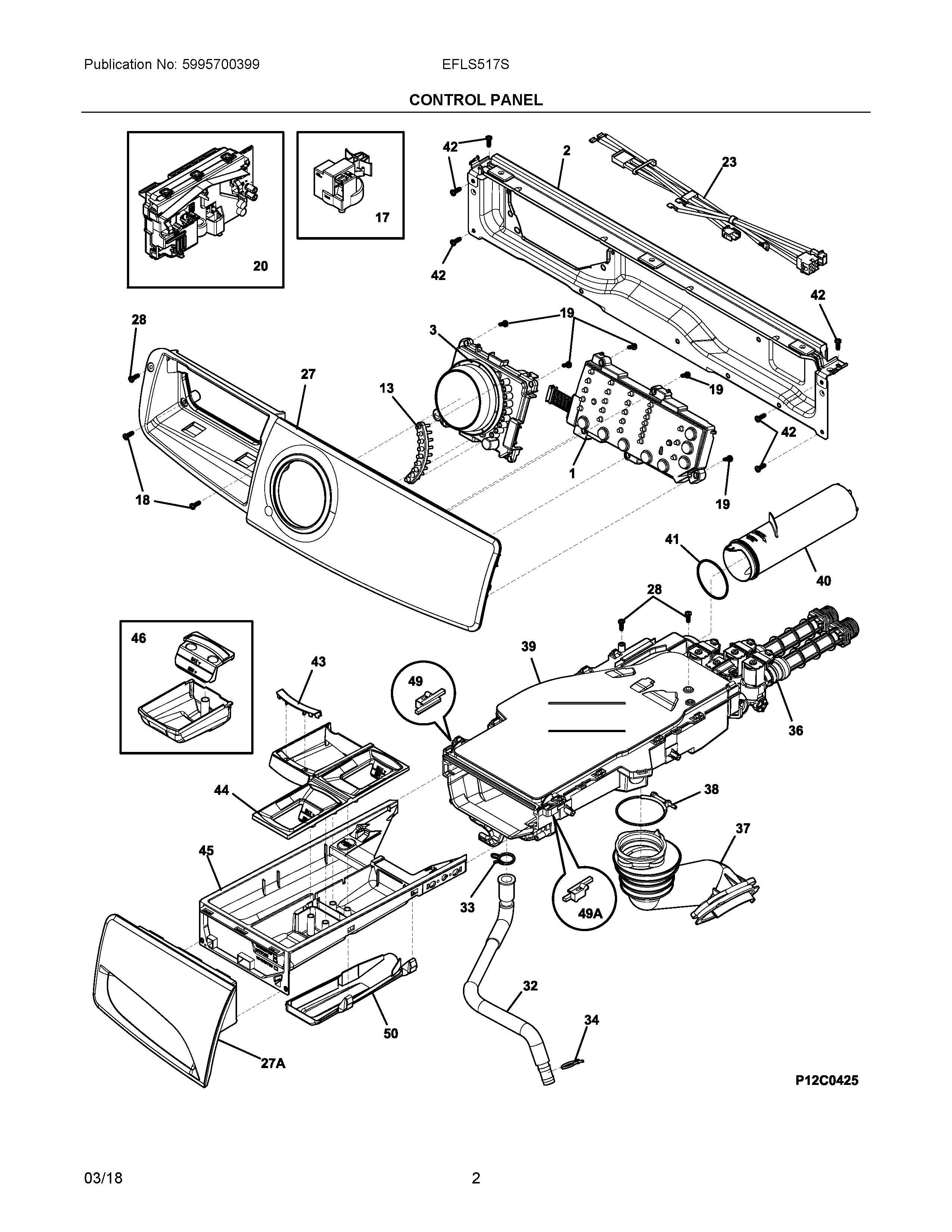

EFLS517SIW0 02 – CONTROL PANEL

Products

Position	Product
NIA	134178901 Frigidaire Screw
NI	ENERGY GUIDE
NIA	134629400 Frigidaire Screw
NIA	134371300 DISPENSER TO VALVE GASKET
NIA	134407900 Frigidaire Dampener
1	5304505611 Frigidaire Board Assembly
2	5304505086 Frigidaire Bracket
3	5304505017 Frigidaire Assembly Knob
13	DIFFUSER, LIGHT
17	SENSOR SWITCH
18	131302800 Frigidaire Drum Vane Screw
19	5304505441 Frigidaire Screw
20	5304505571 Frigidaire Main Board
23	5304505178 Frigidaire Harness
27	CONSOLE ASSEMBLY, W/OVERLAY
27A	HANDLE ASSEMBLY, DRAWER, W/OVERLAY
28	131205100 Frigidaire Screw
32	134625500 Frigidaire Hose
33	134737300 Frigidaire Clamp
34	5304528020 Frigidaire Cable Tie
36	5304505192 Frigidaire Valve Assembly
37	134625700 Frigidaire Hose
38	134372400 Frigidaire Clamp
39	HOUSING ASSEMBLY, DISPENSER, W/VALVE
40	134372103 Frigidaire Tube
41	134372200 Frigidaire O-Ring
42	131168200 Frigidaire Dryer Screw
43	INDICATOR, STAIN TREATMENT
44	COVER, DRAWER, W/GRAPHICS
45	DRAWER, DISPENSER
46	137143800 Frigidaire Cup
49A	GUIDE, DISPENSER DWR, RH
49	GUIDE, DISPENSER DWR, LH
50	WCI 134638400
