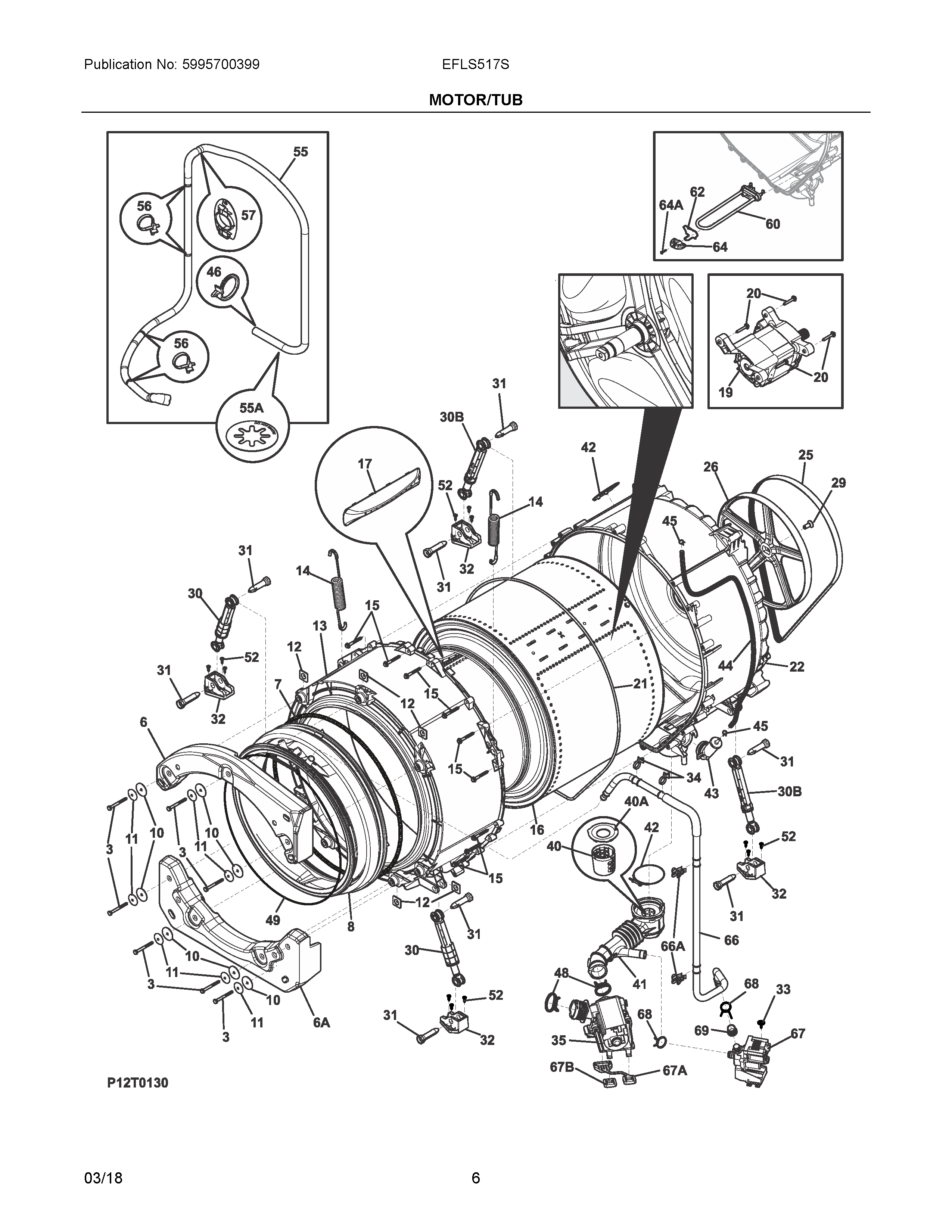

EFLS517SIW0 04 – MOTOR/TUB

EFLS517SIW0 04 – MOTOR/TUB

Written by

in

EFLS517SIW0 04 – MOTOR/TUB

Products

PositionProduct
NIA137110800 Frigidaire Cushion
NIA134637200 Frigidaire Screw
NI131168200 Frigidaire Dryer Screw
35304505159 Frigidaire Screw
6COUNTERWEIGHT, TOP
6ACOUNTERWEIGHT, BOTTOM
7134616200 Frigidaire Washer Spring Assembly
85304505004 Frigidaire Washer Door Gasket
105304505212 Frigidaire Washer
11131276900 Frigidaire Washer Spring
125304505175 Frigidaire Plate
135304533999 Frigidaire Shell
145304505117 Frigidaire Washer Spring
15131303900 Frigidaire Screw
165304505337 Frigidaire Drum Assembly
17137263600 Frigidaire Washer Front-Load Tub Baffle
195304505271 Frigidaire Motor
20131303500 Frigidaire Screw
215304520351 Frigidaire Washer O-Ring
225304505157 Frigidaire Rear Drum Assembly with Bearing
25134616700 Frigidaire Belt
26PULLEY, DRUM DRIVE, REAR
29BOLT
30SHOCK ABSORBER
30B137412601 Frigidaire Washer Shock Absorber
31131268300 Frigidaire Leveling Pin
32134363200 Frigidaire Bracket
33134160900 Frigidaire Screw
345304528020 Frigidaire Cable Tie
355304514775 Frigidaire Washer Pump Assembly
40A5304505169 Frigidaire Cover
405304505165 Frigidaire Filter
415304505162 Frigidaire Hose
42134737300 Frigidaire Clamp
435304535282 Frigidaire Air Chamber
45137087500 Frigidaire Clamp
46134261300 Frigidaire Clip
48131306234 Frigidaire Clamp Pump
49134616300 Frigidaire Washer Clamp
52131202300 Frigidaire Screw
55137629208 Frigidaire Drain Hose
55A137385100 Frigidaire Ring
56137003500 Frigidaire Cable Tie
57134641100 Frigidaire Bracket
60137488301 Frigidaire Heating Element (10
62134642300 Frigidaire Support Assembly
64A5304505439 Frigidaire Screw
645304505156 Frigidaire Cover
665304526694 Frigidaire Hose
67PUMP ASSY
67B5304505433 Frigidaire Pad
67A137297000 Frigidaire Pad Assembly
68WCI 131306217
