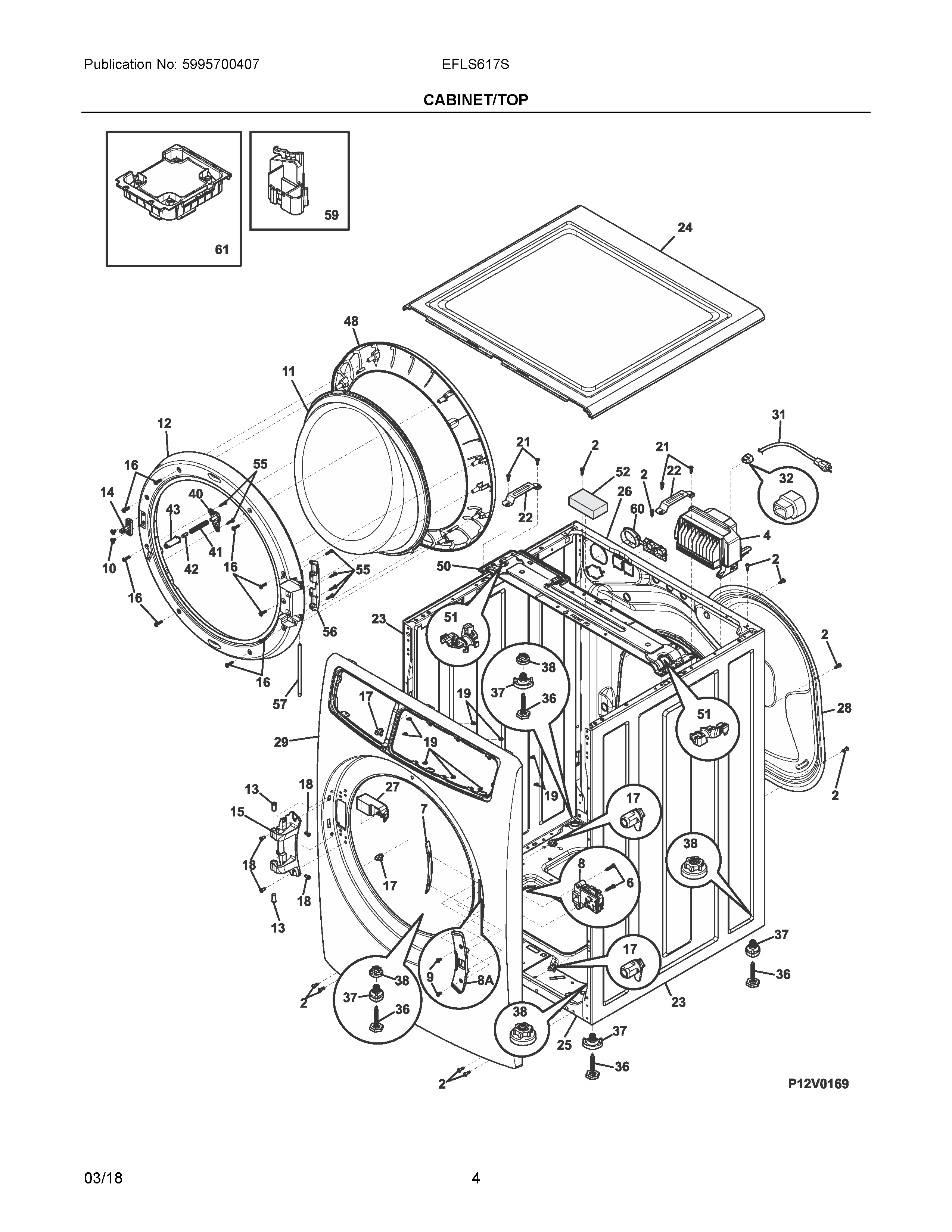

EFLS617STT0 03 – CABINET/TOP

EFLS617STT0 03 – CABINET/TOP

Written by

in

EFLS617STT0 03 – CABINET/TOP

Products

PositionProduct
NI134591400 Frigidaire Hole Plug
NI137146700 Frigidaire Support Kit
NI137262100 Frigidaire Screw
NIA137110800 Frigidaire Cushion
NI134876501 Frigidaire Clip
NI134629400 Frigidaire Screw
NIA5304522524 Frigidaire Harness
NI5304464772 Frigidaire Refrigerator Wire Tie
NIA5304505127 Frigidaire Harness
NIB131202300 Frigidaire Screw
NIB134178901 Frigidaire Screw
2131168200 Frigidaire Dryer Screw
45304505521 Frigidaire Motor Control
65308014215 Frigidaire Oven Screw
75304505144 Frigidaire Cover
8A5304505103 Frigidaire Cover
85304514774 Frigidaire Washer Door Lock Assembly with Switch
9131302800 Frigidaire Drum Vane Screw
10137241000 Frigidaire Screw
115304505107 Frigidaire Door Glass Window
125304505234 Frigidaire Frame
145304505088 Frigidaire Washer Latch
155304508699 Frigidaire Hinge Assembly
16137087000 Frigidaire Screw
175304505102 Frigidaire Clip
185304505259 Frigidaire Screw
195304505441 Frigidaire Screw
21137087400 Frigidaire Screw
225304505101 Frigidaire Bracket
235304505140 Frigidaire Panel
245304505082 Frigidaire Top Panel
25BASE
26PANEL, BACK
275304505104 Frigidaire Protection
28BACK PANEL SERVICE,service
295304505059 Frigidaire Panel
315304522525 Frigidaire Power Cord
325303209428 Frigidaire Serv.Cord Bushing
36134639100 Frigidaire Leveling Leg
37134617600 Frigidaire Bushing
38134639200 Frigidaire Nut
405304505328 Frigidaire Cap
415304505329 Frigidaire Spring
425304505381 Frigidaire Magnet
435304535443 Frigidaire Button
485304505389 Frigidaire Frame Assembly
505304505087 Frigidaire Bracket
515304505221 Frigidaire Protector Assembly
52131931202 Frigidaire Dampener
553205150 Frigidaire Tub Bearing Screw
565304505001 Frigidaire Bracket Assembly
575304505269 Frigidaire Pin
595304505311 Frigidaire Support
60134372000 Frigidaire Grommet
61134652000 Frigidaire Damper
