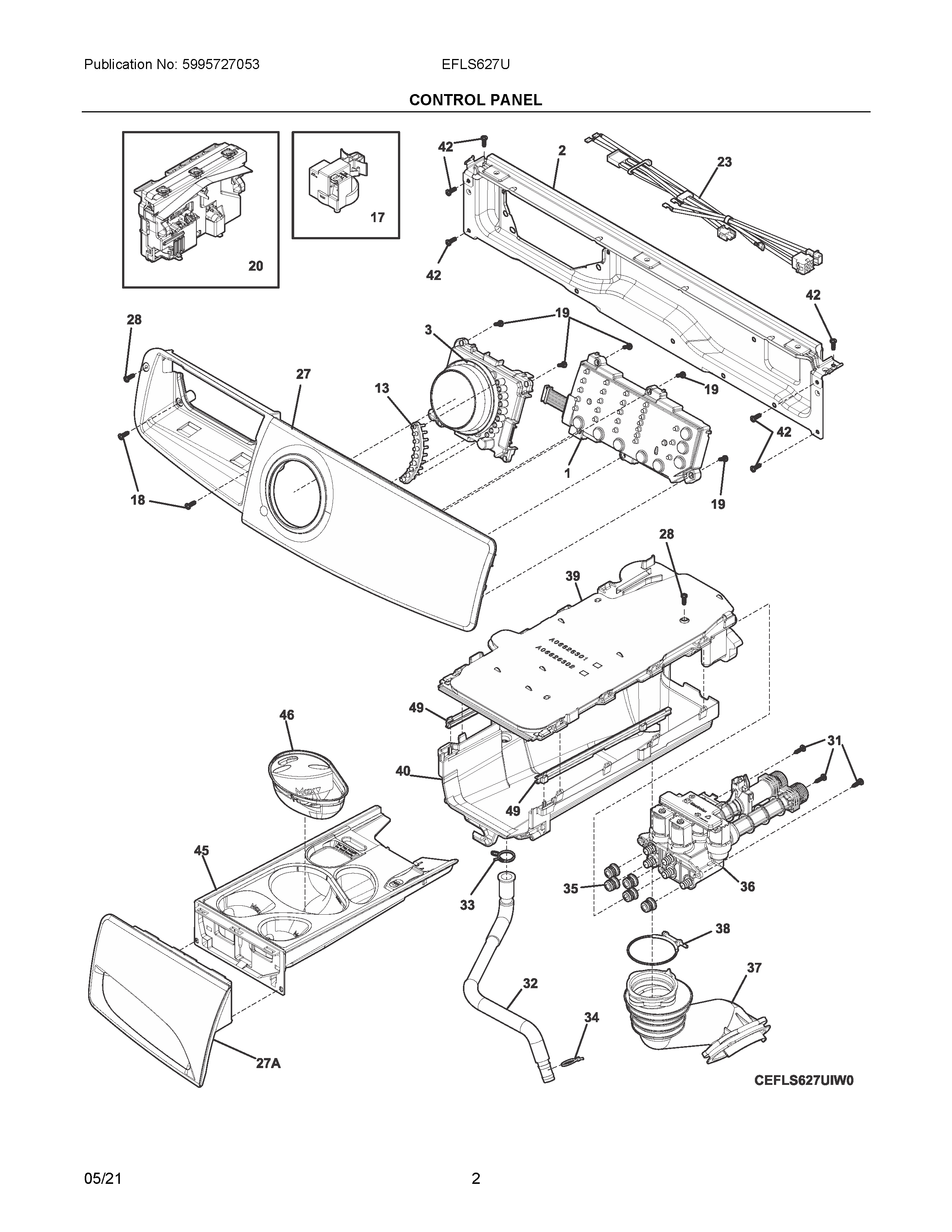

EFLS627UTT2 02 – CONTROL PANEL

EFLS627UTT2 02 – CONTROL PANEL

Written by

in

EFLS627UTT2 02 – CONTROL PANEL

Products

PositionProduct
NIA134629400 Frigidaire Screw
NIA134407900 Frigidaire Dampener
15304529484 Frigidaire Board Assembly
25304505086 Frigidaire Bracket
35304528006 Frigidaire Knob Assembly
13DIFFUSER, LIGHT
17SENSOR SWITCH
18131302800 Frigidaire Drum Vane Screw
195304505441 Frigidaire Screw
205304529479 Frigidaire Main Board
235304522537 Frigidaire Harness
275304515234 Frigidaire Console Assembly
27A5304515237 Frigidaire Handle Assembly
28131205100 Frigidaire Screw
315304514820 Frigidaire Screw
32134625500 Frigidaire Hose
33134737300 Frigidaire Clamp
345304528020 Frigidaire Cable Tie
35134371300 DISPENSER TO VALVE GASKET
365304528029 Frigidaire Valve Assembly Vortex with Flow Meter
37134625700 Frigidaire Hose
38134372400 Frigidaire Clamp
395304514794 Frigidaire Washer Conveyor
405304514782 Frigidaire Washer Housing
42131168200 Frigidaire Dryer Screw
455304514792 Frigidaire Drawer Dispenser
465304514801 Frigidaire Cup Assembly
495304514781 Frigidaire Slider Assembly
