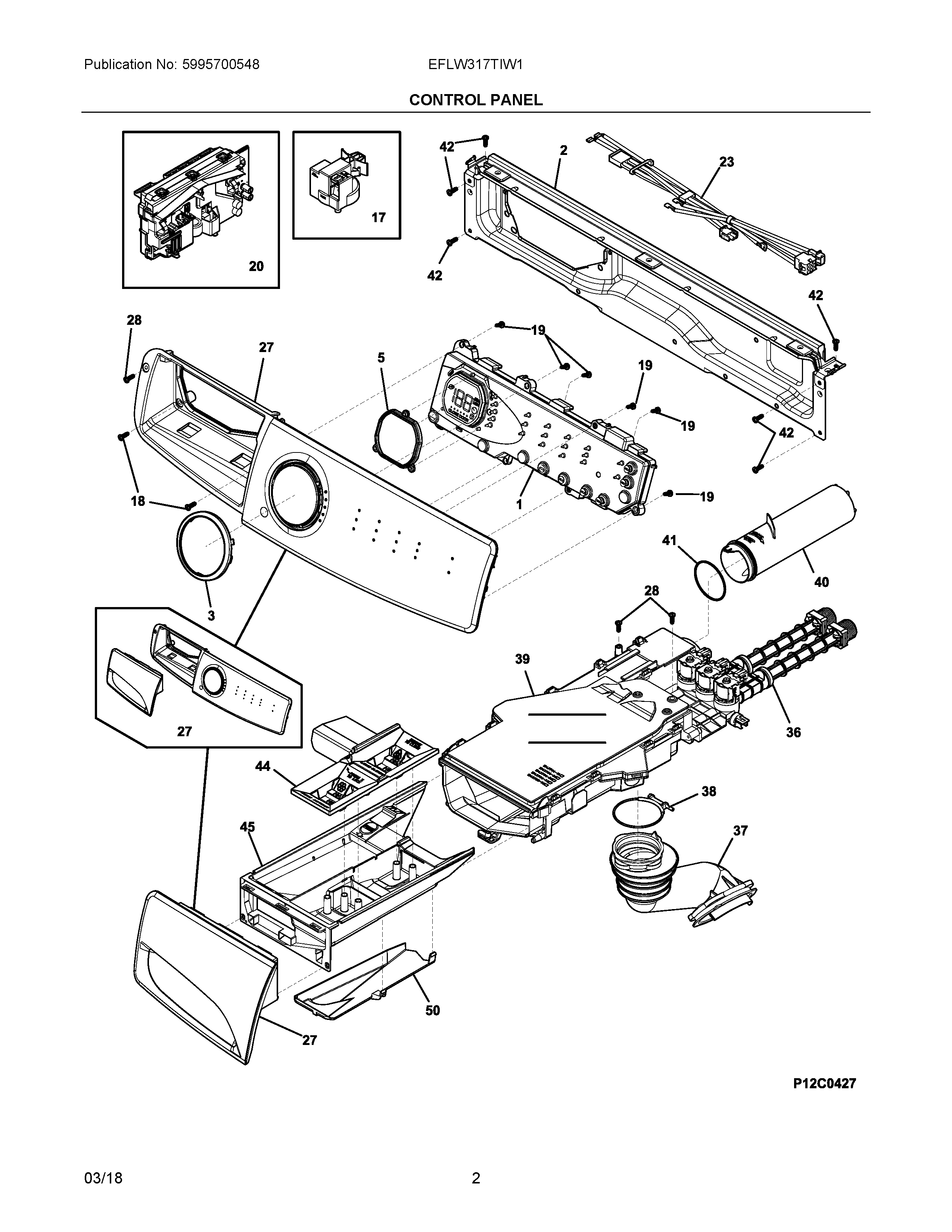

EFLW317TIW1 02 – CONTROL PANEL

Products

Position	Product
NIA	134178901 Frigidaire Screw
NI	ENERGY GUIDE
NIA	134407900 Frigidaire Dampener
NIA	5304510114 Frigidaire Cable
NIA	134629400 Frigidaire Screw
NIA	134371300 DISPENSER TO VALVE GASKET
1	5304510357 Frigidaire Board Assembly
2	5304505086 Frigidaire Bracket
3	5304505044 Frigidaire Trim Assembly
5	5304505045 Frigidaire Seal
17	SENSOR SWITCH
18	131302800 Frigidaire Drum Vane Screw
19	5304505441 Frigidaire Screw
20	5304515626 Frigidaire Board Assembly
23	5304522531 Frigidaire Harness
27	5304510125 Frigidaire Console/Handle Assembly
28	131205100 Frigidaire Screw
36	5304512102 Frigidaire Assembly Housing
37	134625700 Frigidaire Hose
38	134372400 Frigidaire Clamp
40	134372103 Frigidaire Tube
41	134372200 Frigidaire O-Ring
42	131168200 Frigidaire Dryer Screw
44	134370200 Frigidaire Washer Dispenser Drawer Cover
50	134409320 Frigidaire Dispenser Assembly
