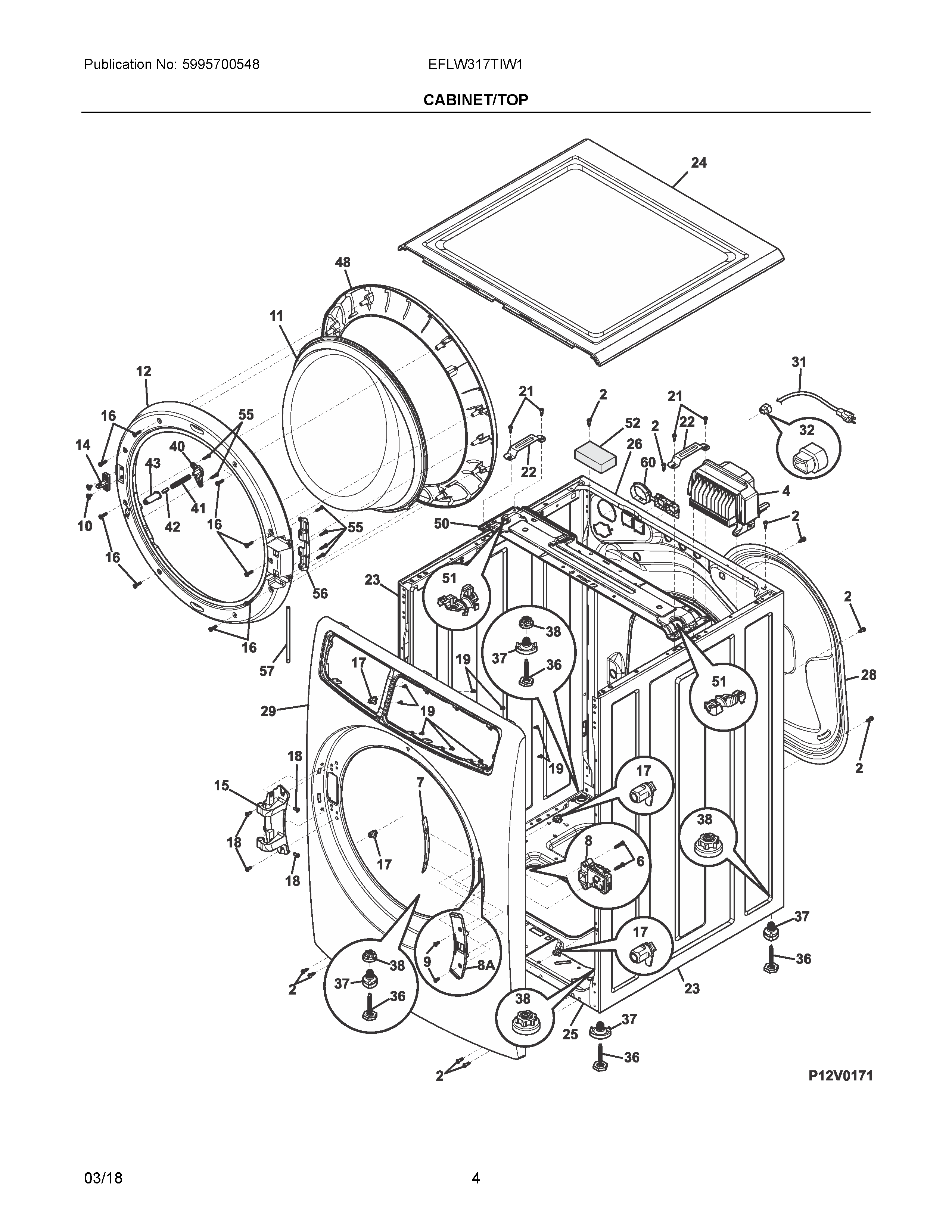

EFLW317TIW1 03 – CABINET/TOP

EFLW317TIW1 03 – CABINET/TOP

Written by

in

EFLW317TIW1 03 – CABINET/TOP

Products

PositionProduct
NI137262100 Frigidaire Screw
NI134591400 Frigidaire Hole Plug
NI137146700 Frigidaire Support Kit
NIA5304522522 Frigidaire Oven Harness
NIB131302800 Frigidaire Drum Vane Screw
NI134876501 Frigidaire Clip
NI134629400 Frigidaire Screw
NIA5304522523 Frigidaire Harness
45304516720 Frigidaire Motor Control
65308014215 Frigidaire Oven Screw
75304505144 Frigidaire Cover
85304514774 Frigidaire Washer Door Lock Assembly with Switch
8A5304505103 Frigidaire Cover
9131168200 Frigidaire Dryer Screw
10137241000 Frigidaire Screw
115304505107 Frigidaire Door Glass Window
125304505233 Frigidaire Frame Assembly
145304505088 Frigidaire Washer Latch
155304508699 Frigidaire Hinge Assembly
16137087000 Frigidaire Screw
175304505102 Frigidaire Clip
185304505259 Frigidaire Screw
195304505441 Frigidaire Screw
21137087400 Frigidaire Screw
225304505101 Frigidaire Bracket
235304505139 Frigidaire Panel
245304505081 Frigidaire Top Panel
25BASE
26PANEL, BACK
28134646205 Frigidaire Panel
295304505058 Frigidaire Panel Assembly
315304522525 Frigidaire Power Cord
325303209428 Frigidaire Serv.Cord Bushing
36134639100 Frigidaire Leveling Leg
37134617600 Frigidaire Bushing
38134639200 Frigidaire Nut
405304505328 Frigidaire Cap
415304505329 Frigidaire Spring
425304505381 Frigidaire Magnet
435304505330 Frigidaire Button
485304505112 Frigidaire Frame Assembly
505304505087 Frigidaire Bracket
515304505221 Frigidaire Protector Assembly
52131931202 Frigidaire Dampener
553205150 Frigidaire Tub Bearing Screw
565304505001 Frigidaire Bracket Assembly
575304505269 Frigidaire Pin
60134372000 Frigidaire Grommet
