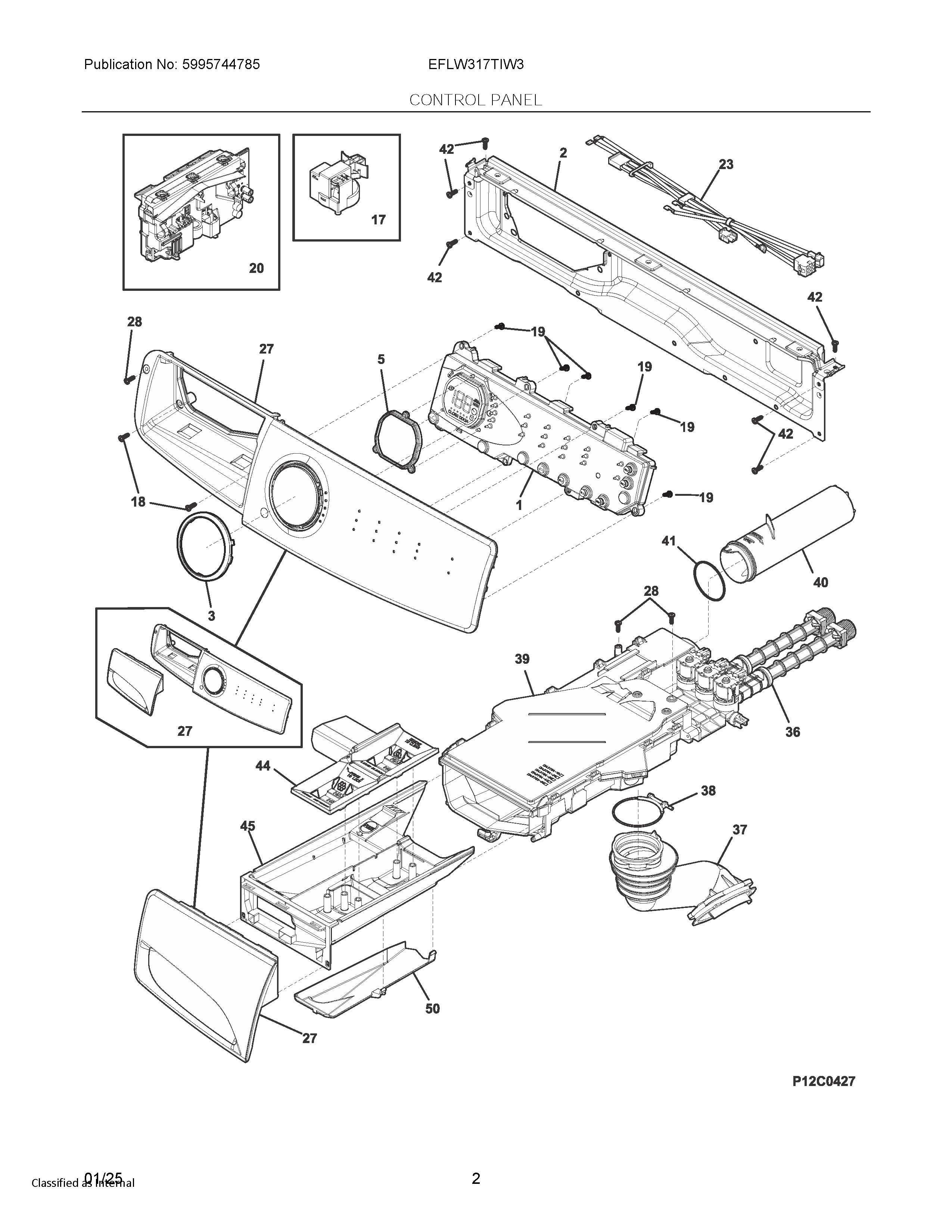

EFLW317TIW3 02 – CONTROL PANEL

EFLW317TIW3 02 – CONTROL PANEL

Written by

in

EFLW317TIW3 02 – CONTROL PANEL

Products

PositionProduct
NIA134178901 Frigidaire Screw
NIA134407900 Frigidaire Dampener
NIA5304510114 Frigidaire Cable
NIA134629400 Frigidaire Screw
NIA134371300 DISPENSER TO VALVE GASKET
15304530219 Frigidaire Electrical Control
25304505086 Frigidaire Bracket
35304505044 Frigidaire Trim Assembly
55304505045 Frigidaire Seal
17SENSOR SWITCH
18131302800 Frigidaire Drum Vane Screw
195304505441 Frigidaire Screw
205304515626 Frigidaire Board Assembly
235304522531 Frigidaire Harness
275304510125 Frigidaire Console/Handle Assembly
28131205100 Frigidaire Screw
365304512102 Frigidaire Assembly Housing
37134625700 Frigidaire Hose
38134372400 Frigidaire Clamp
40134372103 Frigidaire Tube
41134372200 Frigidaire O-Ring
42131168200 Frigidaire Dryer Screw
44134370200 Frigidaire Washer Dispenser Drawer Cover
50134409320 Frigidaire Dispenser Assembly
