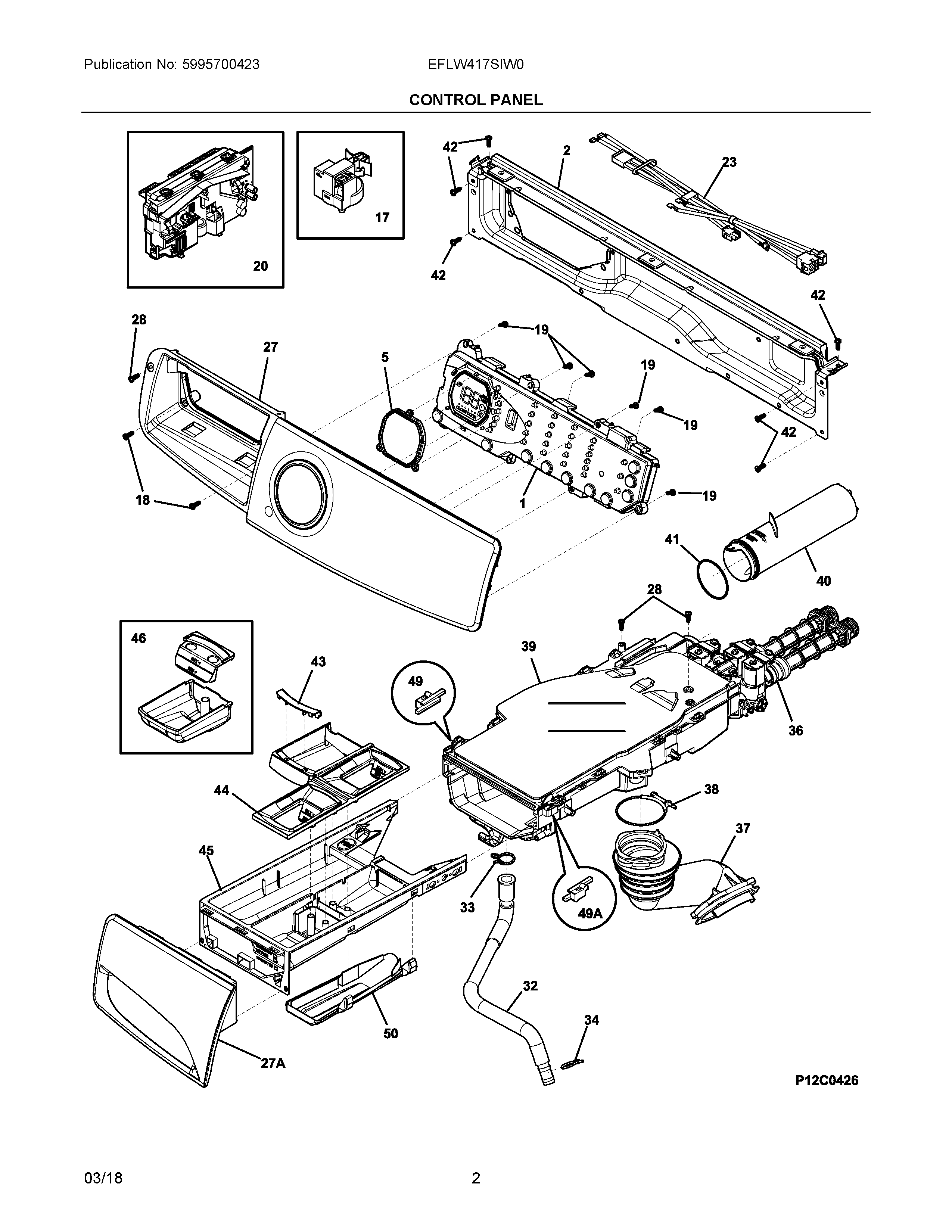

EFLW417SIW0 02 – CONTROL PANEL

Products

Position	Product
NI	ENERGY GUIDE
NIA	134407900 Frigidaire Dampener
NIA	134629400 Frigidaire Screw
NIA	134371300 DISPENSER TO VALVE GASKET
1	5304505612 Frigidaire Board Assembly
2	5304505086 Frigidaire Bracket
5	5304505345 Frigidaire Seal
17	SENSOR SWITCH
18	131302800 Frigidaire Drum Vane Screw
19	5304505441 Frigidaire Screw
20	5304505574 Frigidaire Main Board Assembly
23	5304505170 Frigidaire Harness Assembly
27A	HANDLE ASSEMBLY, DRAWER, W/OVERLAY
27	CONSOLE ASSEMBLY, W/OVERLAY
28	131205100 Frigidaire Screw
32	134625500 Frigidaire Hose
33	134737300 Frigidaire Clamp
34	5304528020 Frigidaire Cable Tie
36	5304505191 Frigidaire Valve Assembly
37	134625700 Frigidaire Hose
38	134372400 Frigidaire Clamp
39	HOUSING ASSEMBLY, DISPENSER, W/VALVE
40	134372103 Frigidaire Tube
41	134372200 Frigidaire O-Ring
42	131168200 Frigidaire Dryer Screw
43	INDICATOR, STAIN TREATMENT
44	COVER, DRAWER, W/GRAPHICS
45	DRAWER, DISPENSER
46	137143800 Frigidaire Cup
49	GUIDE, DISPENSER DWR, LH
49A	GUIDE, DISPENSER DWR, RH
50	WCI 134638400
