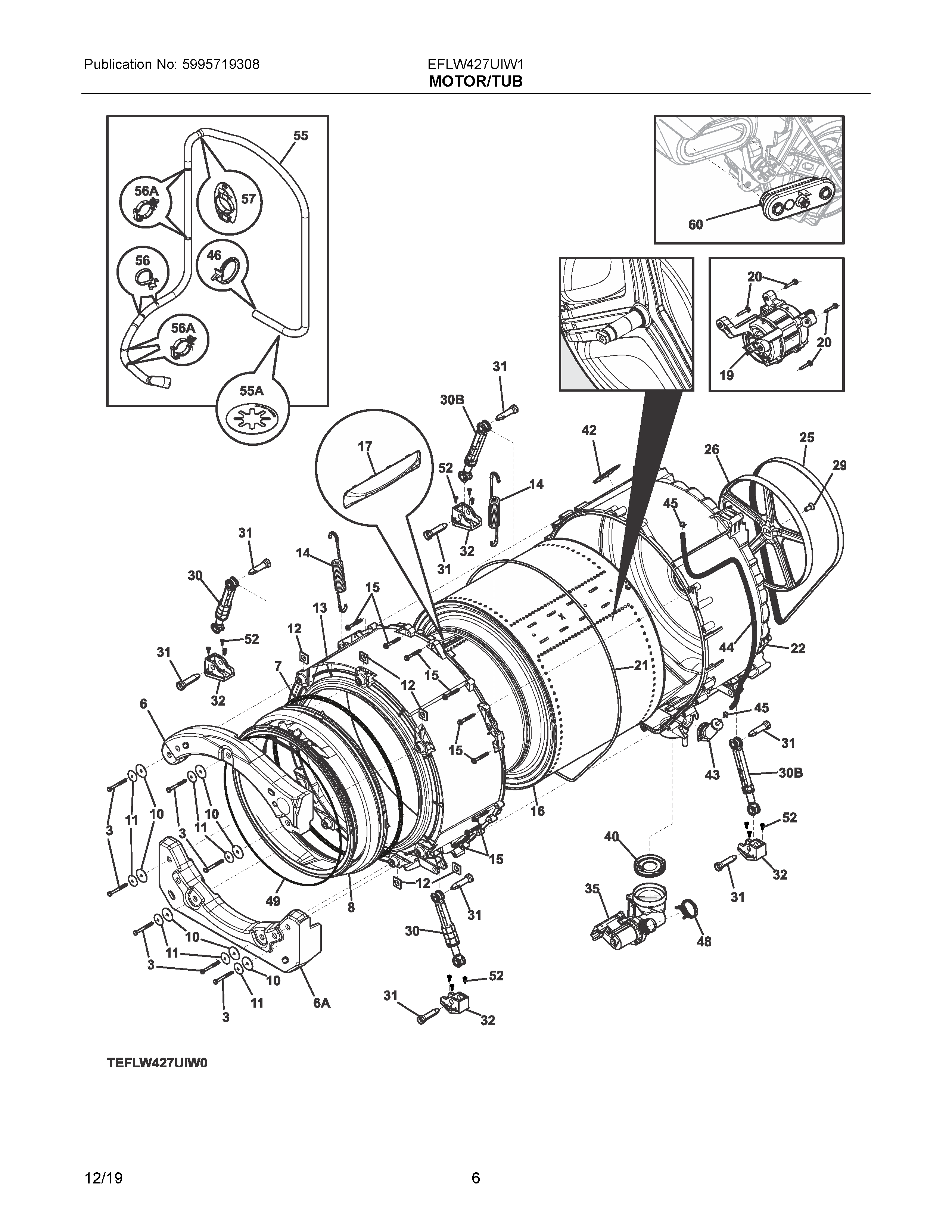

EFLW427UIW1 04 – MOTOR/TUB

Products

Position	Product
NI	131168200 Frigidaire Dryer Screw
NIA	137110800 Frigidaire Cushion
NI	5304464772 Frigidaire Refrigerator Wire Tie
3	5304505159 Frigidaire Screw
6A	COUNTERWEIGHT, BOTTOM
6	5304514819 Frigidaire Counterweight
7	134616200 Frigidaire Washer Spring Assembly
8	5304535847 Frigidaire Bellows Assembly
10	5304505212 Frigidaire Washer
11	131276900 Frigidaire Washer Spring
12	5304505175 Frigidaire Plate
13	5304533999 Frigidaire Shell
14	5304505117 Frigidaire Washer Spring
15	131303900 Frigidaire Screw
16	5304505337 Frigidaire Drum Assembly
17	137263600 Frigidaire Washer Front-Load Tub Baffle
19	5304514803 Frigidaire Motor Assembly
20	131303500 Frigidaire Screw
21	5304522569 Frigidaire Seal
22	5304505157 Frigidaire Rear Drum Assembly with Bearing
25	134616701 Frigidaire Belt
26	5304514822 Frigidaire Pulley
29	BOLT
30	SHOCK ABSORBER
30B	137412601 Frigidaire Washer Shock Absorber
31	131268300 Frigidaire Leveling Pin
32	134363200 Frigidaire Bracket
35	5304505209 Frigidaire Drain Pump
40	5304505208 Frigidaire Diaphragm
42	134737300 Frigidaire Clamp
43	5304535282 Frigidaire Air Chamber
45	137087500 Frigidaire Clamp
46	134261300 Frigidaire Clip
48	131306234 Frigidaire Clamp Pump
49	134616300 Frigidaire Washer Clamp
52	131202300 Frigidaire Screw
55A	137385100 Frigidaire Ring
55	137629209 Frigidaire Drain Hose
56	137003500 Frigidaire Cable Tie
57	134641100 Frigidaire Bracket
60	5304514802 Frigidaire NTC Assembly
