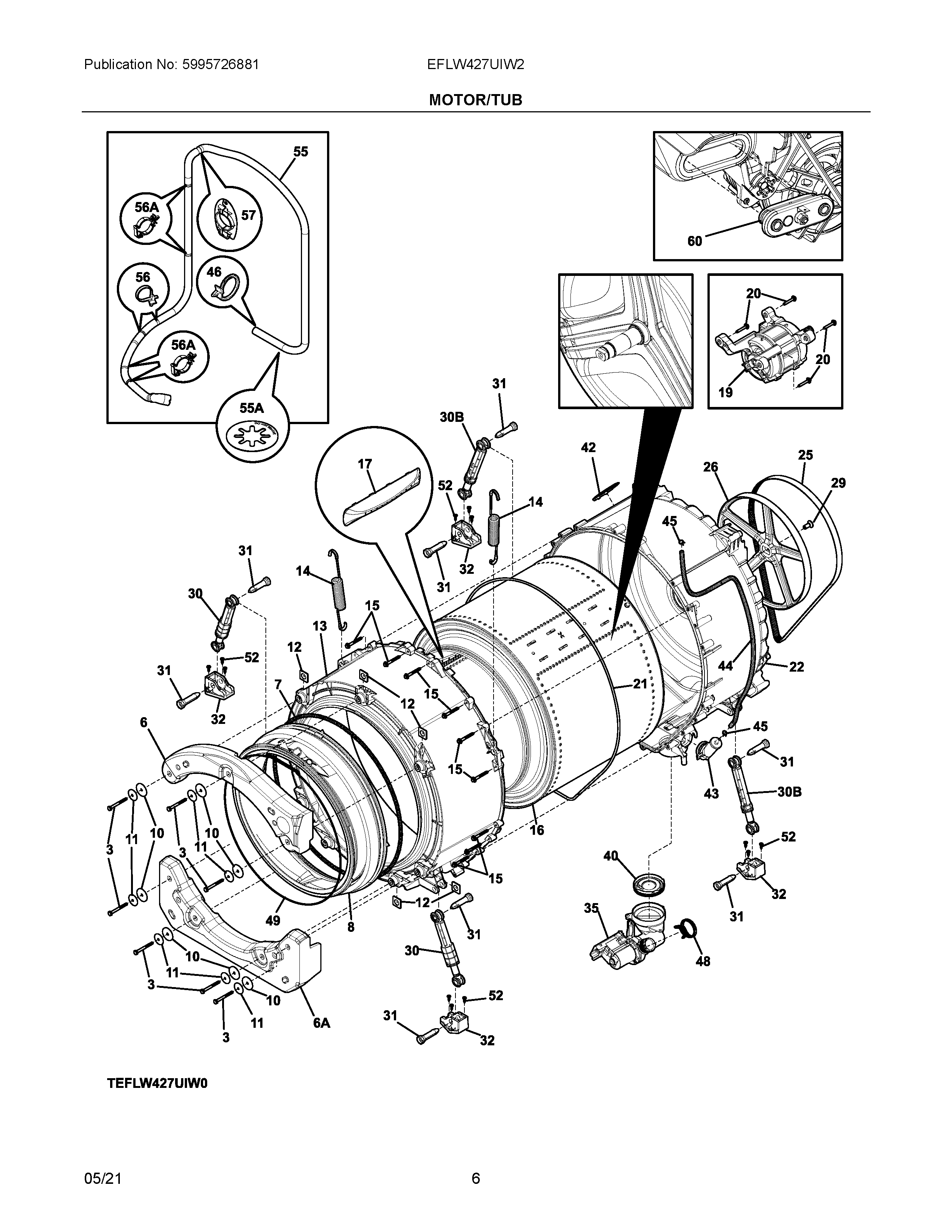

EFLW427UIW2 04 – MOTOR/TUB

EFLW427UIW2 04 – MOTOR/TUB

Written by

in

EFLW427UIW2 04 – MOTOR/TUB

Products

PositionProduct
NI131168200 Frigidaire Dryer Screw
NIA137110800 Frigidaire Cushion
NI5304464772 Frigidaire Refrigerator Wire Tie
35304505159 Frigidaire Screw
6ACOUNTERWEIGHT, BOTTOM
65304514819 Frigidaire Counterweight
7134616200 Frigidaire Washer Spring Assembly
85304535847 Frigidaire Bellows Assembly
105304505212 Frigidaire Washer
11131276900 Frigidaire Washer Spring
125304505175 Frigidaire Plate
135304533999 Frigidaire Shell
145304505117 Frigidaire Washer Spring
15131303900 Frigidaire Screw
165304505337 Frigidaire Drum Assembly
17137263600 Frigidaire Washer Front-Load Tub Baffle
195304514803 Frigidaire Motor Assembly
20131303500 Frigidaire Screw
215304522569 Frigidaire Seal
225304505157 Frigidaire Rear Drum Assembly with Bearing
25134616701 Frigidaire Belt
265304514822 Frigidaire Pulley
29BOLT
30SHOCK ABSORBER
30B137412601 Frigidaire Washer Shock Absorber
31131268300 Frigidaire Leveling Pin
32134363200 Frigidaire Bracket
355304505209 Frigidaire Drain Pump
405304505208 Frigidaire Diaphragm
42134737300 Frigidaire Clamp
435304535282 Frigidaire Air Chamber
45137087500 Frigidaire Clamp
46134261300 Frigidaire Clip
48131306234 Frigidaire Clamp Pump
49134616300 Frigidaire Washer Clamp
52131202300 Frigidaire Screw
55A137385100 Frigidaire Ring
55137629209 Frigidaire Drain Hose
56137003500 Frigidaire Cable Tie
57134641100 Frigidaire Bracket
605304514802 Frigidaire NTC Assembly
