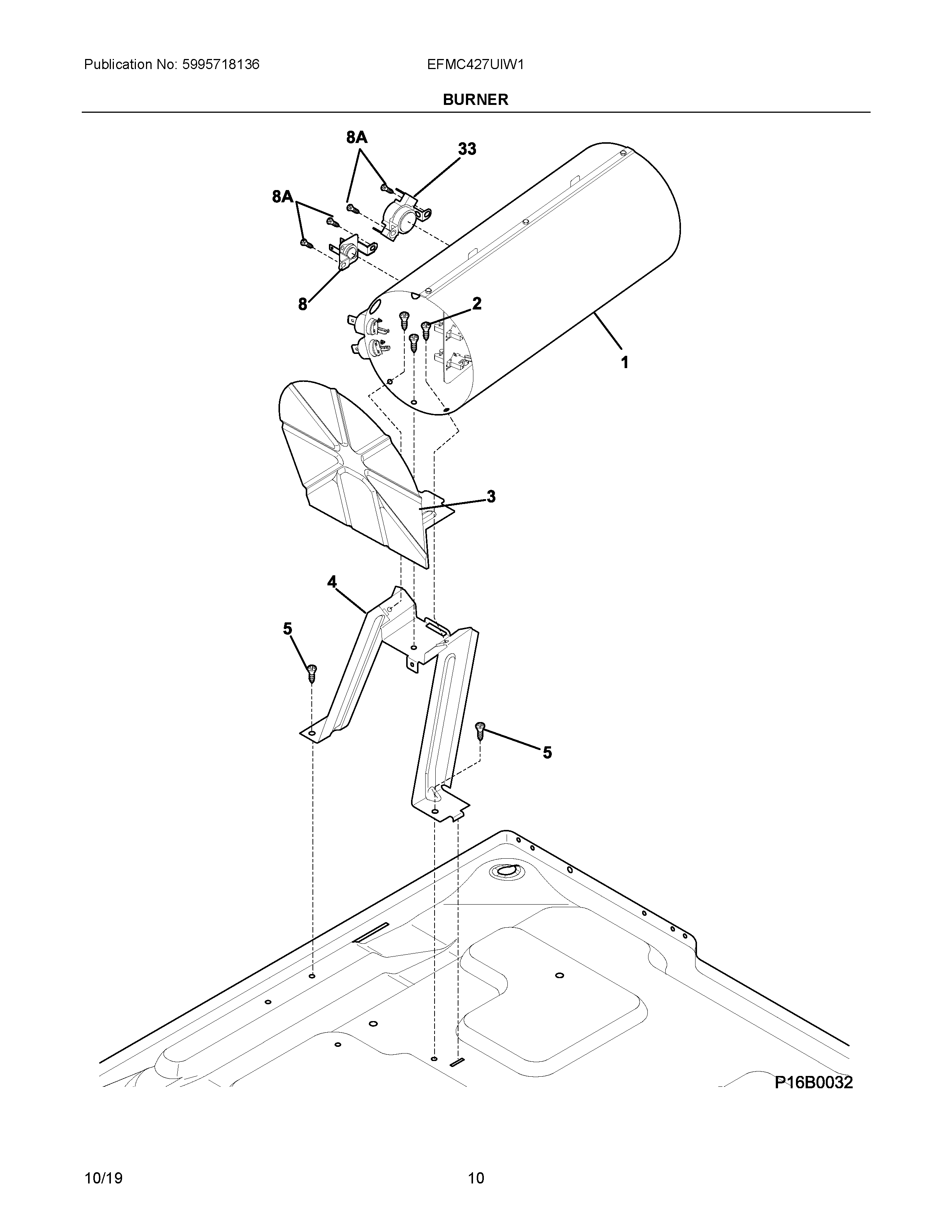

EFMC427UIW1 06 – BURNER

Written by

Products

Position	Product
1	HEATER
2	131168200 Frigidaire Dryer Screw
3	134692701 Frigidaire Shield
4	134713901 Frigidaire Bracket Assembly
5	131202300 Frigidaire Screw
8A	134935200 Frigidaire Screw
8	THERMAL LIMITER – GAS
33	SAFETY THERMSTAT
