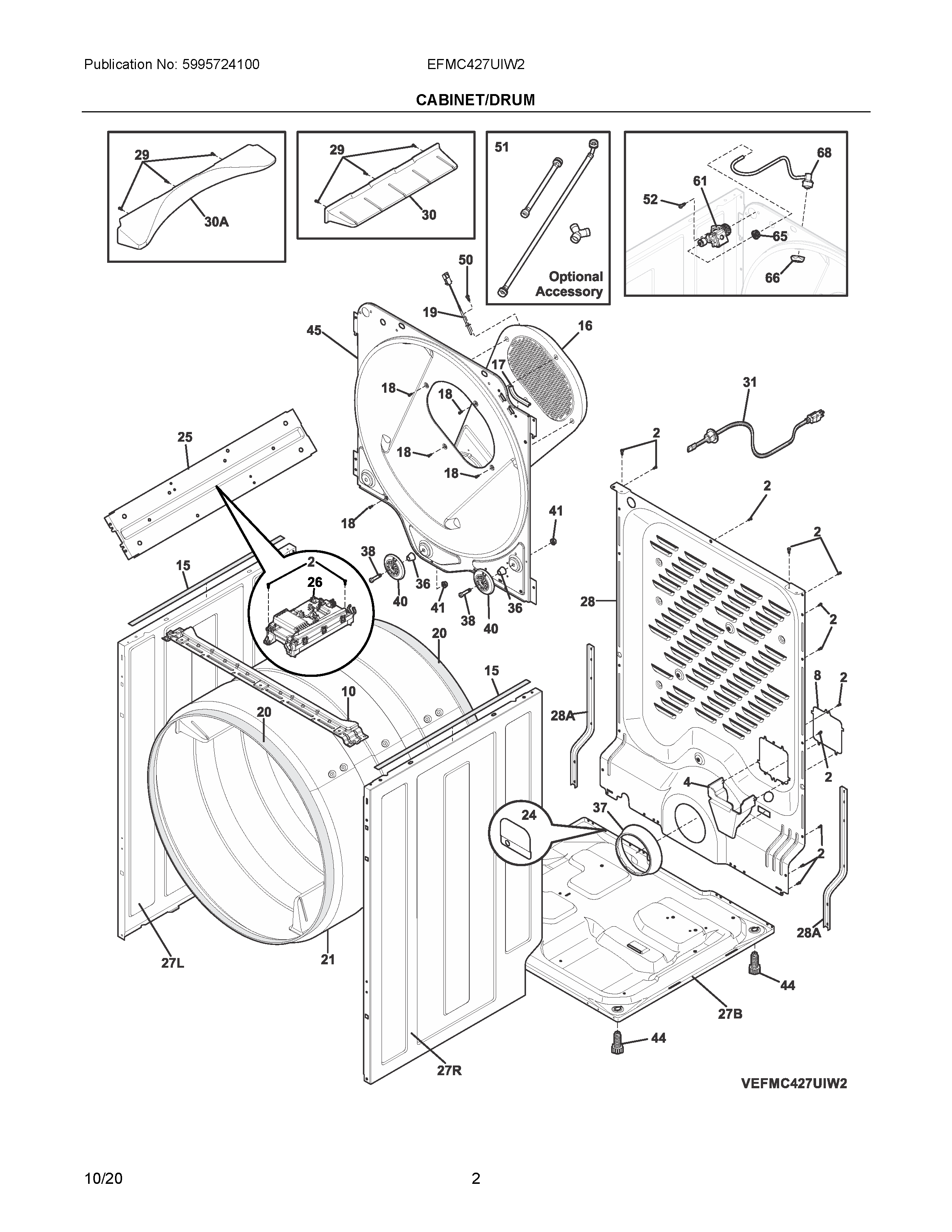

EFMC427UIW2 02 – CABINET/DRUM

Products

Position	Product
NIB	5308027429 Frigidaire Dryer High Temperature Adhesive
NIB	137150200 Frigidaire Terminal
NIA	5304506746 Frigidaire Shield
NIA	131205500 Frigidaire Screw
NI	BRACE, SIDE PANEL
NIA	5304500486 Frigidaire Seal
NIA	5304521443 Frigidaire Harness
NIC	131302800 Frigidaire Drum Vane Screw
NIB	134154100 Frigidaire Screw 10-32 x 0.375 Co
NIA	131202300 Frigidaire Screw
4	134792100 Frigidaire Bracket
8A	137578600 Frigidaire Cover
8	134694400 Frigidaire Cover
10	5304513567 Frigidaire Bracket
15	137031800 Frigidaire Cushion
16	5304513571 Frigidaire Duct Assembly
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
19	5304520302 Frigidaire Thermistor
20	5304499489 Frigidaire Washer Felt Seal
21	137610700 Frigidaire Drum
24	137537100 Frigidaire Cover
25	137567001 Frigidaire Bracket Assembly
26	MAIN BOARD
27R	134712796 Frigidaire Panel
27B	134690203 Frigidaire Base
27L	134712696 Frigidaire Panel
28	137560425 Frigidaire Panel
28A	137029801 Frigidaire Bracket Assembly
29	131205100 Frigidaire Screw
30	137610610 Frigidaire Vane
30A	VANE, MIXING, SMOOTH
31	5304505408 Frigidaire Cord
36	5304523154 Frigidaire Spacer
37	137553500 Frigidaire COVER
38	5304523151 Frigidaire Shaft
40	5304523152 Frigidaire Washer Wheel Roller
41	5304523153 Frigidaire Nut
44	134158001 Frigidaire Washer Leveling Leg
45	5304521407 Frigidaire Bulkhead
50	131243700 Frigidaire Screw
51	5304495002 Frigidaire Kit
52	137573900 Frigidaire Screw 1/4-14 X .375
61	LOW PROFILE MIST VALVE
64	5304529773 Frigidaire Nozzle Assembly
65	137017200 Frigidaire Grommet
