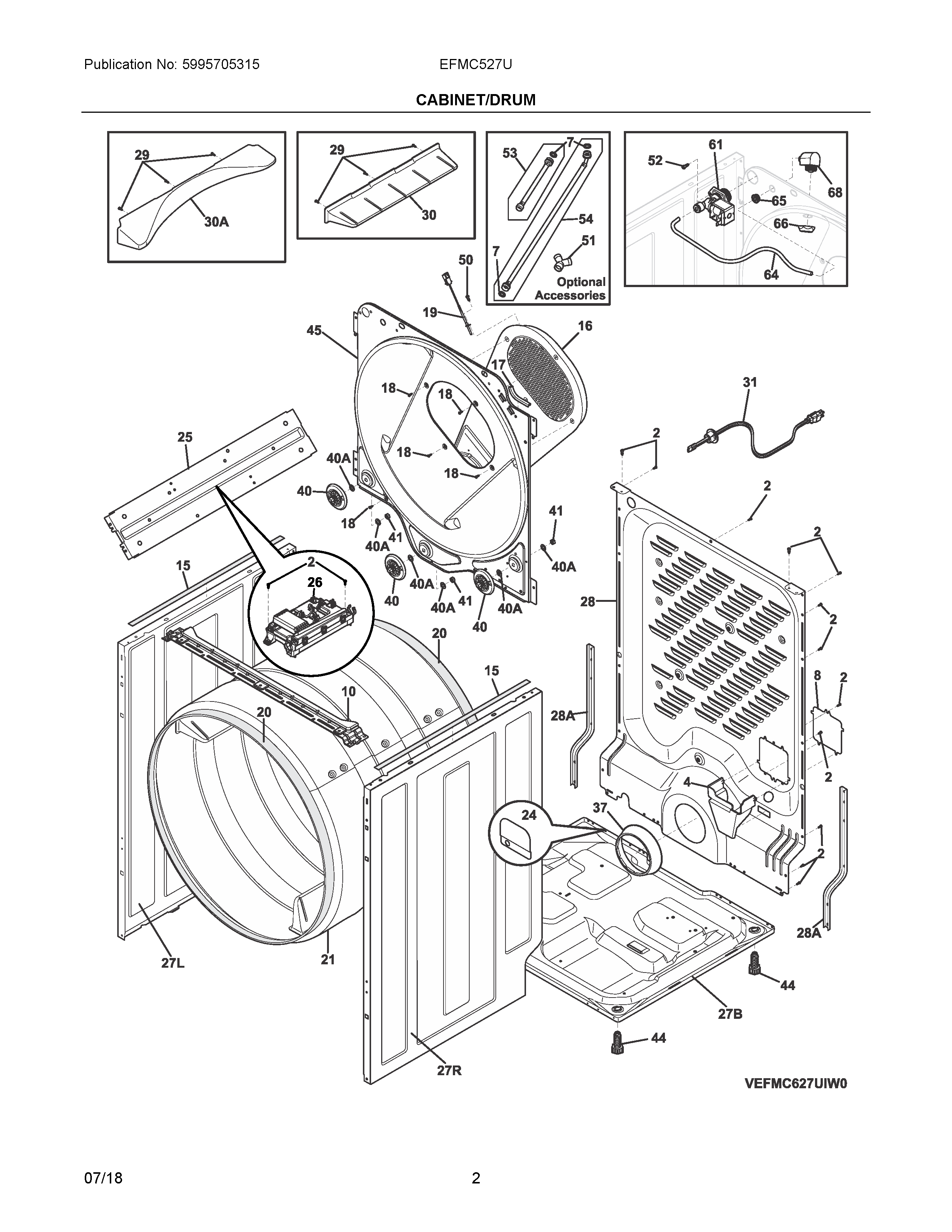

EFMC527UIW0 02 – CABINET/DRUM

EFMC527UIW0 02 – CABINET/DRUM

Written by

in

EFMC527UIW0 02 – CABINET/DRUM

Products

Position	Product
NIB	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	5304506746 Frigidaire Shield
NIA	131205500 Frigidaire Screw
NIA	134716200 Frigidaire Retainer
NIA	5304500486 Frigidaire Seal
NI	BRACE, SIDE PANEL
NIA	131302800 Frigidaire Drum Vane Screw
NIB	5304521235 Frigidaire Harness
NIA	131202300 Frigidaire Screw
NIB	134154100 Frigidaire Screw 10-32 x 0.375 Co
4	134792100 Frigidaire Bracket
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
8	137578600 Frigidaire Cover
10	5304513567 Frigidaire Bracket
15	137031800 Frigidaire Cushion
16	5304513571 Frigidaire Duct Assembly
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
19	5304520302 Frigidaire Thermistor
20	5304499489 Frigidaire Washer Felt Seal
21	137610700 Frigidaire Drum
24	137537100 Frigidaire Cover
25	137567001 Frigidaire Bracket Assembly
26	5304515407 Frigidaire Main Board
27B	134690203 Frigidaire Base
27L	134712696 Frigidaire Panel
27R	134712796 Frigidaire Panel
28	137560425 Frigidaire Panel
28A	137029801 Frigidaire Bracket Assembly
29	131205100 Frigidaire Screw
30	137610610 Frigidaire Vane
30A	VANE, MIXING, SMOOTH
31	5304505408 Frigidaire Cord
37	137553500 Frigidaire COVER
40	5304523155 Frigidaire Washer Kit
40A	134716700 Frigidaire Washer
41	134716800 Frigidaire Nut
44	134158001 Frigidaire Washer Leveling Leg
45	5304515047 Frigidaire Bulkhead Assembly
50	131243700 Frigidaire Screw
51	5304500709 Frigidaire Y Hose Adapter Fitting
52	137573900 Frigidaire Screw 1/4-14 X .375
53	137471800 Frigidaire Hose
54	5304503984 Frigidaire Kit Assembly
61	LOW PROFILE MIST VALVE
65	137017200 Frigidaire Grommet
66	5304529773 Frigidaire Nozzle Assembly
