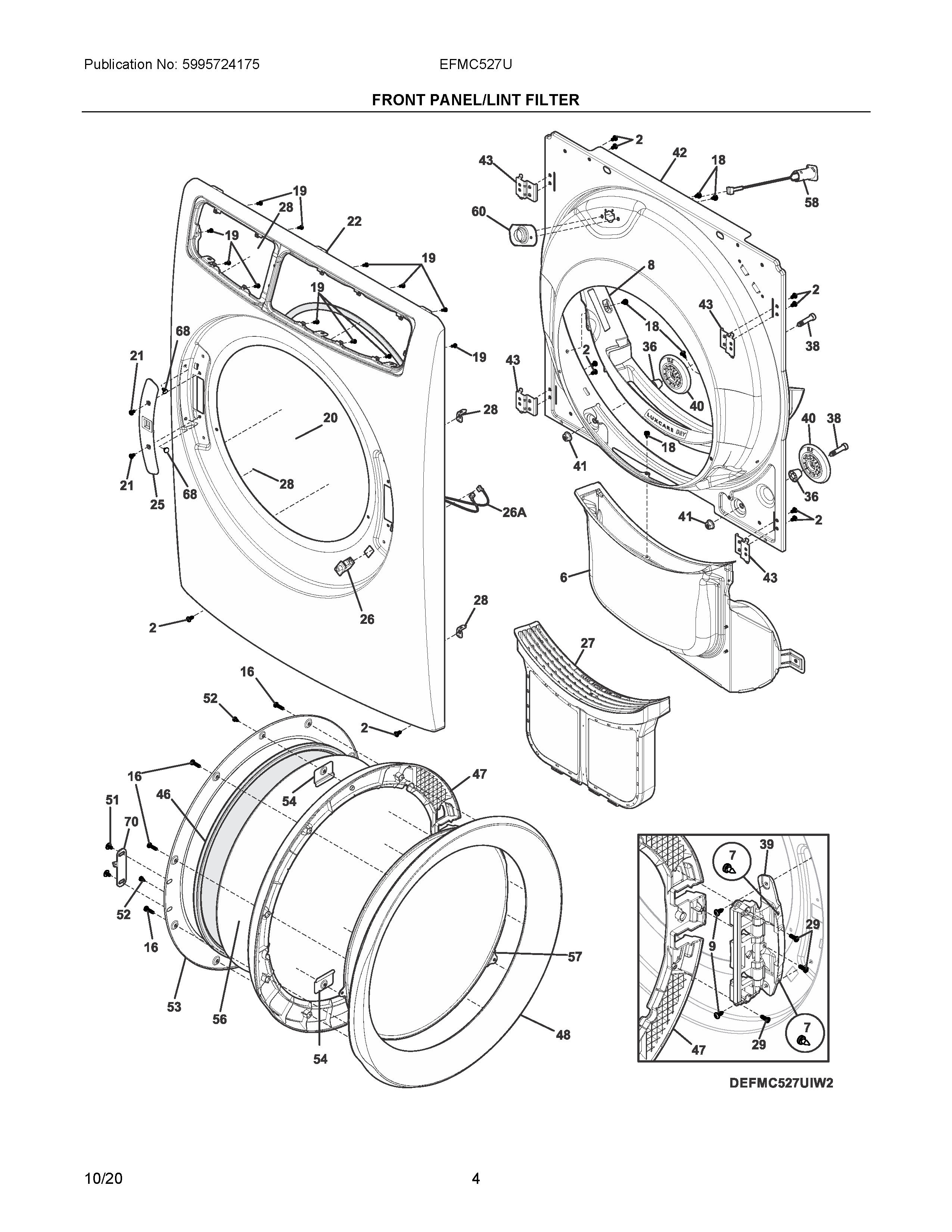

EFMC527UIW2 03 – FRONT PANEL/LINT FILTER

EFMC527UIW2 03 – FRONT PANEL/LINT FILTER

Written by

in

EFMC527UIW2 03 – FRONT PANEL/LINT FILTER

Products

PositionProduct
NIA5308027429 Frigidaire Dryer High Temperature Adhesive
NIA5304513601 Frigidaire Screw
65304521401 Frigidaire Duct Assembly
7137285100 Frigidaire Screw
85304534450 Frigidaire Dryer Duct Filter and Lint Screen Kit
95304505259 Frigidaire Screw
16137087000 Frigidaire Screw
18131168200 Frigidaire Dryer Screw
195304505441 Frigidaire Screw
205304505111 Frigidaire Gasket
21131302800 Frigidaire Drum Vane Screw
225304513563 Frigidaire Panel
255304513568 Frigidaire Latch Assembly
26A5304505258 Frigidaire Harness
26134813663 Frigidaire Washer Switch
27FILTER ASSEMBLY, LINT, CLAMSHELL
28137034500 Frigidaire Clip
29131205100 Frigidaire Screw
365304523154 Frigidaire Spacer
385304523151 Frigidaire Shaft
395304505133 Frigidaire Assembly Hinge
405304523152 Frigidaire Washer Wheel Roller
415304523153 Frigidaire Nut
425304521387 Frigidaire Bulkhead
435304505118 Frigidaire Bracket
465304505010 Frigidaire Gasket
475304505115 Frigidaire Frame
485304505388 Frigidaire Frame
51137241000 Frigidaire Screw
52131243700 Frigidaire Screw
535304504995 Frigidaire Inner Door
545304505012 Frigidaire Clamp
565304504999 Frigidaire Dryer Door Glass
575304505119 Frigidaire Shield Assembly
585304521399 Frigidaire Lamp Assembly
605304521476 Frigidaire Bracket Assembly
68134742000 Frigidaire Plug
705304532444 Frigidaire Striker
