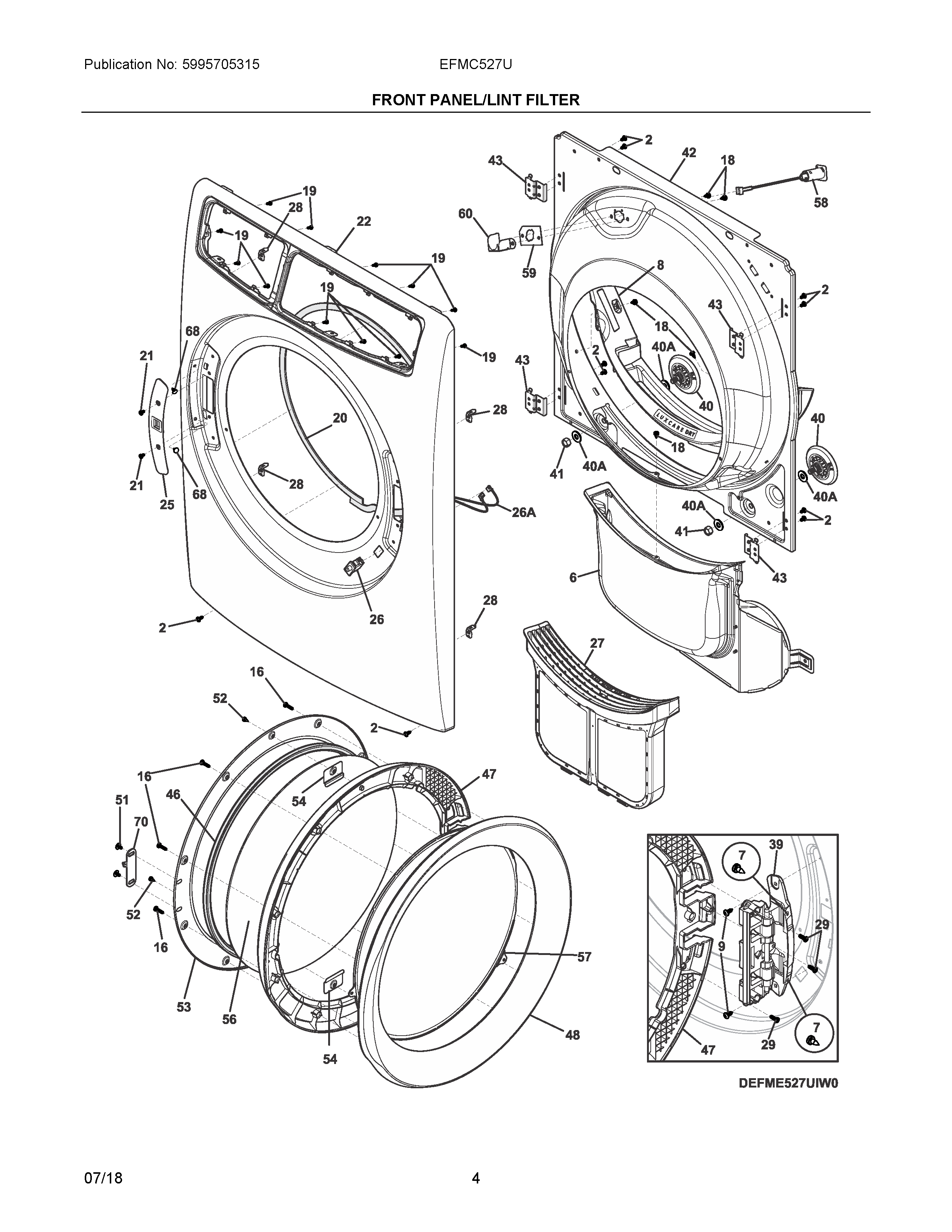

EFMC527UTT0 03 – FRONT PANEL/LINT FILTER

EFMC527UTT0 03 – FRONT PANEL/LINT FILTER

Written by

in

EFMC527UTT0 03 – FRONT PANEL/LINT FILTER

Products

PositionProduct
NIA5308027429 Frigidaire Dryer High Temperature Adhesive
NIA134716200 Frigidaire Retainer
NIA5304513601 Frigidaire Screw
65304505353 Frigidaire Duct Assembly
7137285100 Frigidaire Screw
85304534450 Frigidaire Dryer Duct Filter and Lint Screen Kit
95304505259 Frigidaire Screw
16137087000 Frigidaire Screw
18131168200 Frigidaire Dryer Screw
195304505441 Frigidaire Screw
205304505111 Frigidaire Gasket
21131302800 Frigidaire Drum Vane Screw
225304515428 Frigidaire Panel
255304513568 Frigidaire Latch Assembly
26A5304505258 Frigidaire Harness
26134813664 Frigidaire Switch
27FILTER ASSEMBLY, LINT, CLAMSHELL
28137034500 Frigidaire Clip
29131205100 Frigidaire Screw
395304505133 Frigidaire Assembly Hinge
405304523155 Frigidaire Washer Kit
40A134716700 Frigidaire Washer
41134716800 Frigidaire Nut
425304505121 Frigidaire Bulkhead
435304505118 Frigidaire Bracket
465304505010 Frigidaire Gasket
475304505115 Frigidaire Frame
485304505388 Frigidaire Frame
51137241000 Frigidaire Screw
52131243700 Frigidaire Screw
535304504995 Frigidaire Inner Door
545304505012 Frigidaire Clamp
565304504999 Frigidaire Dryer Door Glass
575304505119 Frigidaire Shield Assembly
585304521399 Frigidaire Lamp Assembly
595304505406 Frigidaire Gasket
60137611700 Frigidaire Bracket Dishwasher
68134742002 Frigidaire Plug
705304532444 Frigidaire Striker
