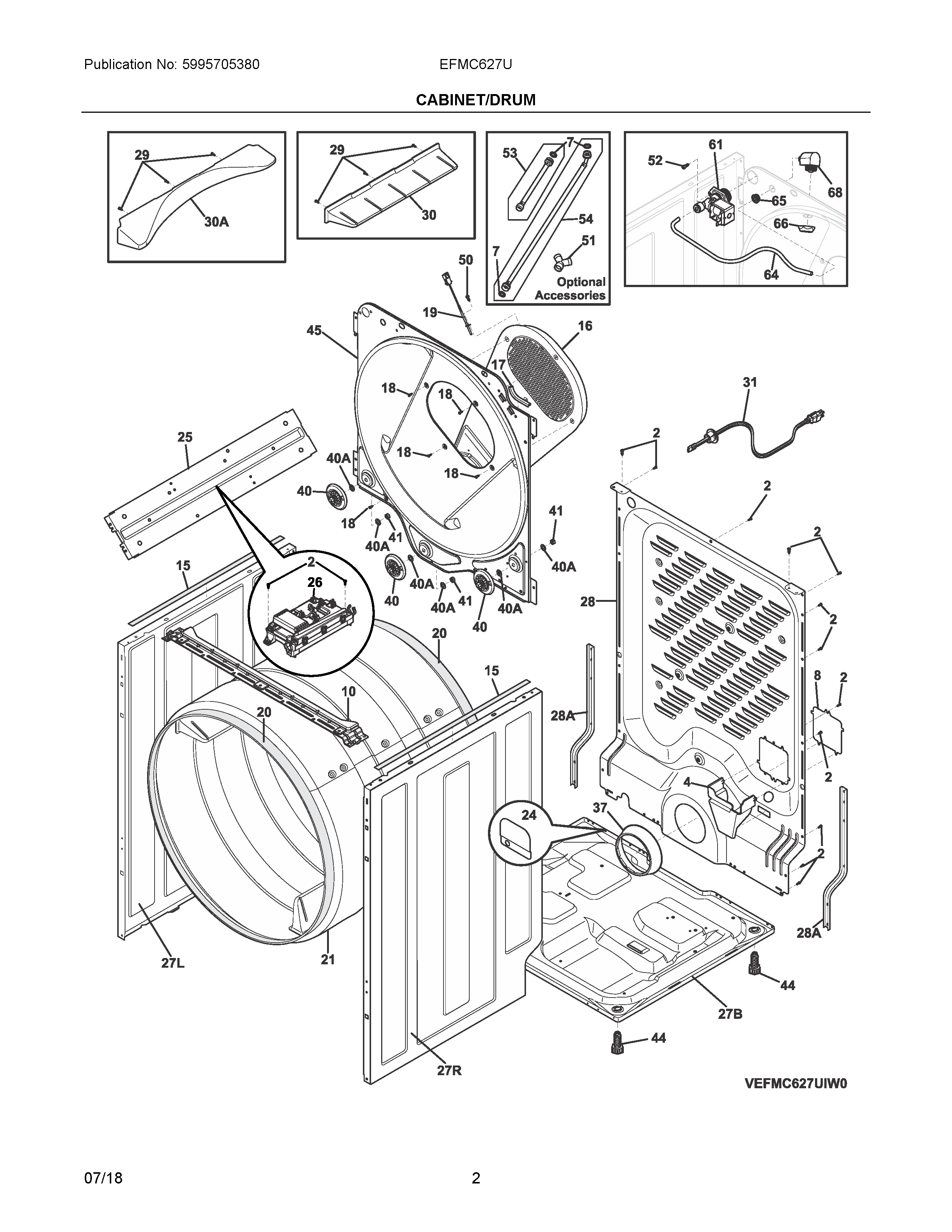

EFMC627UIW0 02 – CABINET/DRUM

EFMC627UIW0 02 – CABINET/DRUM

EFMC627UIW0 02 – CABINET/DRUM

Products

PositionProduct
NIB5308027429 Frigidaire Dryer High Temperature Adhesive
NIA5304506746 Frigidaire Shield
NIA131205500 Frigidaire Screw
NIA134716200 Frigidaire Retainer
NIA5304521235 Frigidaire Harness
NIBRACE, SIDE PANEL
NIB131302800 Frigidaire Drum Vane Screw
NIA5304500486 Frigidaire Seal
NIA131202300 Frigidaire Screw
NIB134154100 Frigidaire Screw 10-32 x 0.375 Co
4134792100 Frigidaire Bracket
75303161296 Frigidaire Washer-Inlet Hose (1Piece)
8137578600 Frigidaire Cover
105304513567 Frigidaire Bracket
15137031800 Frigidaire Cushion
165304513571 Frigidaire Duct Assembly
17134792900 Frigidaire Protector
18131168200 Frigidaire Dryer Screw
195304520302 Frigidaire Thermistor
205304499489 Frigidaire Washer Felt Seal
21137610710 Frigidaire Drum Assembly
24137537100 Frigidaire Cover
25137567001 Frigidaire Bracket Assembly
265304513547 Frigidaire Main Board
27B134690203 Frigidaire Base
27R134712796 Frigidaire Panel
27L134712696 Frigidaire Panel
28137560425 Frigidaire Panel
28A137029801 Frigidaire Bracket Assembly
29131205100 Frigidaire Screw
30AVANE, DRUM, MIXING
30137610600 Frigidaire Vane
315304505408 Frigidaire Cord
37137553500 Frigidaire COVER
40A134716700 Frigidaire Washer
405304523155 Frigidaire Washer Kit
41134716800 Frigidaire Nut
44134158001 Frigidaire Washer Leveling Leg
455304515047 Frigidaire Bulkhead Assembly
50131243700 Frigidaire Screw
515304500709 Frigidaire Y Hose Adapter Fitting
52137573900 Frigidaire Screw 1/4-14 X .375
53137471800 Frigidaire Hose
545304503984 Frigidaire Kit Assembly
61LOW PROFILE MIST VALVE
65137017200 Frigidaire Grommet
665304529773 Frigidaire Nozzle Assembly
