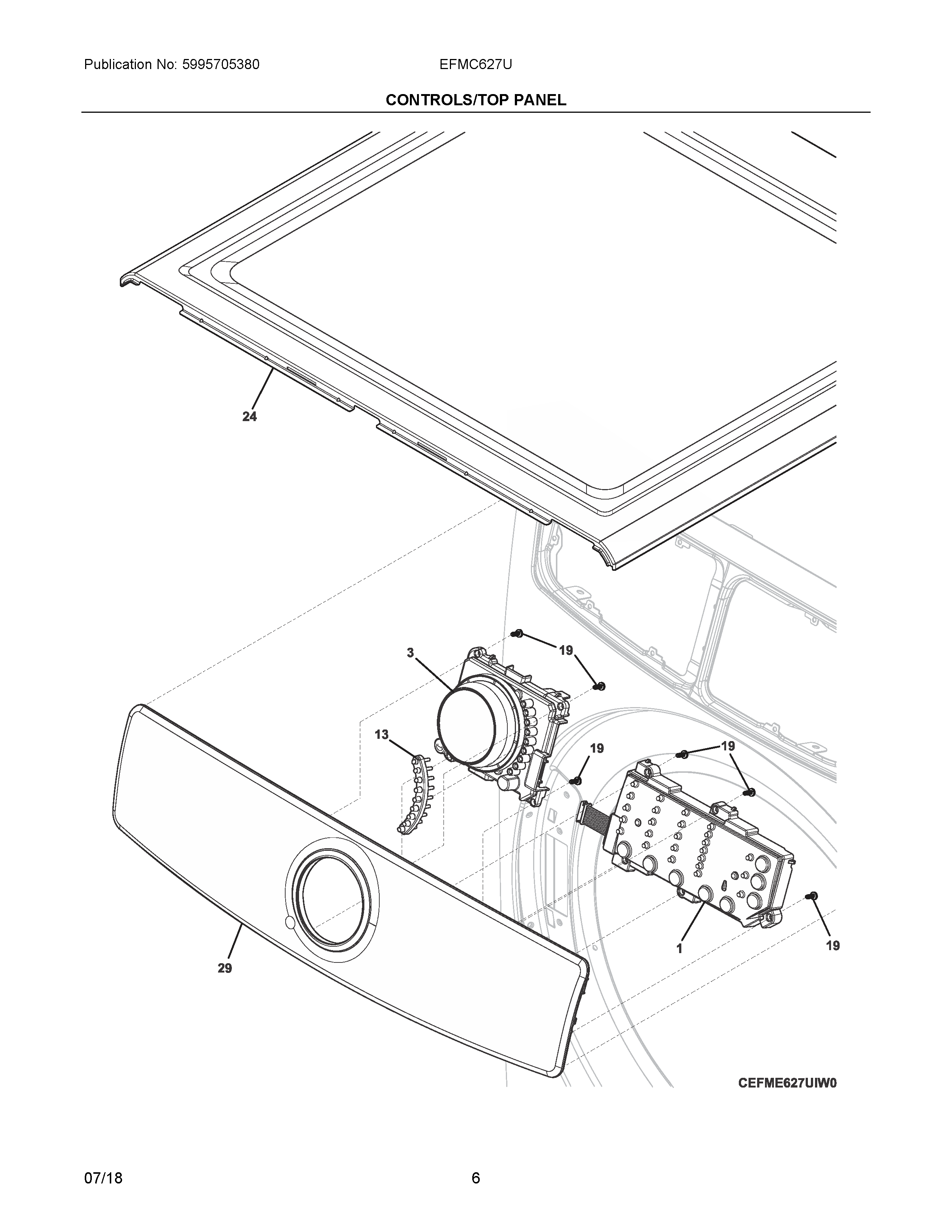

EFMC627UIW0 04 – CONTROLS/TOP PANEL

Written by

Products

Position	Product
NI	131168200 Frigidaire Dryer Screw
NI	5304521235 Frigidaire Harness
1	5304515232 Frigidaire Board Assembly
3	5304519638 Frigidaire Knob Assembly
13	DIFFUSER, LIGHT
19	5304505441 Frigidaire Screw
24	5304505081 Frigidaire Top Panel
29	5304515231 Frigidaire Console Assembly
