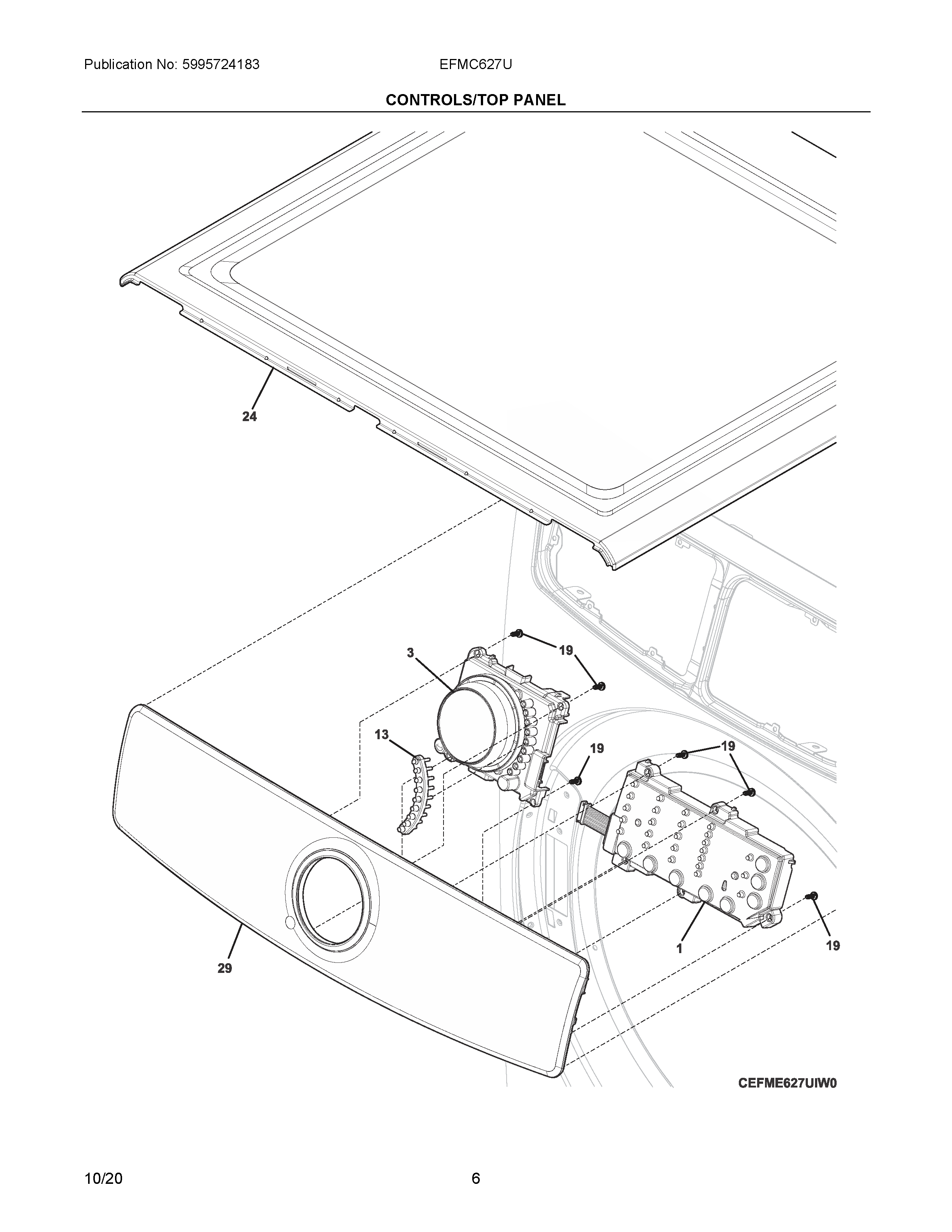

EFMC627UTT2 04 – CONTROLS/TOP PANEL

Written by

Products

Position	Product
NI	131168200 Frigidaire Dryer Screw
NI	137150200 Frigidaire Terminal
NI	5304521235 Frigidaire Harness
1	5304521513 Frigidaire Board Assembly
3	5304521447 Frigidaire Assembly-Knob
13	DIFFUSER, LIGHT
19	5304505441 Frigidaire Screw
24	5304505082 Frigidaire Top Panel
29	5304515231 Frigidaire Console Assembly
