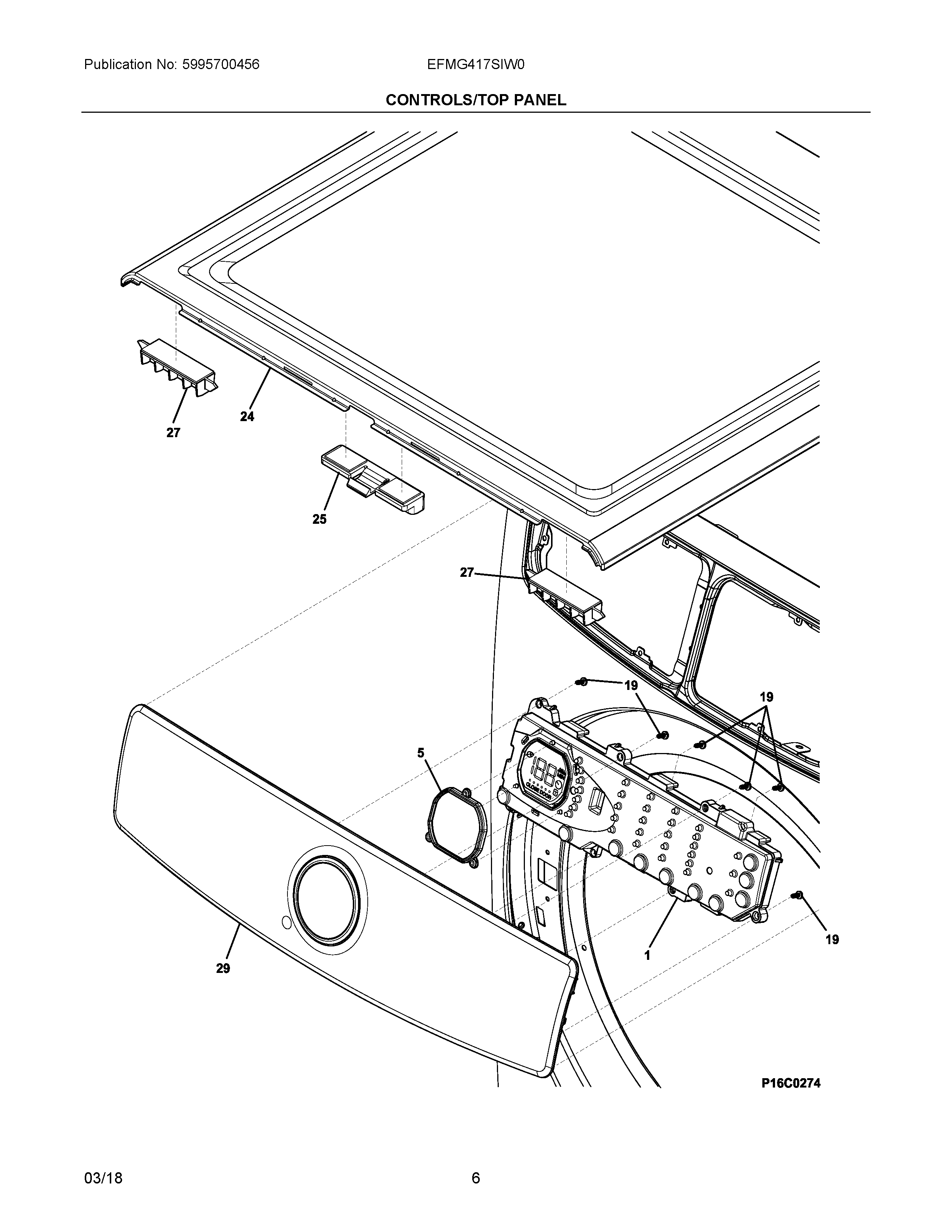

EFMG417SIW0 04 – CONTROLS/TOP PANEL

EFMG417SIW0 04 – CONTROLS/TOP PANEL

Written by

in

EFMG417SIW0 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NIA134926600 Frigidaire Damper
NI131168200 Frigidaire Dryer Screw
NI5304505250 Frigidaire Harness
15304508542 Frigidaire Board Assembly
55304505345 Frigidaire Seal
195304505441 Frigidaire Screw
245304505081 Frigidaire Top Panel
255304505357 Frigidaire Clip
27BLOCK, TOP, (2), W/TAPE
29CONSOLE ASSEMBLY, W/OVERLAY
