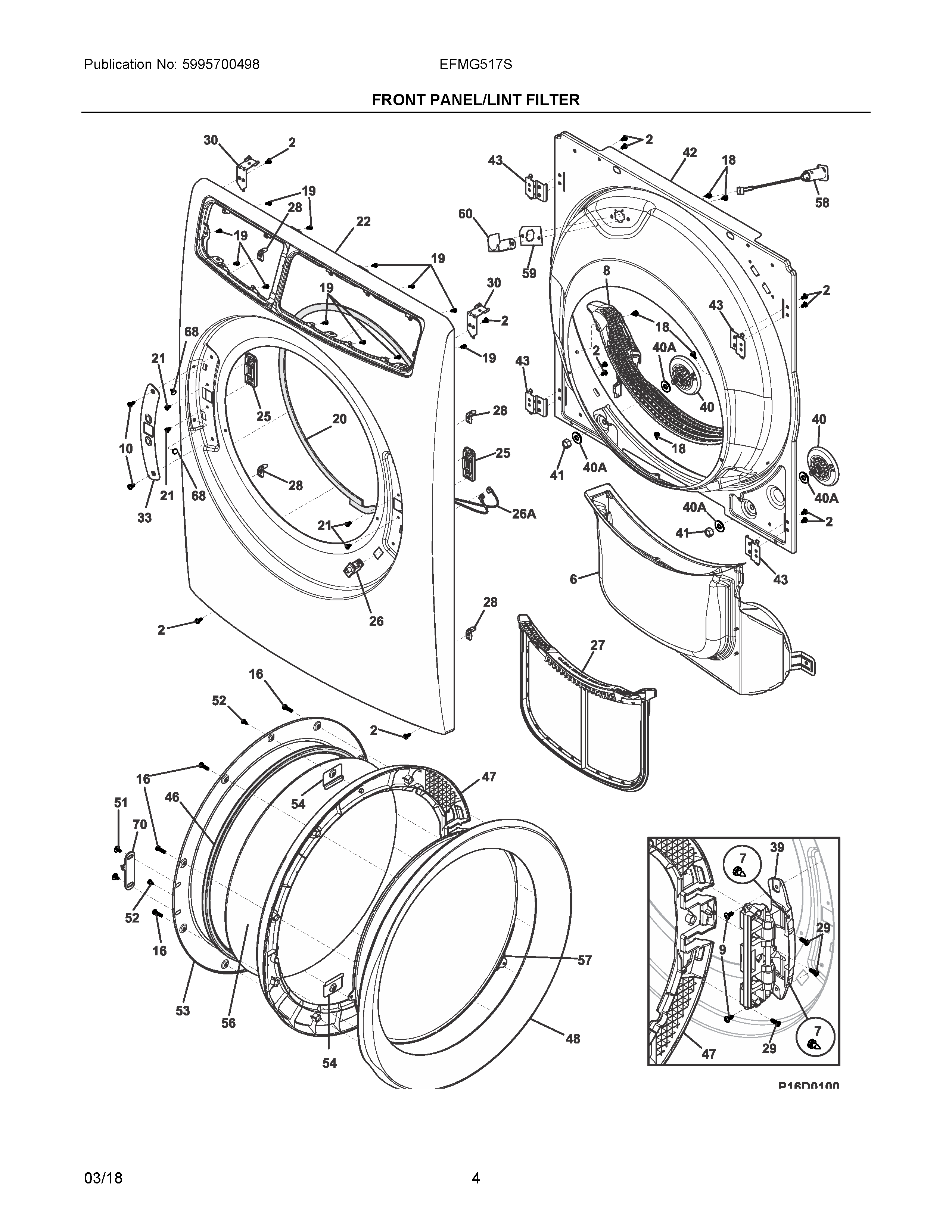

EFMG517SIW0 03 – FRONT PANEL/LINT FILTER

Products

Position	Product
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	WCI 5304505251
NIA	134716200 Frigidaire Retainer
6	5304505353 Frigidaire Duct Assembly
7	137285100 Frigidaire Screw
8	5304505136 Frigidaire Air Grille Assembly
9	5304505259 Frigidaire Screw
10	131302800 Frigidaire Drum Vane Screw
16	137087000 Frigidaire Screw
18	131168200 Frigidaire Dryer Screw
19	5304505441 Frigidaire Screw
20	5304505111 Frigidaire Gasket
21	SCREW, PAN HEAD, #8-16X.3125, QUDREX
22	5304505095 Frigidaire Panel
25	5304505317 Frigidaire Latch
26	134813600 Frigidaire Dryer Door Switch
26A	5304505258 Frigidaire Harness
27	5304511512 Frigidaire Dryer Lint Filter
28	137034500 Frigidaire Clip
29	131205100 Frigidaire Screw
30	5304505085 Frigidaire Bracket
33	5304505011 Frigidaire Cover Assembly
39	5304505133 Frigidaire Assembly Hinge
40	5304523155 Frigidaire Washer Kit
40A	134716700 Frigidaire Washer
41	134716800 Frigidaire Nut
42	5304505122 Frigidaire Bulkhead
43	5304505118 Frigidaire Bracket
46	5304505010 Frigidaire Gasket
47	5304505115 Frigidaire Frame
48	5304505388 Frigidaire Frame
51	137241000 Frigidaire Screw
52	131243700 Frigidaire Screw
53	5304504995 Frigidaire Inner Door
54	5304505012 Frigidaire Clamp
56	5304504999 Frigidaire Dryer Door Glass
57	5304505119 Frigidaire Shield Assembly
58	5304521399 Frigidaire Lamp Assembly
59	5304505406 Frigidaire Gasket
60	137611700 Frigidaire Bracket Dishwasher
68	134742000 Frigidaire Plug
70	5304532444 Frigidaire Striker
