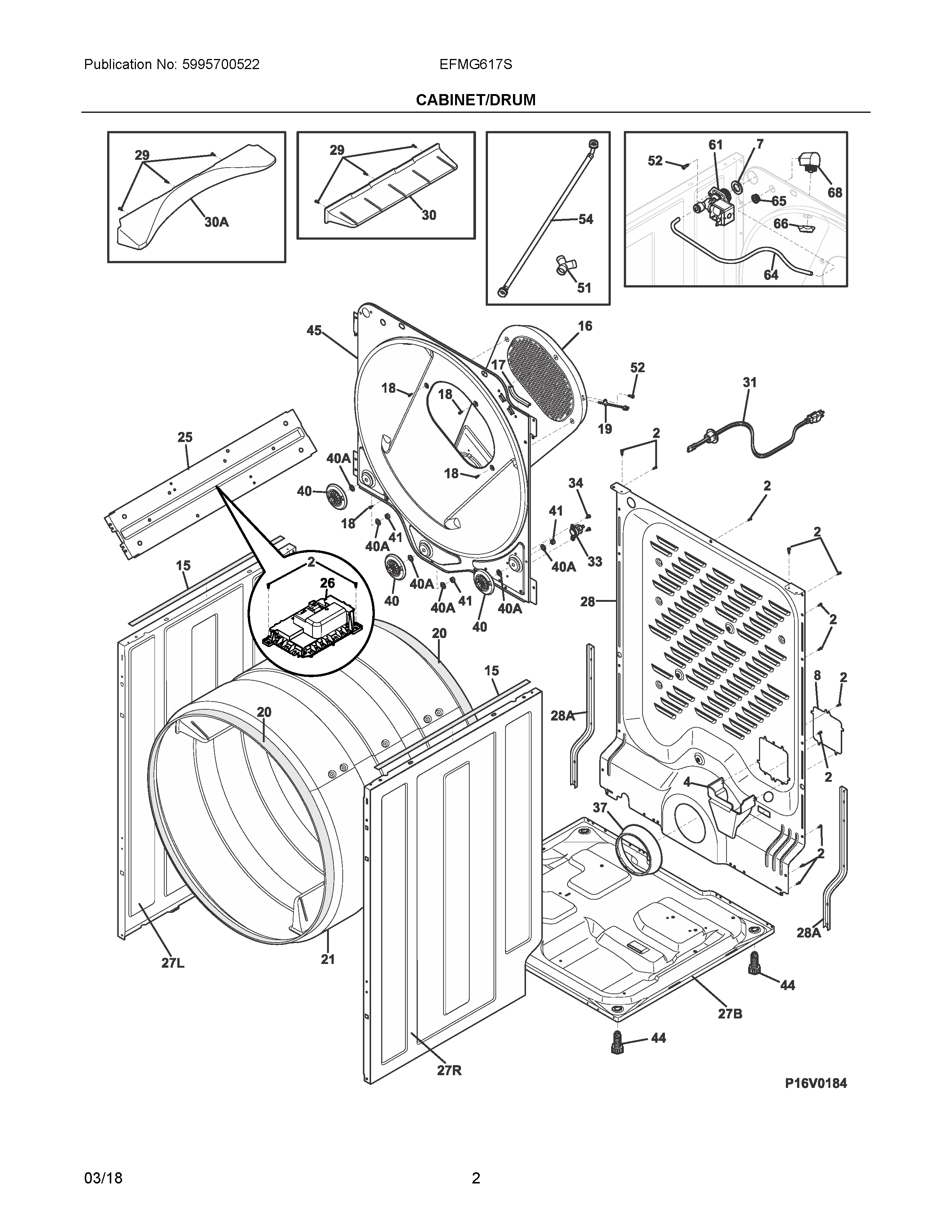

EFMG617SIW0 02 – CABINET/DRUM

EFMG617SIW0 02 – CABINET/DRUM

Written by

in

EFMG617SIW0 02 – CABINET/DRUM

Products

PositionProduct
NIB5308027429 Frigidaire Dryer High Temperature Adhesive
NIA134716200 Frigidaire Retainer
NIA5304506746 Frigidaire Shield
NIAWCI 137360810
NIBRACE, SIDE PANEL
NIB134926600 Frigidaire Damper
NIA5304500486 Frigidaire Seal
NIB131302800 Frigidaire Drum Vane Screw
NIA5304505250 Frigidaire Harness
NIB134154100 Frigidaire Screw 10-32 x 0.375 Co
NIA131202300 Frigidaire Screw
4134792100 Frigidaire Bracket
75303161296 Frigidaire Washer-Inlet Hose (1Piece)
8134694400 Frigidaire Cover
15137031800 Frigidaire Cushion
165304508449 Frigidaire Washer Dryer Air Duct
17134792900 Frigidaire Protector
18131168200 Frigidaire Dryer Screw
19134711200 Frigidaire Washer Thermistor
205304499489 Frigidaire Washer Felt Seal
21137610710 Frigidaire Drum Assembly
25137567001 Frigidaire Bracket Assembly
265304505540 Frigidaire Washer Main Board
27L134712696 Frigidaire Panel
27B134690203 Frigidaire Base
27R134712796 Frigidaire Panel
28A137029801 Frigidaire Bracket Assembly
28137560425 Frigidaire Panel
29131205100 Frigidaire Screw
30AVANE, DRUM, MIXING
30137610600 Frigidaire Vane
315304505407 Frigidaire Cord
33137515200 Frigidaire Limiter
34131243700 Frigidaire Screw
37137553500 Frigidaire COVER
40A134716700 Frigidaire Washer
405304523155 Frigidaire Washer Kit
41134716800 Frigidaire Nut
44134158001 Frigidaire Washer Leveling Leg
45BULKHEAD, PANEL, REAR
515304500709 Frigidaire Y Hose Adapter Fitting
52137573900 Frigidaire Screw 1/4-14 X .375
545304503984 Frigidaire Kit Assembly
61LOW PROFILE MIST VALVE
65137017200 Frigidaire Grommet
665304529773 Frigidaire Nozzle Assembly
