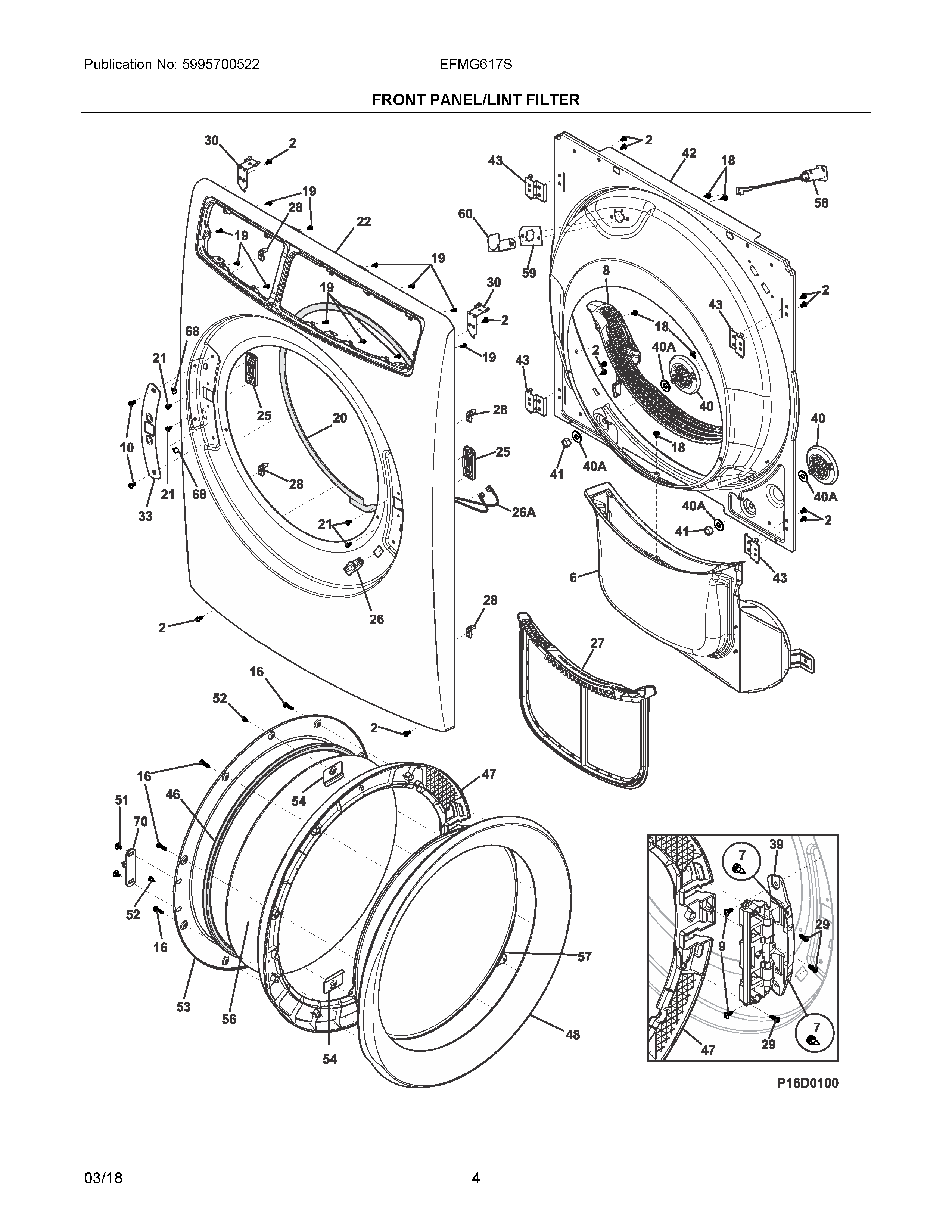

EFMG617SIW0 03 – FRONT PANEL/LINT FILTER

EFMG617SIW0 03 – FRONT PANEL/LINT FILTER

Written by

in

EFMG617SIW0 03 – FRONT PANEL/LINT FILTER

Products

PositionProduct
NIA5308027429 Frigidaire Dryer High Temperature Adhesive
NIAWCI 5304505251
NIA134716200 Frigidaire Retainer
65304505353 Frigidaire Duct Assembly
7137285100 Frigidaire Screw
85304505136 Frigidaire Air Grille Assembly
95304505259 Frigidaire Screw
10131302800 Frigidaire Drum Vane Screw
16137087000 Frigidaire Screw
18131168200 Frigidaire Dryer Screw
195304505441 Frigidaire Screw
205304505111 Frigidaire Gasket
21SCREW, PAN HEAD, #8-16X.3125, QUDREX
225304505095 Frigidaire Panel
255304505317 Frigidaire Latch
26134813600 Frigidaire Dryer Door Switch
26A5304505258 Frigidaire Harness
275304511512 Frigidaire Dryer Lint Filter
28137034500 Frigidaire Clip
29131205100 Frigidaire Screw
305304505085 Frigidaire Bracket
335304505011 Frigidaire Cover Assembly
395304505133 Frigidaire Assembly Hinge
405304523155 Frigidaire Washer Kit
40A134716700 Frigidaire Washer
41134716800 Frigidaire Nut
425304505122 Frigidaire Bulkhead
435304505118 Frigidaire Bracket
465304505010 Frigidaire Gasket
475304505115 Frigidaire Frame
485304505388 Frigidaire Frame
51137241000 Frigidaire Screw
52131243700 Frigidaire Screw
535304504995 Frigidaire Inner Door
545304505012 Frigidaire Clamp
565304504999 Frigidaire Dryer Door Glass
575304505119 Frigidaire Shield Assembly
585304521399 Frigidaire Lamp Assembly
595304505406 Frigidaire Gasket
60137611700 Frigidaire Bracket Dishwasher
68134742000 Frigidaire Plug
705304532444 Frigidaire Striker
