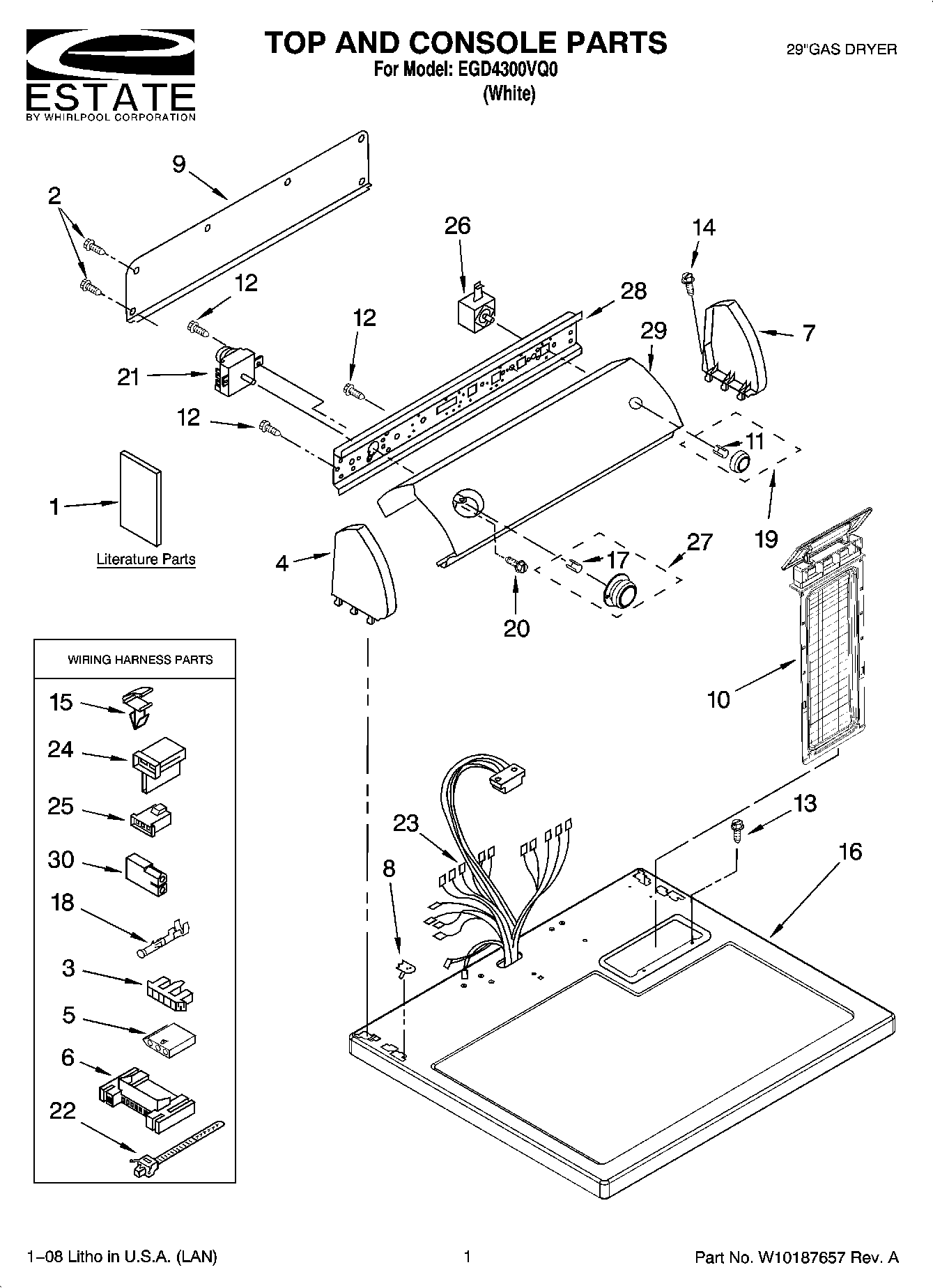

EGD4300VQ0 01 – TOP AND CONSOLE PARTS

EGD4300VQ0 01 – TOP AND CONSOLE PARTS

Written by

in

EGD4300VQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation Instructions (English)
1Wiring Diagram
1Sheet, Cycle Feature
1Guide, Use & Care
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP357213 Whirlpool Hinge Stopper
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top
17WP688805 Whirlpool Spring Clip
18WP94614 Whirlpool Terminal
19Knob, Push-To-Start
203400859 Whirlpool Screw
21WP8299764 Whirlpool Timer
22Tie, Cable
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WP3977456 Whirlpool Start Switch
27WP8557455 Whirlpool Knob Timer
28Bracket, Control
29Panel, Control
30Receptacle, Latching (2-Way) (Uses Terminal 94614)
