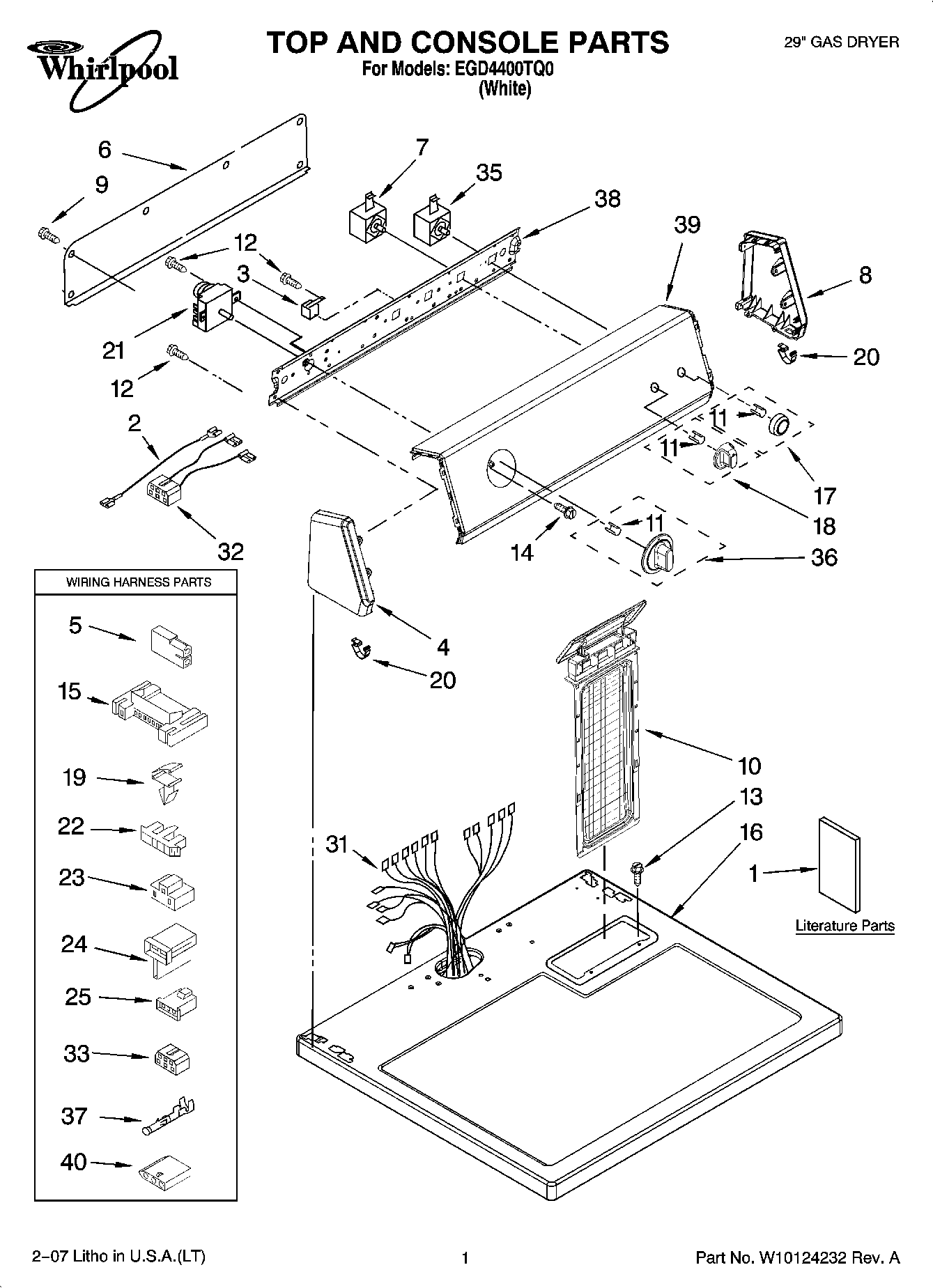

EGD4400TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Instructions, Installation
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Sheet, Cycle Feature
1	Use & Care Guide
1	WPL 677818
1	Wiring Diagram
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	WP3399639 Whirlpool Switch
8	Cap, End (R.H.)
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	WP8563663 Whirlpool Top Assembly
17	Knob, Push-To-Start
18	WPW10110063 Whirlpool Knob
19	WP3394427 Whirlpool Clip
20	WP8312709 Whirlpool Endcap Clip
21	WP8299765 Whirlpool Timer
22	Connector, Timer
23	3401144 Whirlpool Connector
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
31	8299878 Whirlpool Wire Harness
32	8539893 Whirlpool Wire Harness
33	Block, Disconnect
35	WP3398095 Whirlpool Dryer Start Relay
36	Timer-Knob Assembly
37	WP94614 Whirlpool Terminal
38	Bracket, Control
39	Panel, Control
40	3936144 Whirlpool Connector
