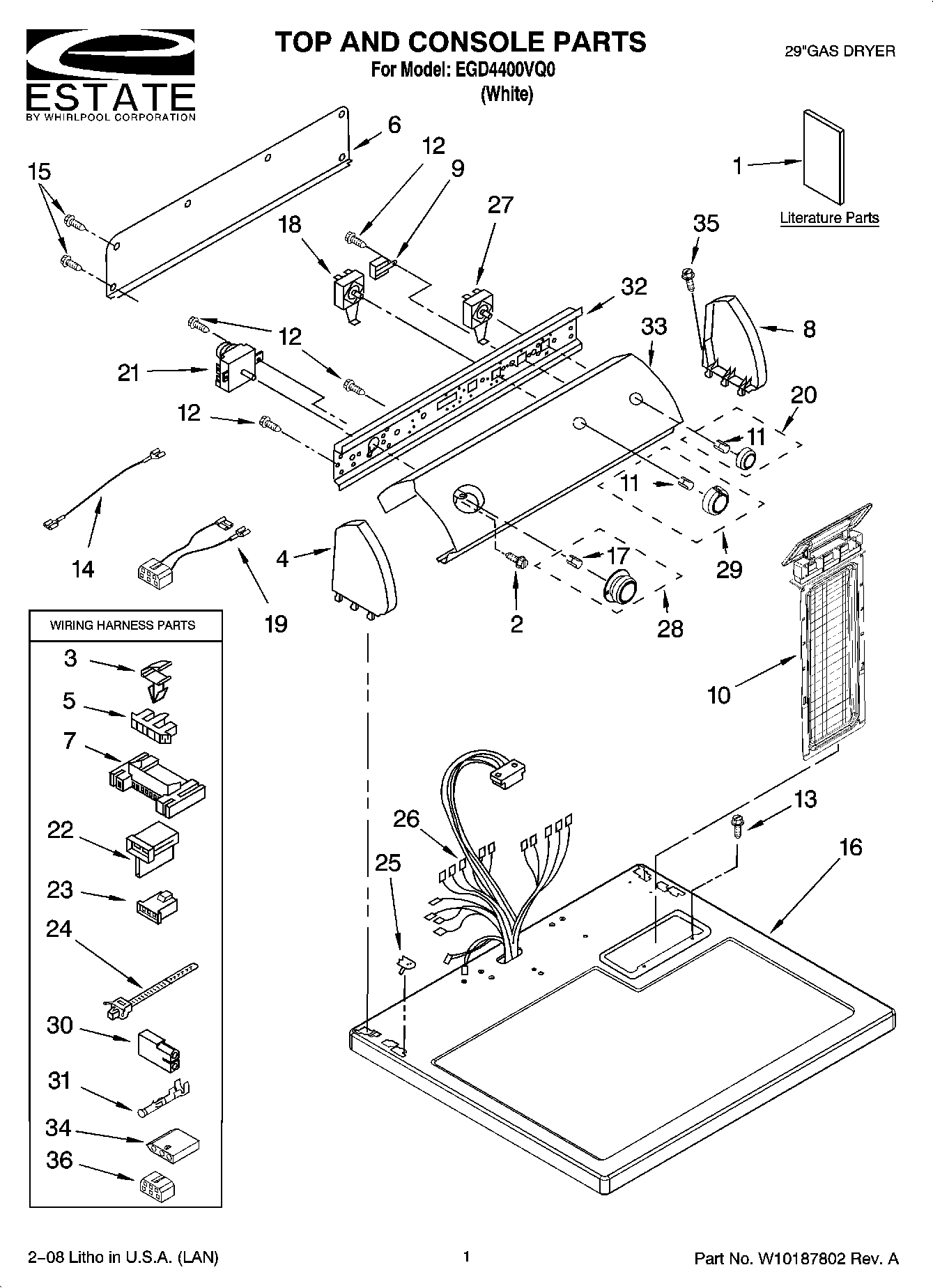

EGD4400VQ0 01 – TOP AND CONSOLE PARTS

EGD4400VQ0 01 – TOP AND CONSOLE PARTS

Written by

in

EGD4400VQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation Instructions (Spanish)
1Wiring Diagram
1Installation Instructions (English)
1Guide, Use & Care
1Sheet, Cycle Feature
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8279960 Whirlpool Endcap Assembly
9WP694419 Whirlpool Buzzer Adjuster
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper (Black)
15WP693995 Whirlpool Screw
16Top
17WP688805 Whirlpool Spring Clip
183405152 Whirlpool Switch Assembly
19Wire, Jumper (Guard On/Off)
20Knob, Push-To-Start
21WP3976584 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24Tie, Cable
25WP357213 Whirlpool Hinge Stopper
26Harness, Wiring
27WP3977456 Whirlpool Start Switch
28WP8557455 Whirlpool Knob Timer
29KNOB
30Receptacle, Latching (2-Way) (Uses Terminal 94614)
31WP94614 Whirlpool Terminal
32Bracket, Control
33Panel, Control
343936144 Whirlpool Connector
35WP388326 Whirlpool Screw
36Block, Disconnect
