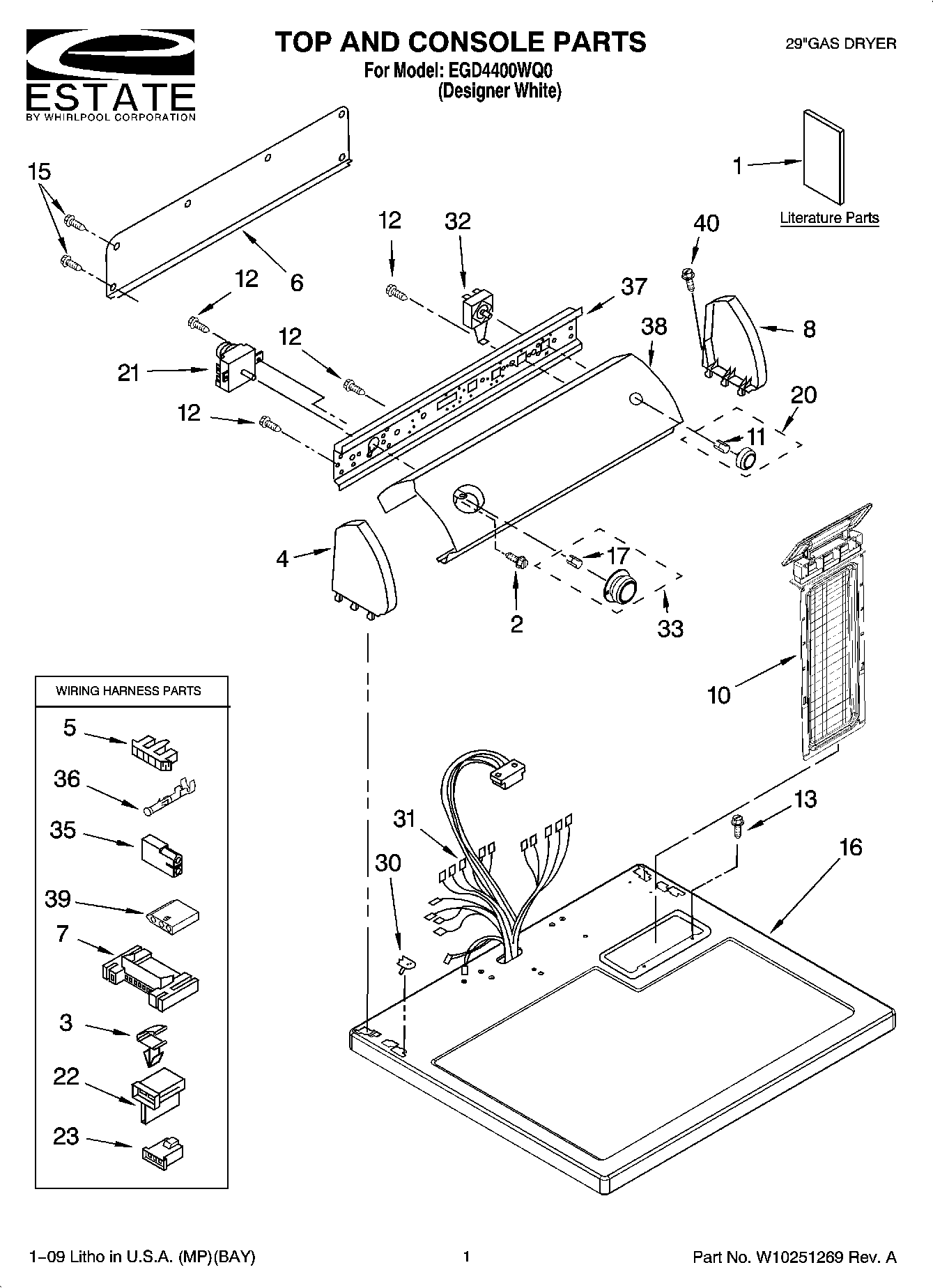

EGD4400WQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	Sheet, Cycle Feature
1	Guide, Use & Care
1	Installation Instructions (English)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	279960 Whirlpool Endcap Assembly
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top
17	WP688805 Whirlpool Spring Clip
20	Knob, Push-To-Start
21	WPW10185969 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
30	WP357213 Whirlpool Hinge Stopper
31	W10186074 Whirlpool Wire Harness
32	WP3977456 Whirlpool Start Switch
33	WP8557455 Whirlpool Knob Timer
35	Receptacle, Latching (2-Way) (Uses Terminal 94614)
36	WP94614 Whirlpool Terminal
37	Bracket, Control
38	Panel, Control
39	3936144 Whirlpool Connector
40	WP388326 Whirlpool Screw
