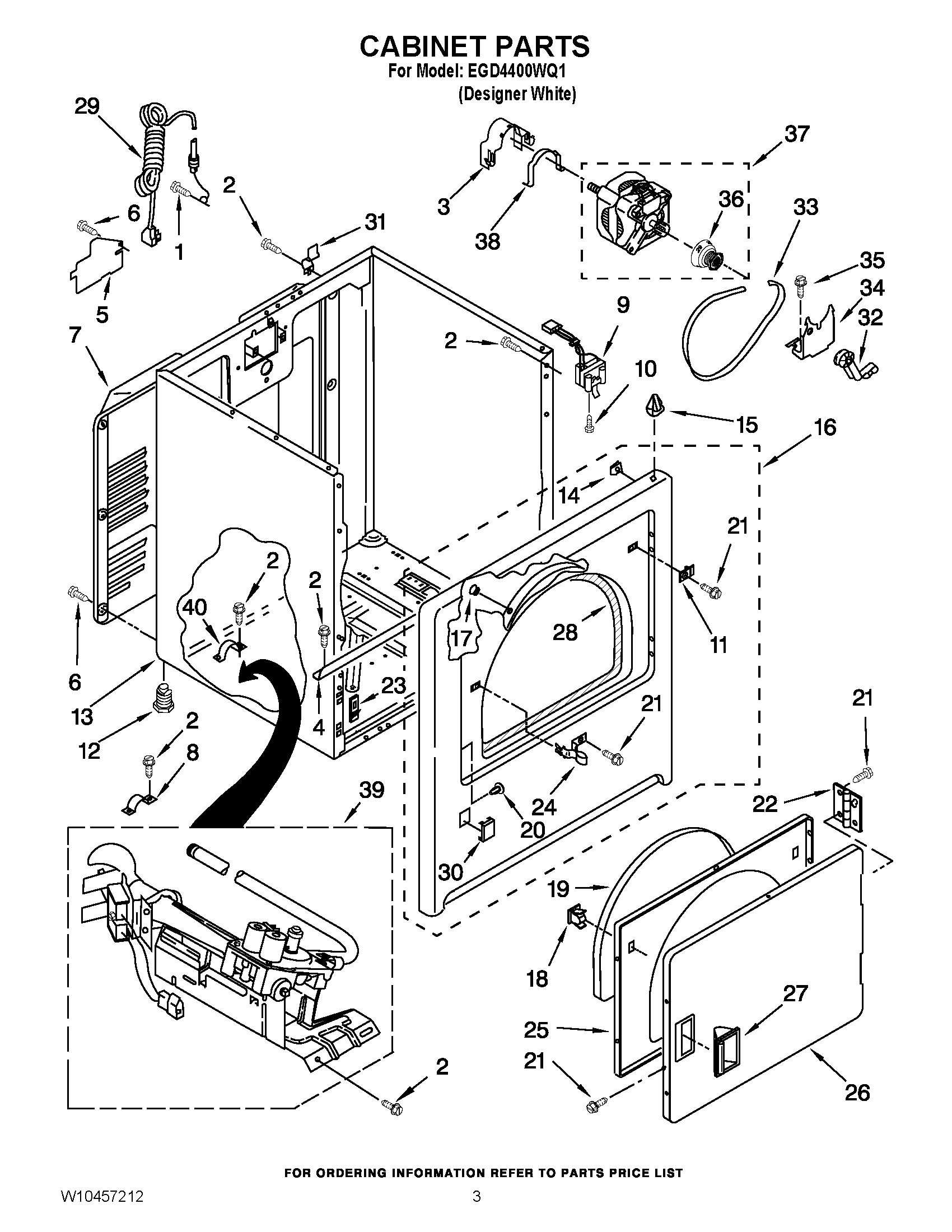

EGD4400WQ1 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10850756 Whirlpool Screw
2	WP3390631 Whirlpool Screw
3	WP3404162 Whirlpool Clamp
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	WP693995 Whirlpool Screw
7	280043 Whirlpool Rear Panel
8	341029 Whirlpool Clamp
9	SWITCH-DOOR DRYER
10	WP3395530 Whirlpool Screw
11	WP3403630 Whirlpool Plug
13	8533643 Whirlpool Dryer White Cabinet
14	WP98234 Whirlpool Nut
15	WP18776 Whirlpool Lock
16	W10248059 Whirlpool Panel
17	279220 Whirlpool Clip
18	WP3389441 Whirlpool Door Catch
19	SEAL-DOOR DRYER
20	WP3404413 Whirlpool Plug
21	WP488627 Whirlpool Refrigerator Screw
22	WPW10362431 Whirlpool Hinge Assembly
23	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
24	W11429589 Whirlpool Strike
25	WP3402341 Whirlpool Door
26	W10861227 Whirlpool Door Assembly
27	WP3405184 Whirlpool White Door Handle
28	W11035878 Whirlpool Bearing and Seal
29	W11222083 Whirlpool Power Cord
30	W10811916 Whirlpool Plug
31	WP8066217 Whirlpool Hinge
32	WP691366 Whirlpool Dryer Idler Pulley Assembly
33	341241 Whirlpool Dryer Drum Belt
34	WP348780 Whirlpool Base
35	3400500 Whirlpool Screw
36	WP8066184 Whirlpool Dryer Motor Pulley
37	279827 Whirlpool Dryer Drive Motor
38	CLAMP
39	W10823508 Whirlpool Gas Burner
