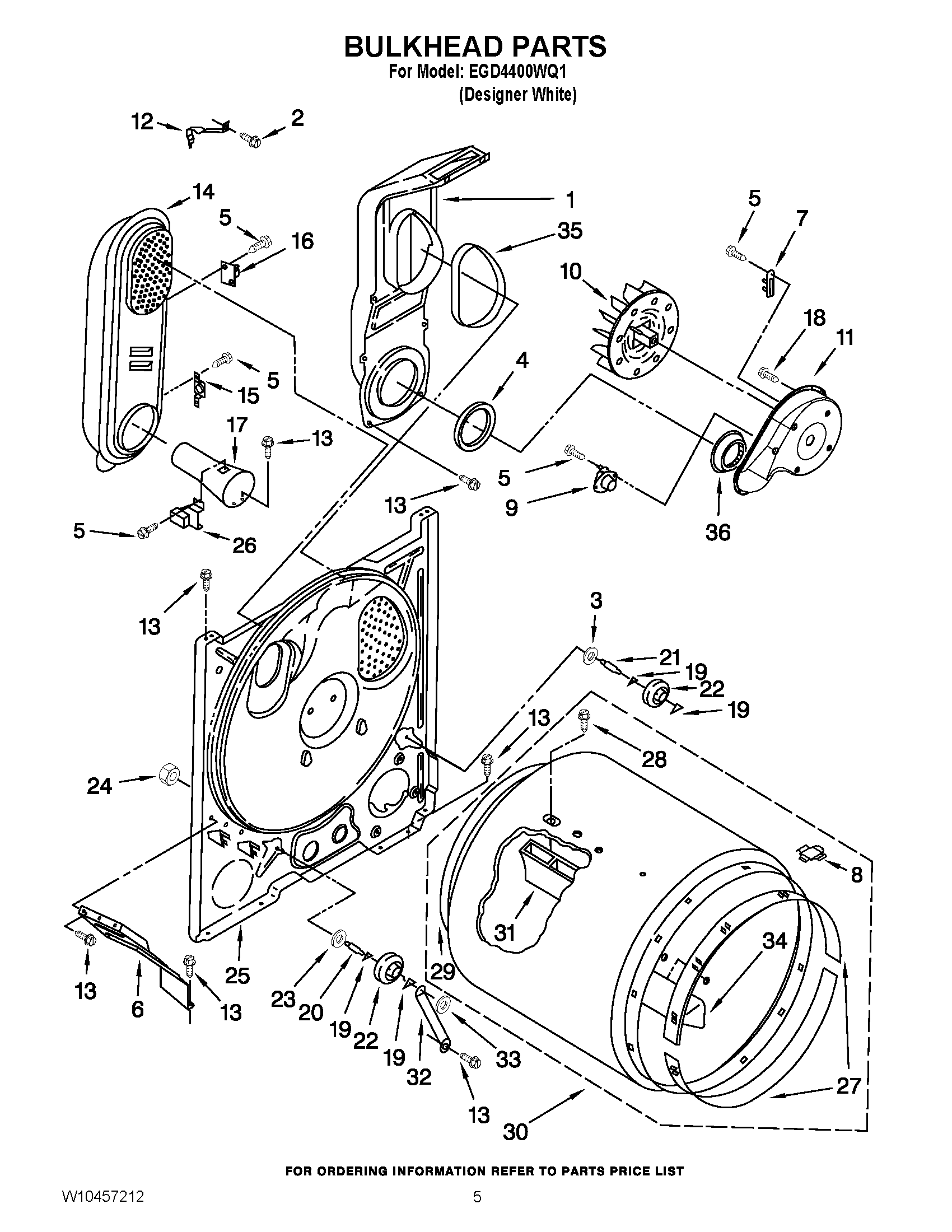

EGD4400WQ1 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11398682 Whirlpool Bracket
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	8066086 Whirlpool Plug
9	WP3387134 Whirlpool Dryer Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	279980 Whirlpool Box
16	W11050897 Whirlpool Dryer High Limit Thermostat
17	WP8066049 Whirlpool Funnel Assembly
18	WP488729 Whirlpool Refrigerator Door Screw
19	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20	SHAFT SUPPORT ROLLER DRYER
21	SHAFT SUPPORT ROLLER DRYER
22	349241T Whirlpool Dryer Drum Support Roller Kit
23	WP348197 Whirlpool Washer Assembly
24	W11229607 Whirlpool Nut
25	W11178667 Whirlpool Bulkhead Assembly
26	WP338906 Whirlpool Dryer Gas Sensor
27	279441 Whirlpool Front Bearing Ring
28	W10853898 Whirlpool Screw
29	W10612022 Whirlpool Felt Seal
30	W10899578 Whirlpool Dryer Drum Assembly
31	BAFFLE-DRM
32	W11684613 Whirlpool Bracket
33	WP90296 Whirlpool Clip
34	WP3403636 Whirlpool Drum Baffle
35	SEAL
36	W11233063 Whirlpool Shield Assembly
