EGR2000EM1WW CONTROL PANEL & COOKTOP

EGR2000EM1WW CONTROL PANEL & COOKTOP

Written by

in

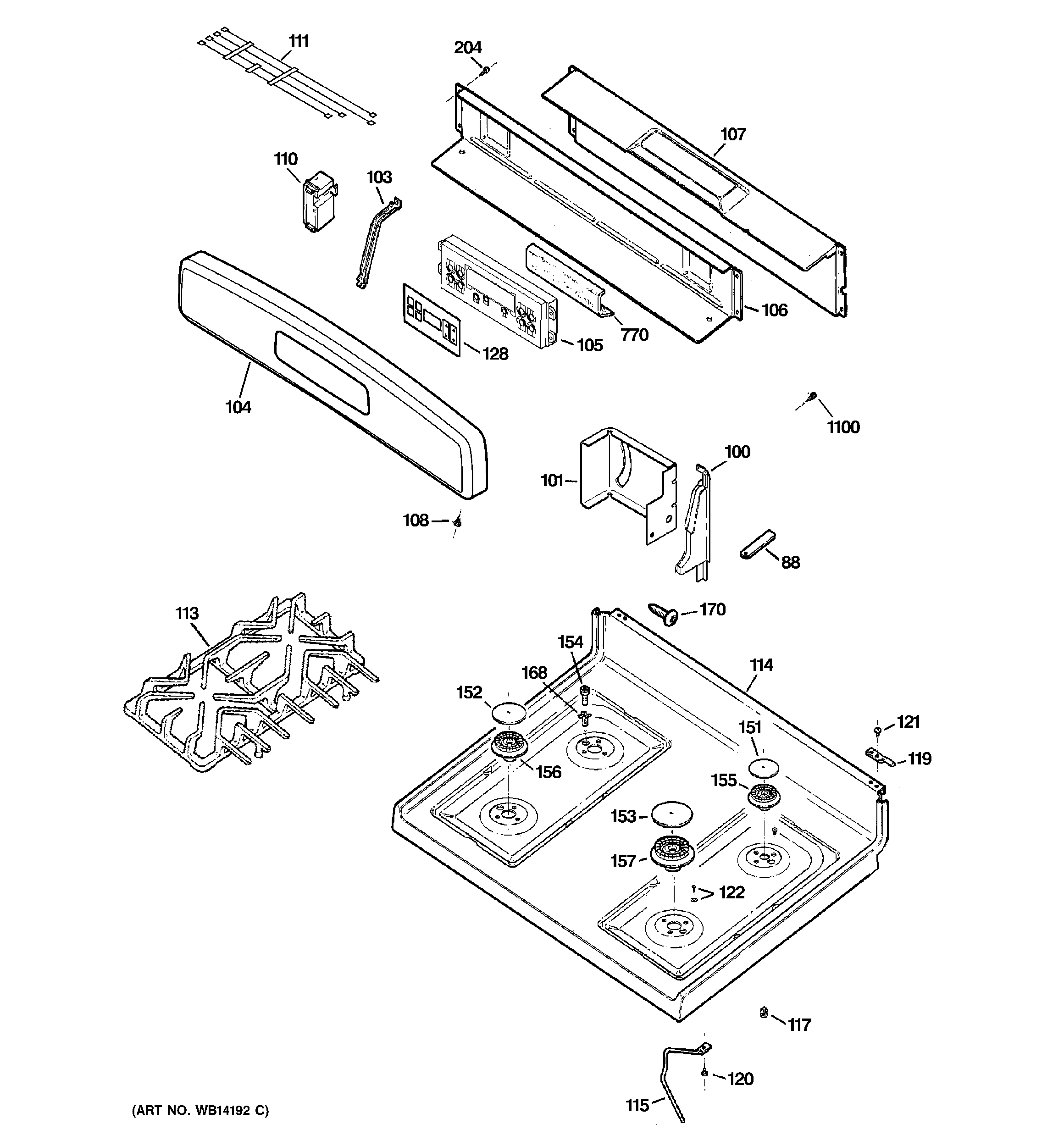

EGR2000EM1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88GEN WB02K10098
100GEN WB07K10266
100GEN WB07K10265
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103GEN WB02K10155
104GEN WB36K10723
105WB27K10354 GE Oven Gas Control
106GEN WB34K10093
107GEN WB34K10094
108WB1X5364 GE Oven Mounting Screw
110WB13X42446 GE Spark Module Replacement Kit
110GEN WB18K10027
111GEN WB18K10023
113GEN WB31K10041
114GEN WB62K10055
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
128WB27K10413 GE Oven Overlay T09-A
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10004 GE Oven Gray Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
