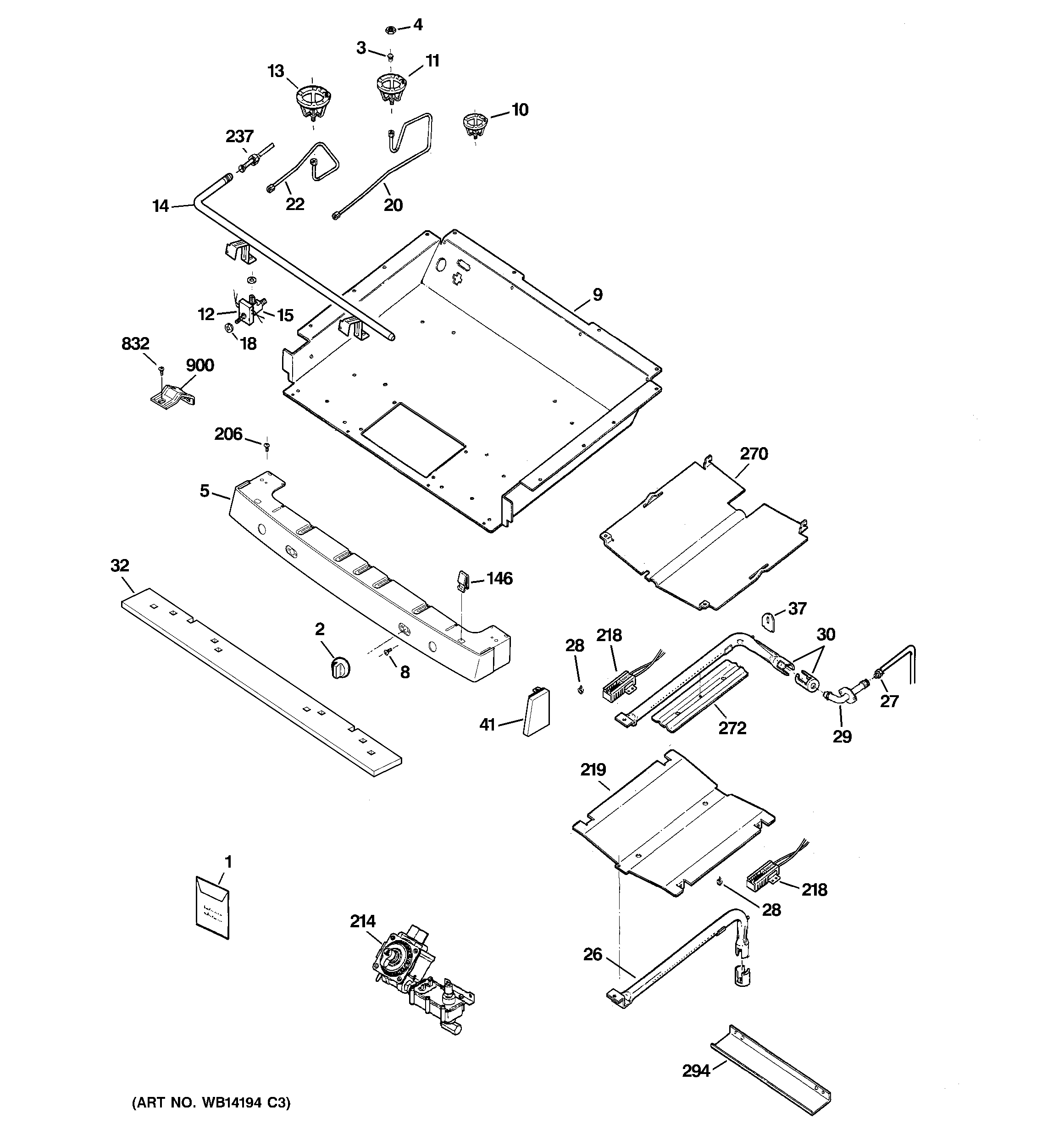

EGR2001EN2SS GAS & BURNER PARTS

EGR2001EN2SS GAS & BURNER PARTS

Written by

in

EGR2001EN2SS GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21392
1GEN 31-21330
1GEN WB28K10557
1GEN 49-85145
1WB02T10111 GE Cleaner Stainless Steel
2WB03X43926 GE Burner Knob Kit
3WB28K10032 GE Oven LP Orifice
3WB28K10023 GE Oven Orifice
3WB28K10031 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10663
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10037
12WB24K10042 GE Oven Rotary Switch
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10572
15VALVE BURNER 270
15WB21K10099 GE Oven Burner Valve
15VALVE BURNER 270 RR
18WB2K24 GE Oven Valve Cover
20WB28K10187 GE Oven Rear Orifice Holder
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
22WB28K10189 GE Oven Front Orifice Holder
22GEN WB28K10217
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10004
32INSULATION BURNER BOX
37WB34K14 GE Igniter Cover
41GEN WB07K10262
41GEN WB07K10263
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10297 GE Oven Valve Bracket
