EGR3000ED1WW CONTROL PANEL & COOKTOP

EGR3000ED1WW CONTROL PANEL & COOKTOP

Written by

in

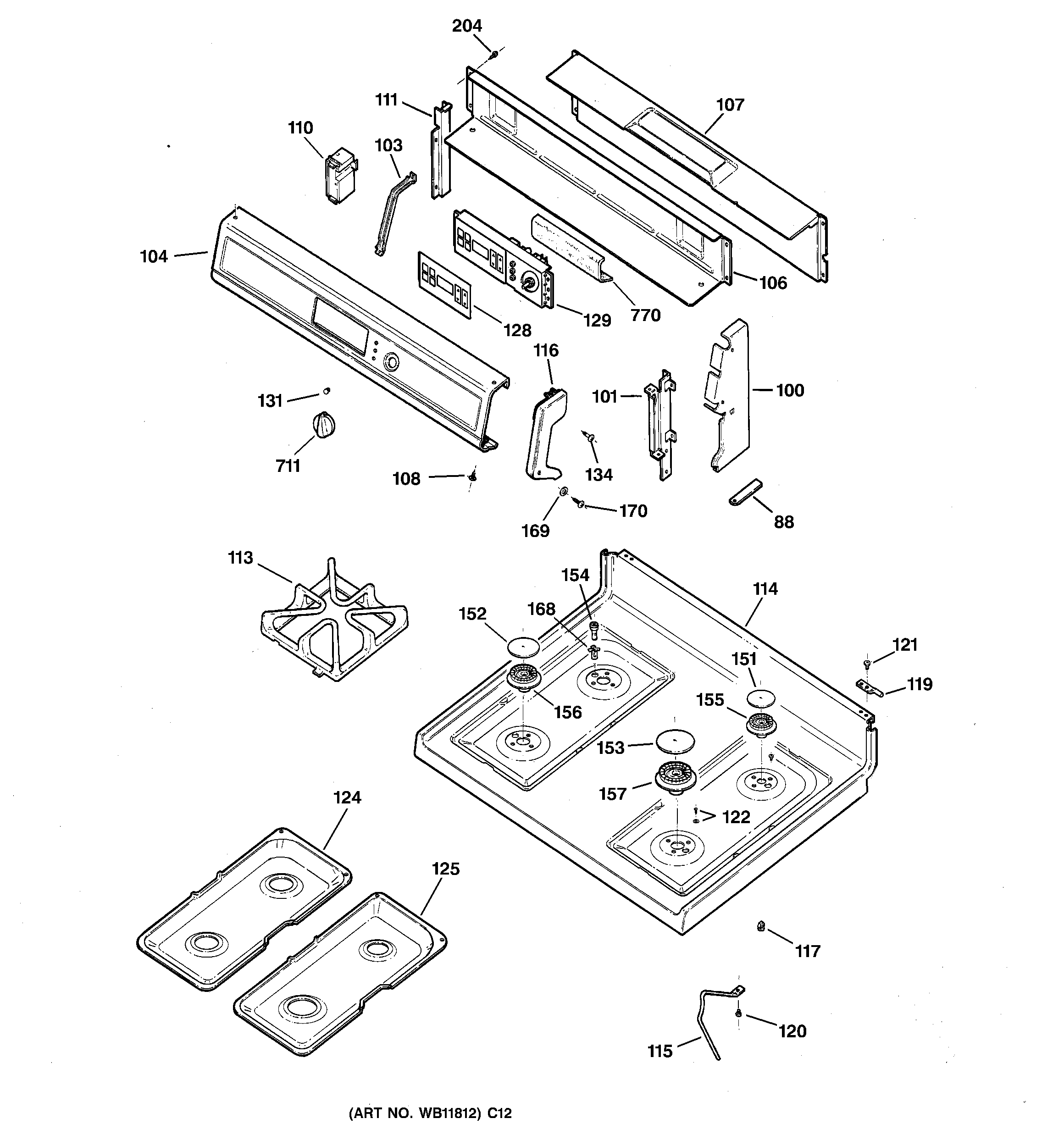

EGR3000ED1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10002
100GEN WB07K10001
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10005
104GEN WB36K10218
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10007
108WB1X5364 GE Oven Mounting Screw
110GEN WB13K0025
110WB18K10035 GE Oven Wire Harness
111GEN WB34K0005
113WB31K10035 GE Oven Grate Gray
113WB31K10045 GE Oven Grate Gray
114GEN WB62K10048
115WB2K91 GE Oven Top Support
116WB07K10005 GE Oven Right Endcap
116WB07K10007 GE Oven Endcap Left
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
124WB34K10014 GE Oven Left Pan Unit
125WB34K10013 GE Right Oven Pan Unit
128GEN WB27K10077
129WB27K10143 GE Stove Range Oven Electronic Control Board
131WB25T10041 GE Oven Lens
134GEN WB01K10004
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10004 GE Oven Gray Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
154GEN WB13K10003
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
711KNOB CONTROL (WH)
770GEN WB35K10004
