EGR3000EH2WW CONTROL PANEL & COOKTOP

EGR3000EH2WW CONTROL PANEL & COOKTOP

Written by

in

EGR3000EH2WW CONTROL PANEL & COOKTOP

Products

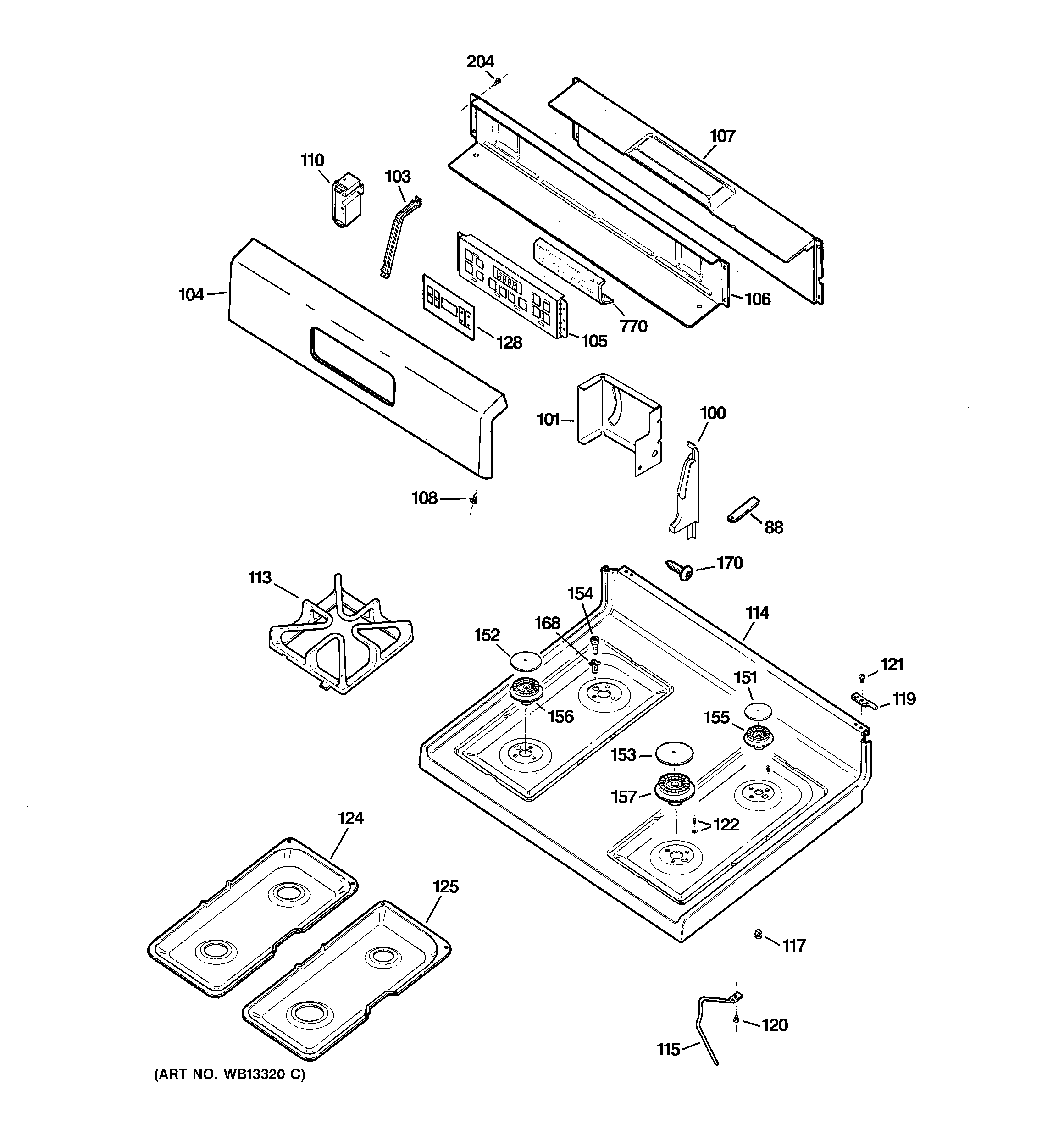

PositionProduct
88GEN WB02K0062
100WB07K10196 GE Oven Left End Support (White)
100WB07K10195 GE Oven Right White End Support
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10350
105WB27K10355 GE Oven Electronic Control Board
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10062
108WB1X5364 GE Oven Mounting Screw
108WB01T10016 GE Oven Screw 8-18 AB Hex
110WB18K10035 GE Oven Wire Harness
110GEN WB13K0025
113WB31K10045 GE Oven Grate Gray
114GEN WB62K10048
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
124WB34K10014 GE Oven Left Pan Unit
125WB34K10013 GE Right Oven Pan Unit
128GEN WB27K10132
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10004 GE Oven Gray Burner Cap
153WB29K10007 GE Oven Burner Cap, Left
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156WB16K10055 GE Oven Burner Base
157BURNER 12K
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
