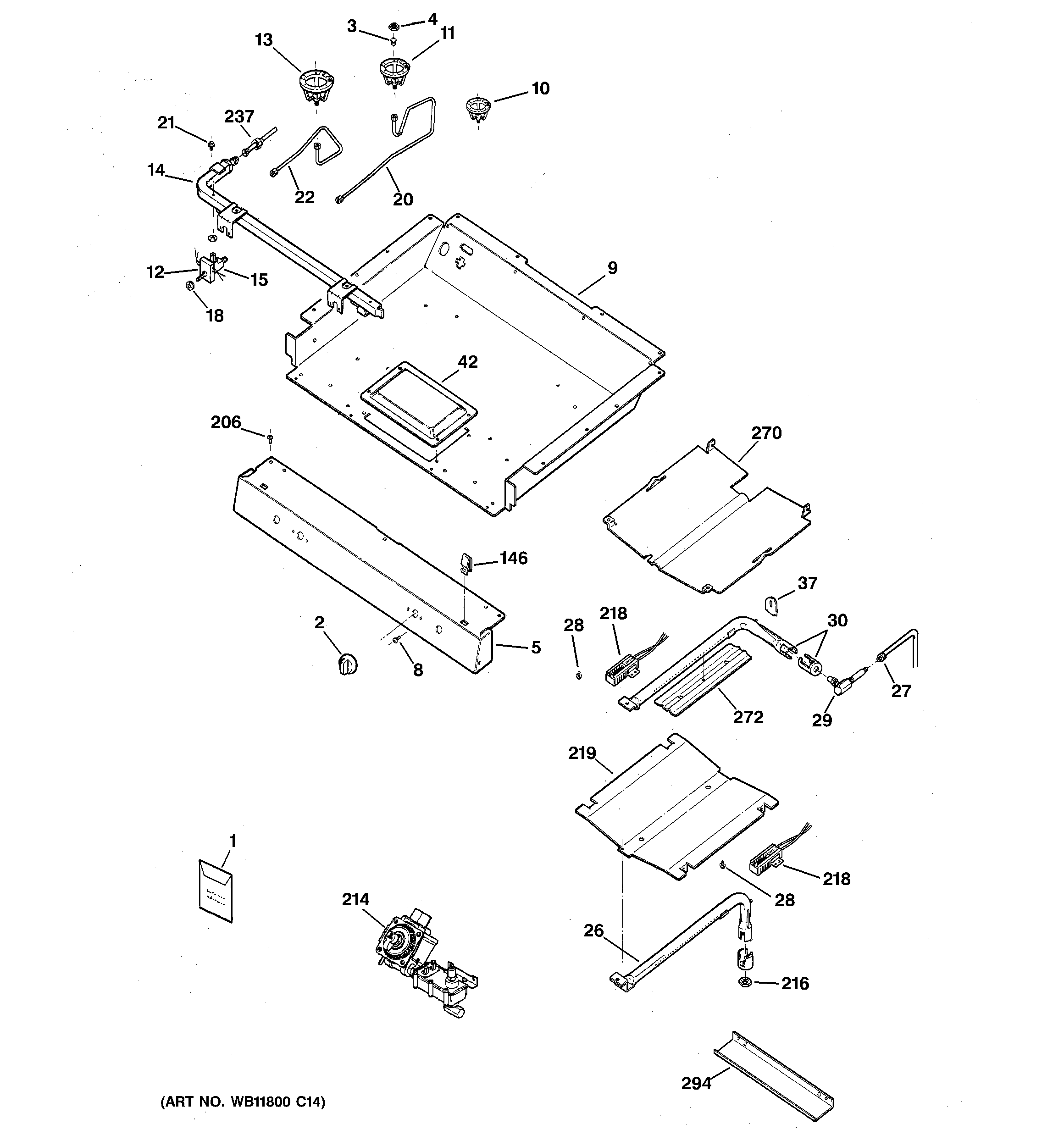

EGR3000EH3CC GAS & BURNER PARTS

EGR3000EH3CC GAS & BURNER PARTS

Written by

in

EGR3000EH3CC GAS & BURNER PARTS

Products

PositionProduct
1GEN WB28K10164
1GEN 31-21116
1GEN 49-85069
1GEN WB02K0101
2GEN WB03K10147
3WB28K10032 GE Oven LP Orifice
3WB28K10031 GE Oven Orifice
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10347
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10024
12GEN WB24K10023
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10028
15GEN WB21K10040
15GEN WB21K10039
15GEN WB21K10038
18WB2K24 GE Oven Valve Cover
20WB28K10187 GE Oven Rear Orifice Holder
20WB28K10188 GE Oven Rear Orifice H R 150N 9500
21WB1K83 GE Oven Screw
22WB28K10190 GE Oven Left Front Orifice
22FRONT ORIFICE HOLDER NG
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K0030
30GEN WB16K10004
37WB34K14 GE Igniter Cover
42GEN WB63K0022
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
216GEN WB01K0006
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
