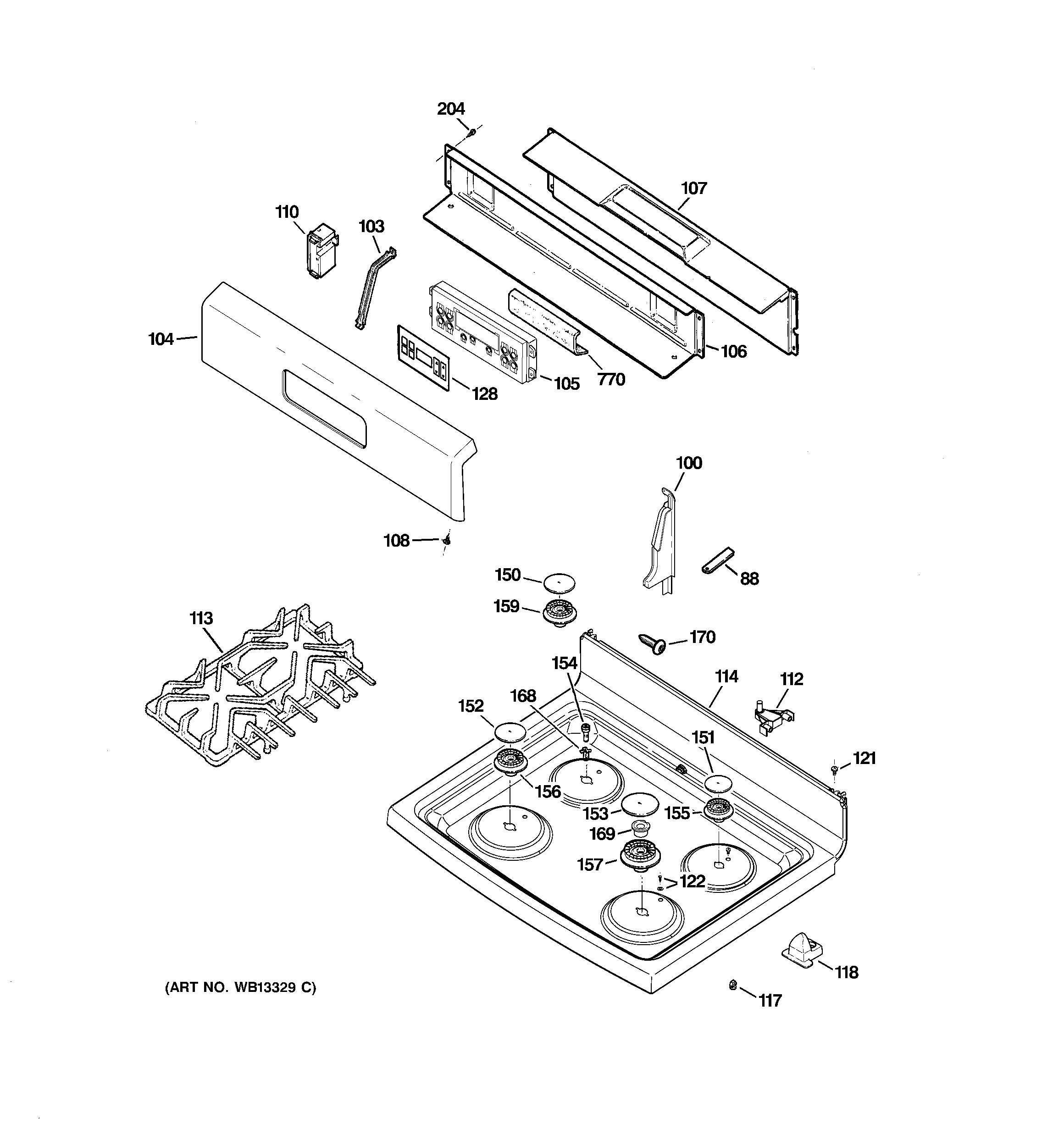

EGR3000EJ3BB CONTROL PANEL & COOKTOP

EGR3000EJ3BB CONTROL PANEL & COOKTOP

Written by

in

EGR3000EJ3BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88WB2K64 GE Oven Felt Pad Black
100END SUPPORT LEFT
100END SUPPORT RIGHT
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10483
105WB27K10148 GE Oven Control Board
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10062
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB01K10030 GE Screw Assembly
110WB13X42446 GE Spark Module Replacement Kit
110WB18K10035 GE Oven Wire Harness
110GEN WB18K10027
112WB14K10003 GE Range Top Hinge
113GRATE CAST (DD) RT
113GRATE CAST (DD) LF
114GEN WB62K10087
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121WB1K5119 GE Oven Screw
122GEN WB01K10008
128GEN WB27K10112
150WB29K10001 GE Oven Burner Cap
151WB29K10009 GE Oven Burner Cap
152WB29K10006 GE Oven Burner Cap
153WB28K10213 GE Oven Burner Cap Assembly (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10046
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770GEN WB35K10004
