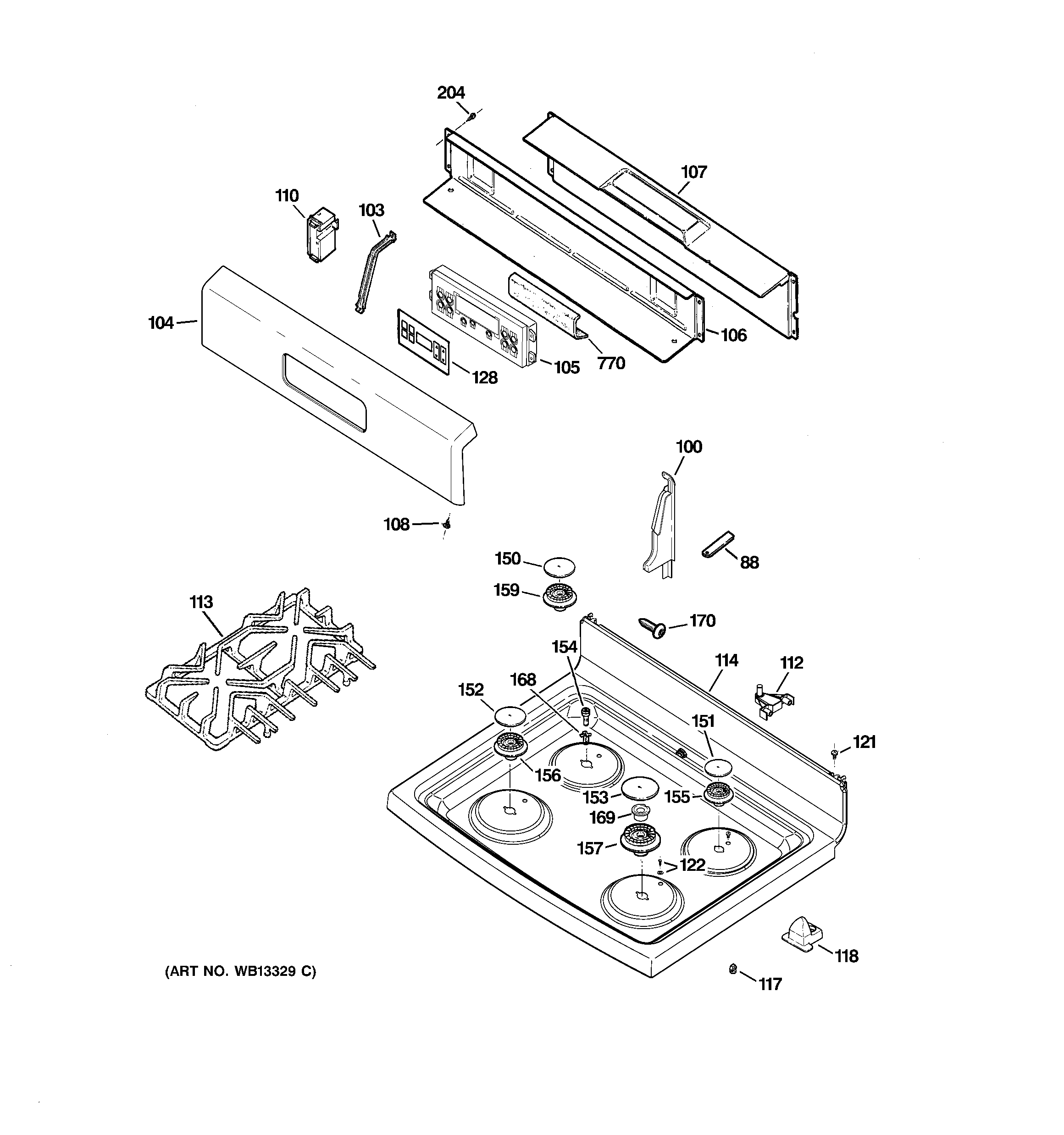

EGR3000EL2CC CONTROL PANEL & COOKTOP

EGR3000EL2CC CONTROL PANEL & COOKTOP

Written by

in

EGR3000EL2CC CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88GEN WB02K0085
100GEN WB07K10213
100GEN WB07K10214
103WB02K10074 GE Oven Control Bracket
104GEN WB36K10484
105WB27K10148 GE Oven Control Board
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10062
108WB1X5364 GE Oven Mounting Screw
108WB01K10030 GE Screw Assembly
108WB01T10016 GE Oven Screw 8-18 AB Hex
110WB18K10042 GE Oven Harness Module
110WB13X42446 GE Spark Module Replacement Kit
110GEN WB18K10039
112WB14K10003 GE Range Top Hinge
113GRATE CAST (DD) LF
113GRATE CAST (DD) RT
114GEN WB62K10090
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121WB1K5119 GE Oven Screw
122GEN WB01K10008
128GEN WB27K10128
150CAP-BURNER MED TAUPE
151CAP-BURNER SMALL TAUPE
152WB29X36765 GE Large Cap Burner Taupe Rep
153GEN WB28K10221
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10046
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770GEN WB35K10004
