EGR3000EP2WW GAS & BURNER PARTS

EGR3000EP2WW GAS & BURNER PARTS

Written by

in

EGR3000EP2WW GAS & BURNER PARTS

Products

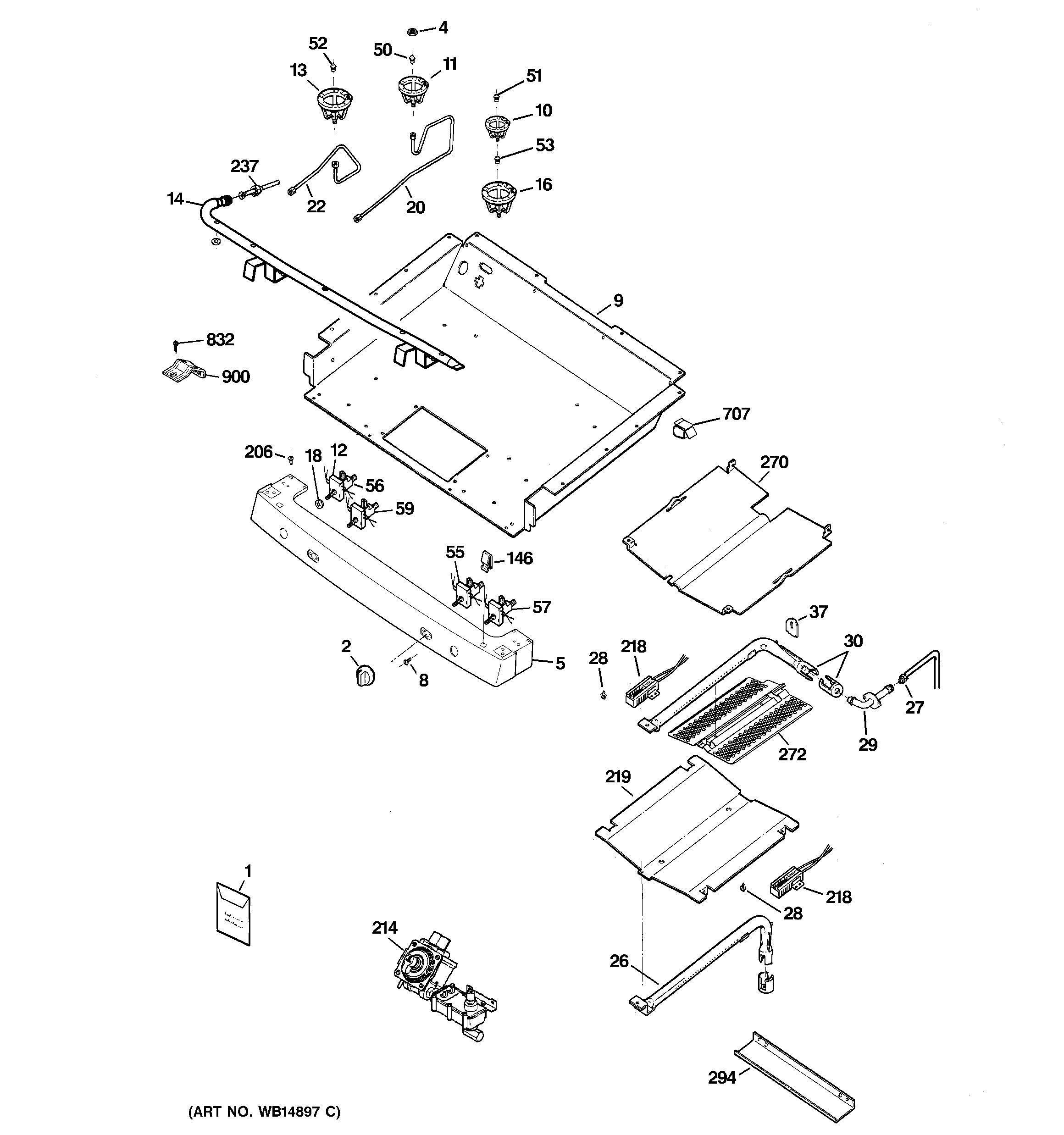

PositionProduct
1GEN 49-85172
1GEN 31-21452
1GEN WB28K10613
1GEN 31-21473
2GEN WB03K10293
2GEN WB03K10292
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10724
5GEN WB36K10728
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10074
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10582
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20GEN WB28K10211
20GEN WB28K10212
22GEN WB28K10210
22GEN WB28K10209
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10308
30GEN WB16K10067
37WB34K14 GE Igniter Cover
50WB28K10215 GE Oven Orifice
51WB28K10031 GE Oven Orifice
52WB28K10214 GE Oven Orifice
53ORIFICE SPUD LP RF
55VALVE BURNER 270 RR
56WB21K10099 GE Oven Burner Valve
57GEN WB21K10116
59VALVE BURNER 270
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
218WB13X25261 GE Oven Igniter Glowbar
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10587
237WB28X24772 GE Oven Gas Tube Connector
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
