EH050FXAN00 03 – SECTION

EH050FXAN00 03 – SECTION

Written by

in

EH050FXAN00 03 – SECTION

Products

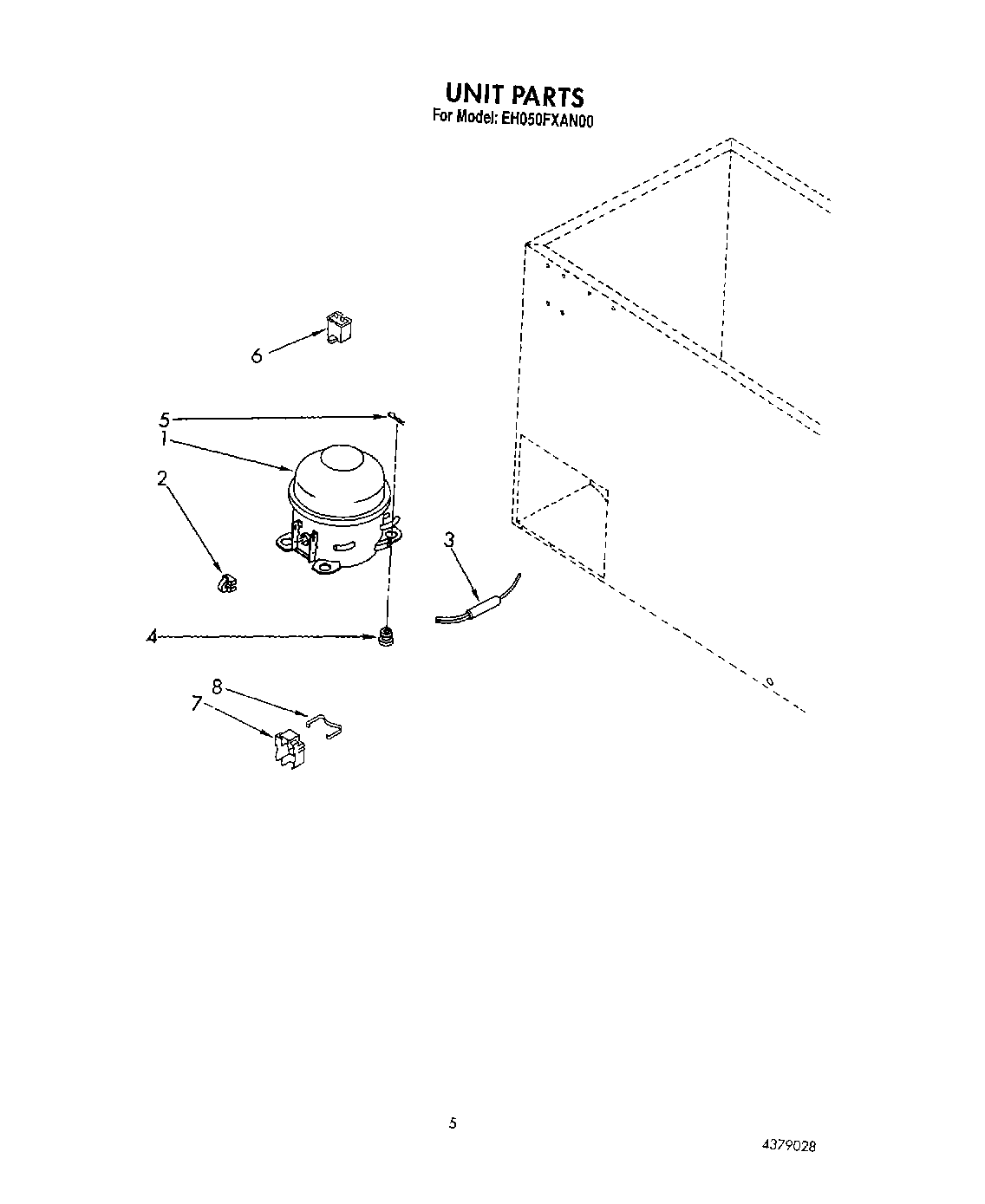

PositionProduct
1Compressor
2Relay
3W10843121 Whirlpool Refrigerator Tube
4Grommet, Mounting Compressor
5Clip, Hitch Pin
6WPW10662129 Whirlpool Refrigerator Run Capacitor
7Cover
8Clip, Cover
