EH050FXGW07 01 – SECTION

EH050FXGW07 01 – SECTION

Written by

in

EH050FXGW07 01 – SECTION

Products

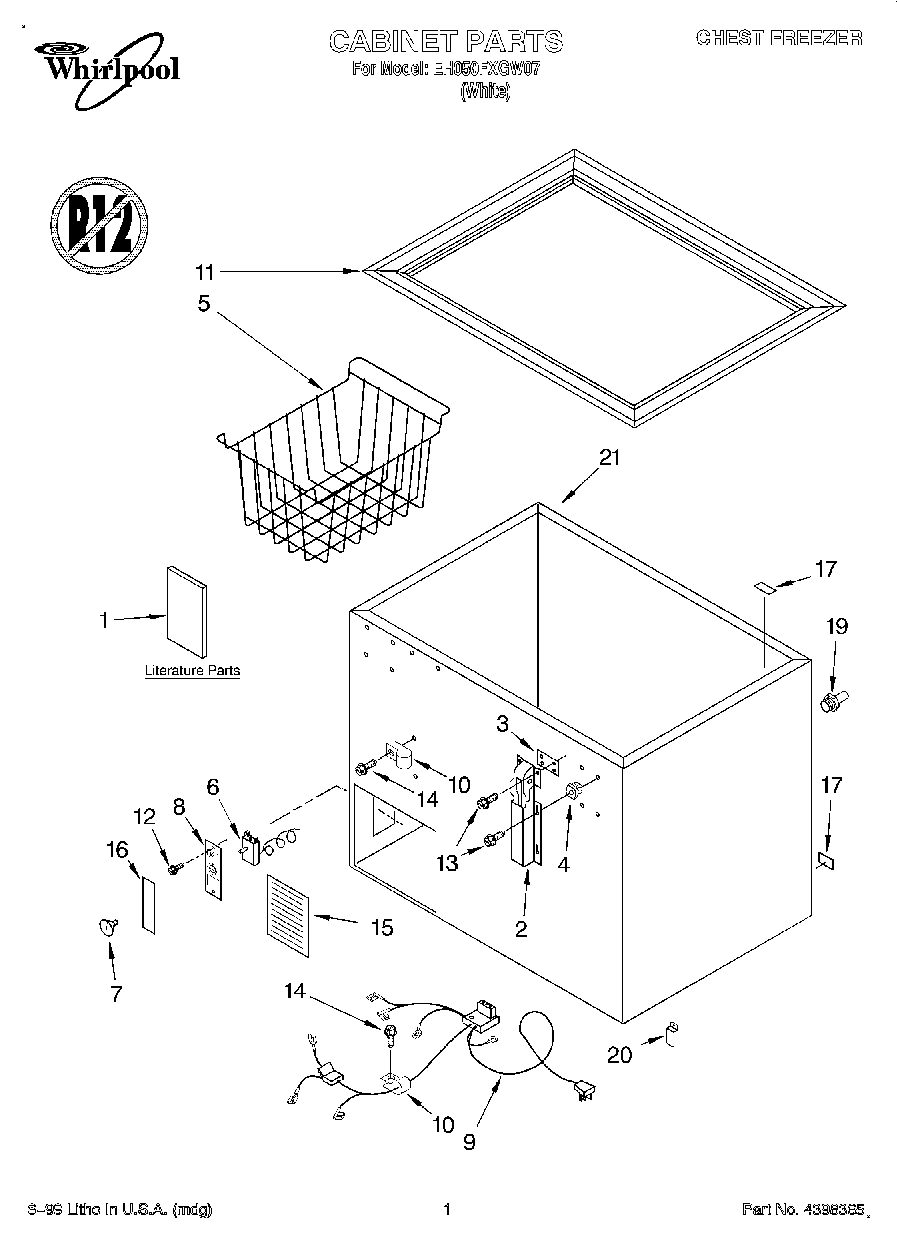

PositionProduct
1Literature Parts (Owner`s Manual)
1Energy Label
2Hinge Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Thermostat, Knob
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
123-24004-049 Whirlpool Screw
134356491 Whirlpool Refrigerator Screw
14SCREW
15Access Panel
16Insert, Control
17Drain Cap
19W11663505 Whirlpool Hose Adapter
20Clip
21Enamel (Almond) (1 Qt. Uncut)
21Rivet Kit (60)
21350956 Whirlpool Spray Assembly
21WP72107 Whirlpool Touchup
21Cabinet (Not A Serviceable Part)
