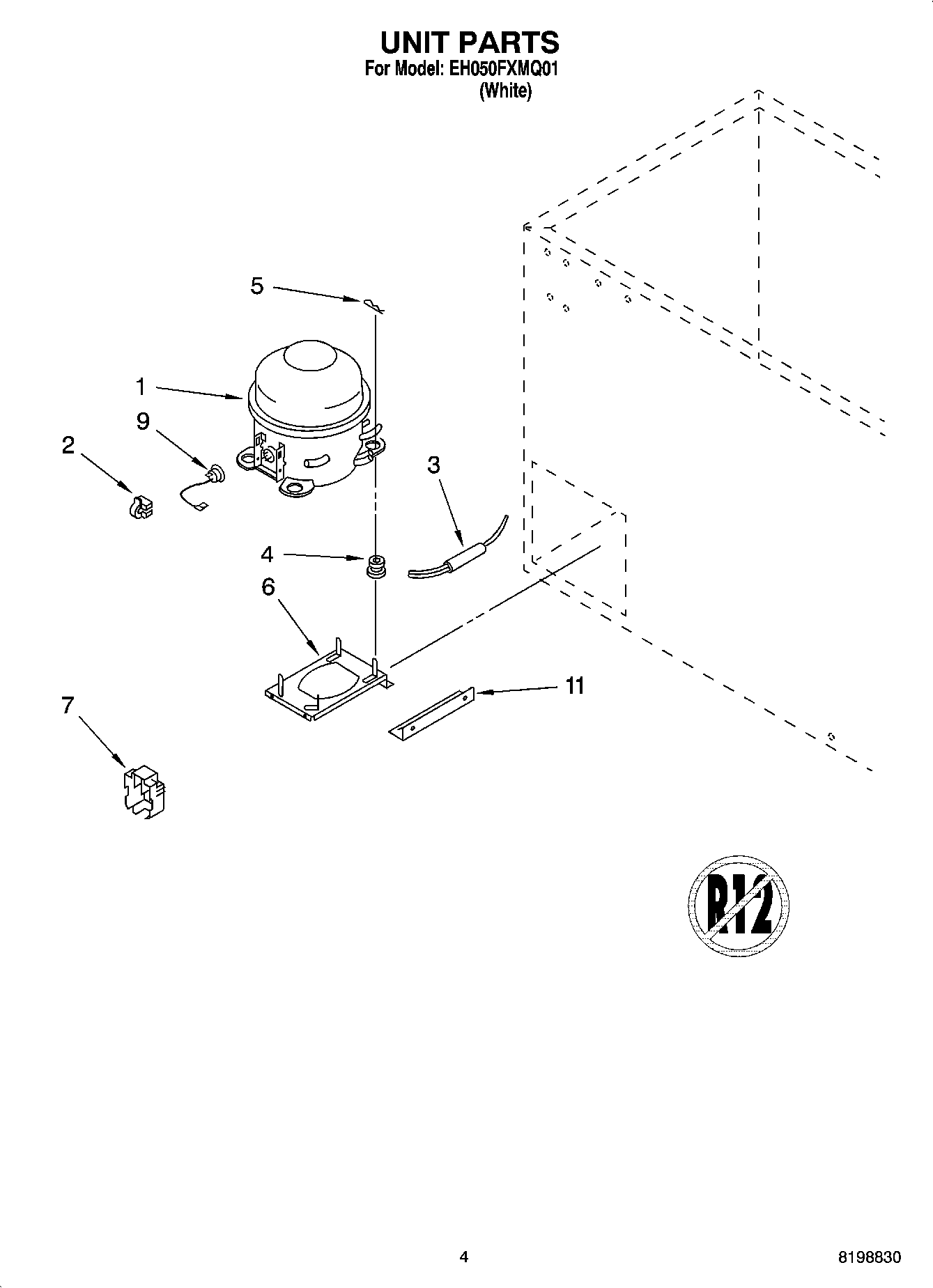

EH050FXMQ01 03 – UNIT PARTS

Written by

Products

Position	Product
1	Compressor (Includes Items 2, 3, 4, 5, 8 & 9)
2	4356716 Whirlpool Refrigerator Start Relay
3	W10843121 Whirlpool Refrigerator Tube
4	Grommet, Mounting Compressor
5	Clip, Hitch Pin
6	Base, Compressor
7	WP2162358 Whirlpool Refrigerator Terminal Cover
9	2264602 Whirlpool Refrigerator Overload
11	3-81556-001 Whirlpool Brace
11	REFRIGERANT CHARGE 3.0 oz. (R-134A)
