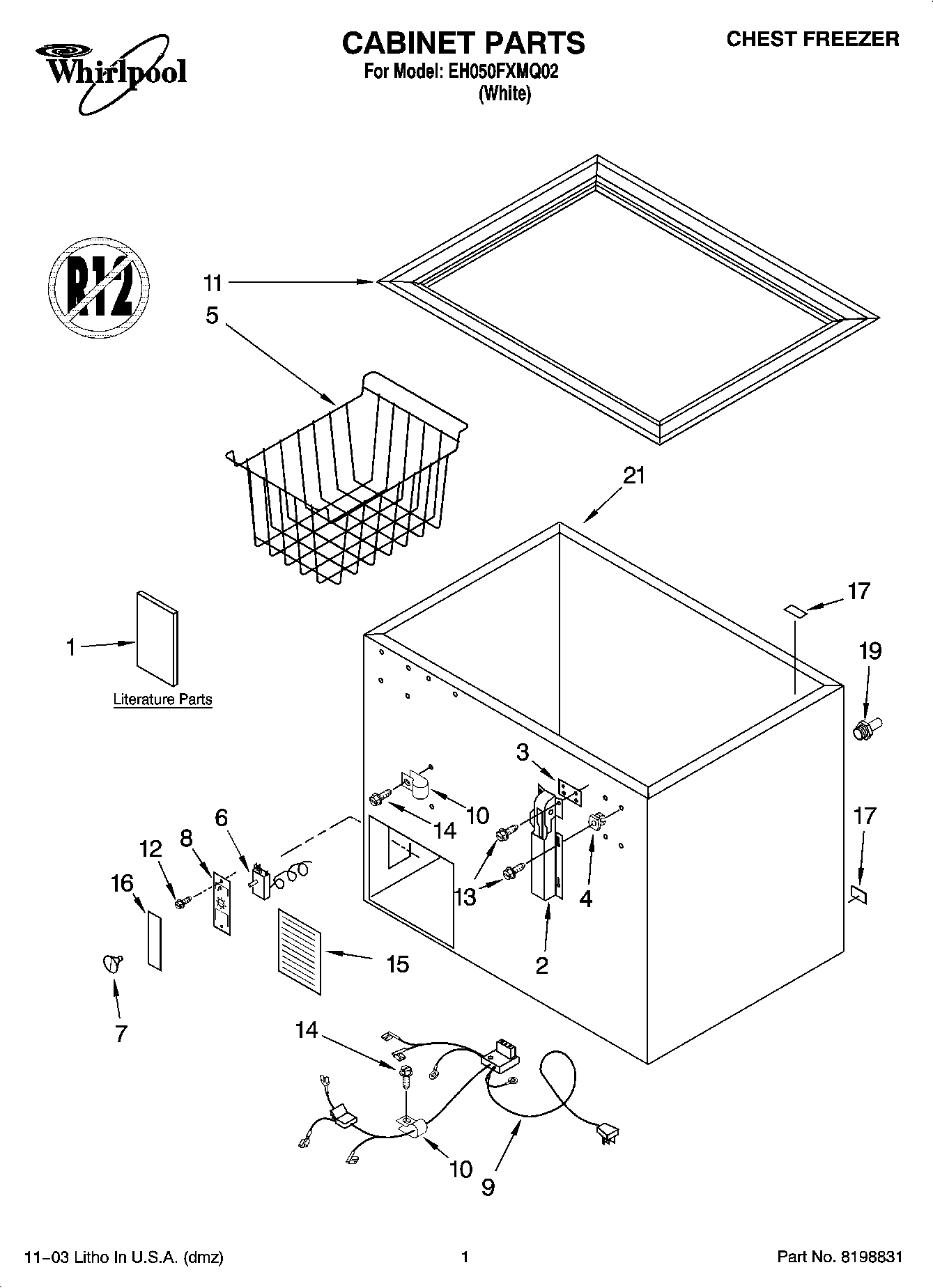

EH050FXMQ02 01 – CABINET PARTS And PARTS NOT ILLUSTRATED

EH050FXMQ02 01 – CABINET PARTS And PARTS NOT ILLUSTRATED

Written by

in

EH050FXMQ02 01 – CABINET PARTS And PARTS NOT ILLUSTRATED

Products

PositionProduct
1Literature Parts (Energy Label)
1Literature Parts (Use & Care Guide)
24356490 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Thermostat, Knob
8W10682894 Whirlpool Refrigerator Control Box
9External, Wiring Harness
10488946 Whirlpool Air Conditioner Clamp
11Breaker Strip
123-24004-049 Whirlpool Screw
134356491 Whirlpool Refrigerator Screw
14SCREW
15Access Panel
16Insert, Control
17Drain Cap
19W11663505 Whirlpool Hose Adapter
2172017 Whirlpool Appliance Touch-Up Paint White
21799344 Whirlpool Refrigerator Paint
21Clip, Gasket (Kit Of 60)
21350930 Whirlpool White Spray Paint
