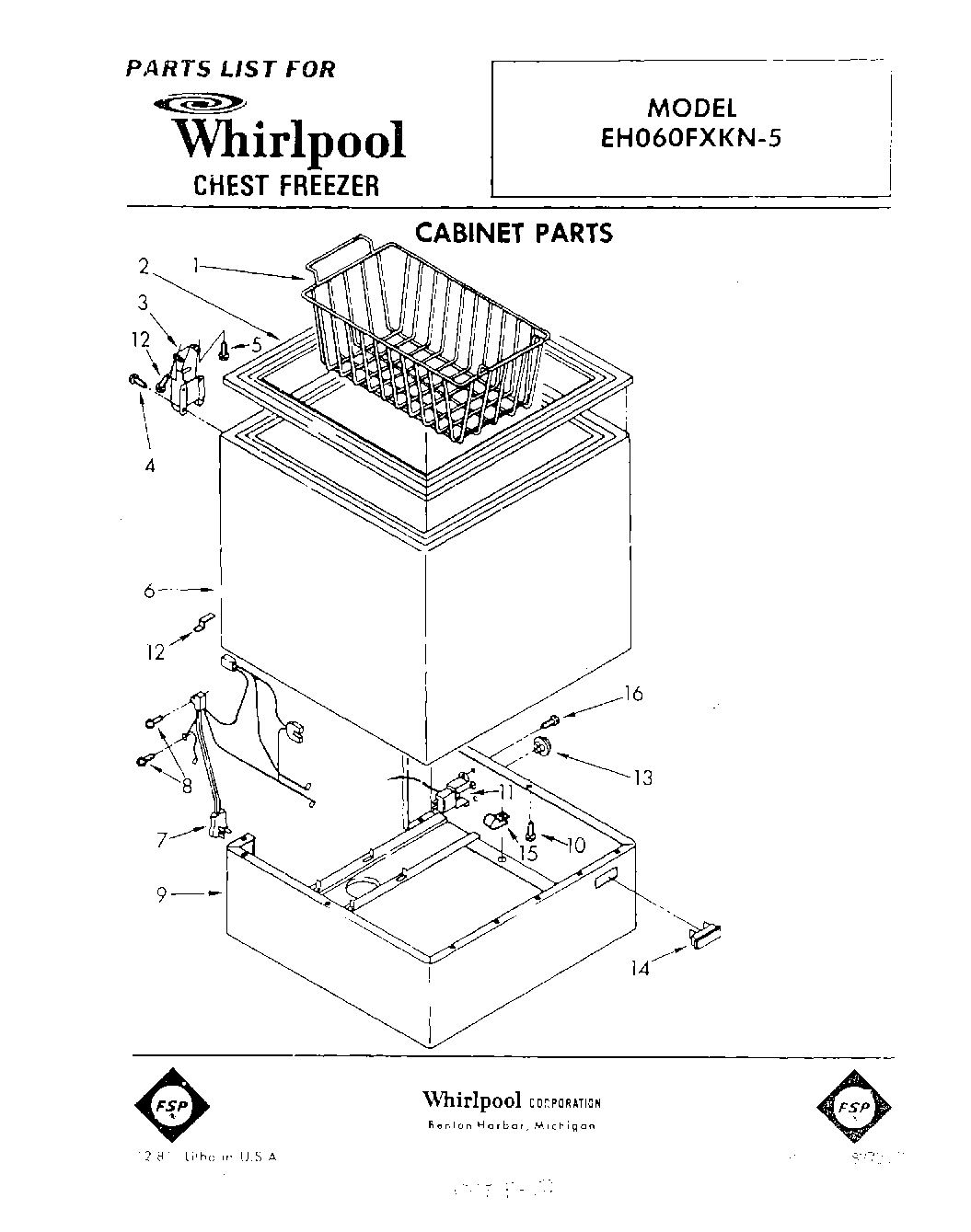

EH060FXKN5 01 – SECTION

Written by

Products

Position	Product
1	Basket
2	Collar
3	Hinge
4	Screw (6)
5	Screw (6)
6	Cabinet (Not A Serviceable Part)
7	Harness, Wiring
8	Screw
9	Base
10	WP489069 Whirlpool Compactor Screw
11	Control
12	Clip, Cord Plug
13	Knob, Control
14	Light, Indicator
15	Clamp, Wire
16	Screw
