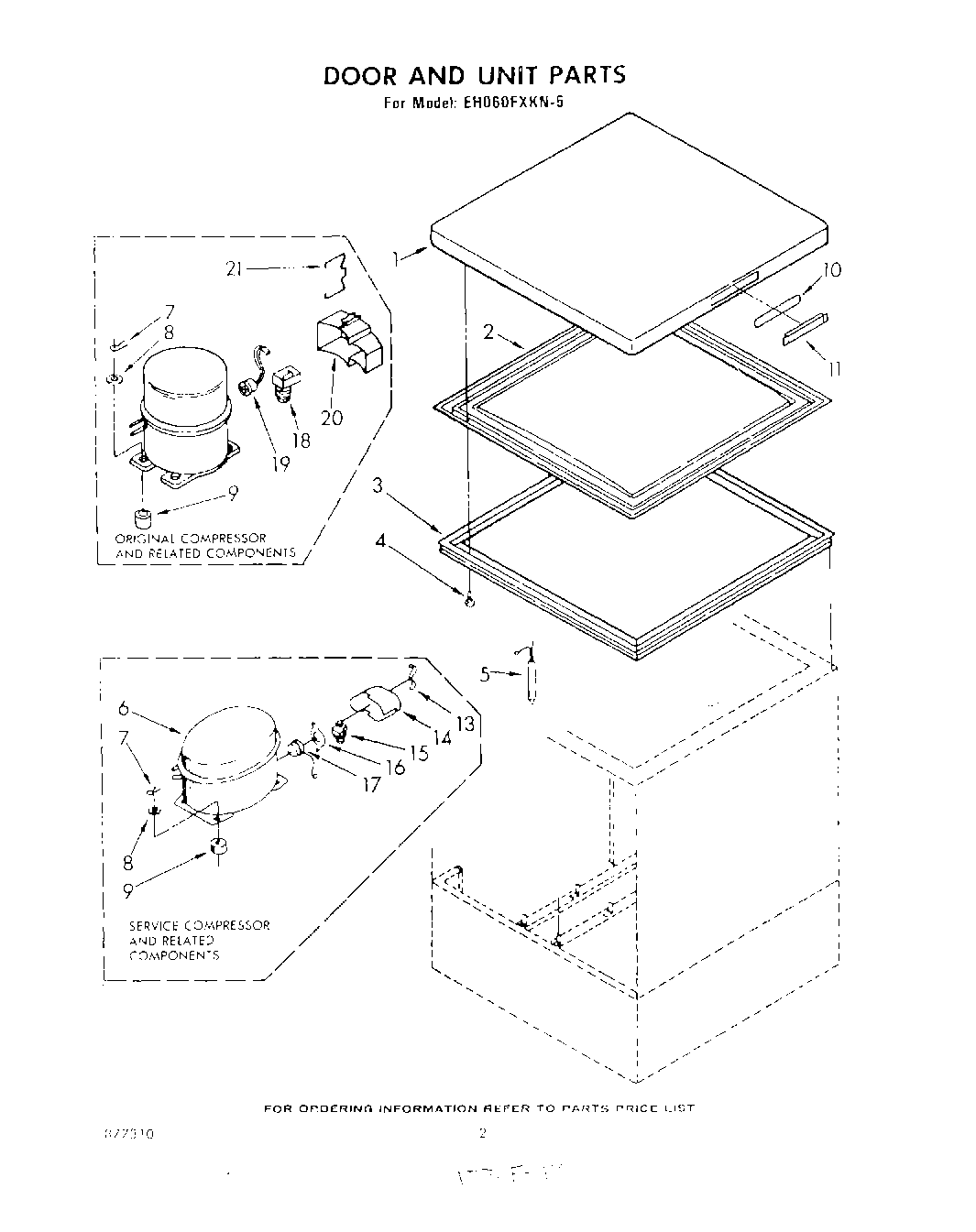

EH060FXKN5 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	Leveler (Thinner) (2oz.)
	350942 Whirlpool Spray Paint
1	Door
2	Panel
3	Gasket
4	Clip (36)
5	W10843121 Whirlpool Refrigerator Tube
6	876765 Whirlpool Primary Mounting Kit Refrigerator
6	Compressor (Service Replacement) (Also Order 13, 14, 15, 16 & 17)
7	clip (4)
8	Washer
9	Grommet (4)
10	Gasket, Handle
11	Handle, Snap-In
13	Cover Strap
14	Cover, Terminal
15	Relay
16	Spring
17	Overload
18	Relay, Start (Used W/ Original Compressor)
19	Overload (Used W/ Original Compressor)
20	Cover (Used W/ Original Compressor)
21	List, Parts
21	Almond (Uncut)
21	Clamp (Used W/Original Compressor)
21	Energy Guide
21	Guide, Use & Care
21	Book, How To Freeze
21	799344 Whirlpool Refrigerator Paint
21	WP72107 Whirlpool Touchup
21	VALVE, ACCESS (5/8“)
21	212643 Whirlpool Refrigerator Permagum Sealer
21	833938 Whirlpool Refrigerator Terminal
21	978026 Whirlpool Refrigerator Primary Valve
21	WP505587 Whirlpool Refrigerator Sealer
21	978027 Whirlpool Refrigerator Primary Valve
21	978030 Whirlpool Refrigerator Valve
21	WP978025 Whirlpool Refrigerator Valve
21	VALVE, ACCESS (1/2“)
21	WPL 799351
21	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
21	Kit, Insulation (Door Only)
21	72017 Whirlpool Appliance Touch-Up Paint White
