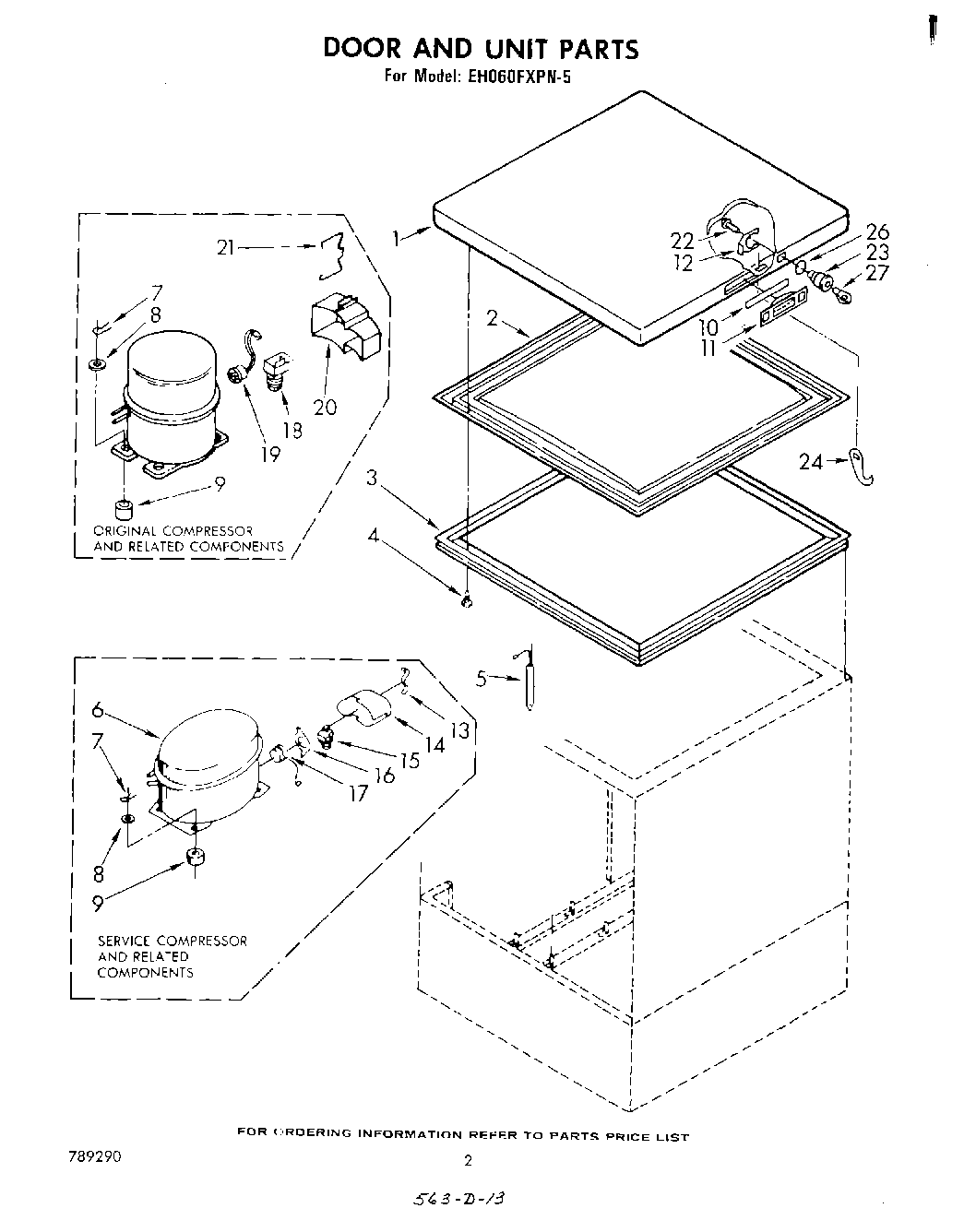

EH060FXPN5 02 – SECTION

Products

Position	Product
	WPL LIT730075
	978027 Whirlpool Refrigerator Primary Valve
	978030 Whirlpool Refrigerator Valve
	WP978025 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
	Leveler (Thinner) (2oz.)
	WPL LIT789290
	WPL LIT656493
	WPL LIT728839
	Kit, Insulation (Door Only)
	WPL LIT730048
	WP505587 Whirlpool Refrigerator Sealer
	978026 Whirlpool Refrigerator Primary Valve
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	VALVE, ACCESS (5/8“)
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	Almond (Uncut)
1	Door
2	Panel
3	Gasket
4	Clip (44)
5	Drier
6	876765 Whirlpool Primary Mounting Kit Refrigerator
6	Compressor (Service Replacement) (Includes Items 13, 14, 15, 16 & 17)
7	Clip (4)
8	Washer
9	876811 Whirlpool Grommet
10	Gasket, Handle
11	Handle, Snap-In
12	Clip, Lock
13	Cover, Spring
14	WPL 549505
15	Relay
16	Spring, Overload
17	Overload
18	Relay, Start (Used W/ Original Compressor)
19	Overload (Used W/ Original Compressor)
20	Cover, Terminal
21	Strap
22	Screw
23	Lock
24	Hook, Lock
26	“O“ Ring
27	WP842177 Whirlpool Refrigerator Door Key
