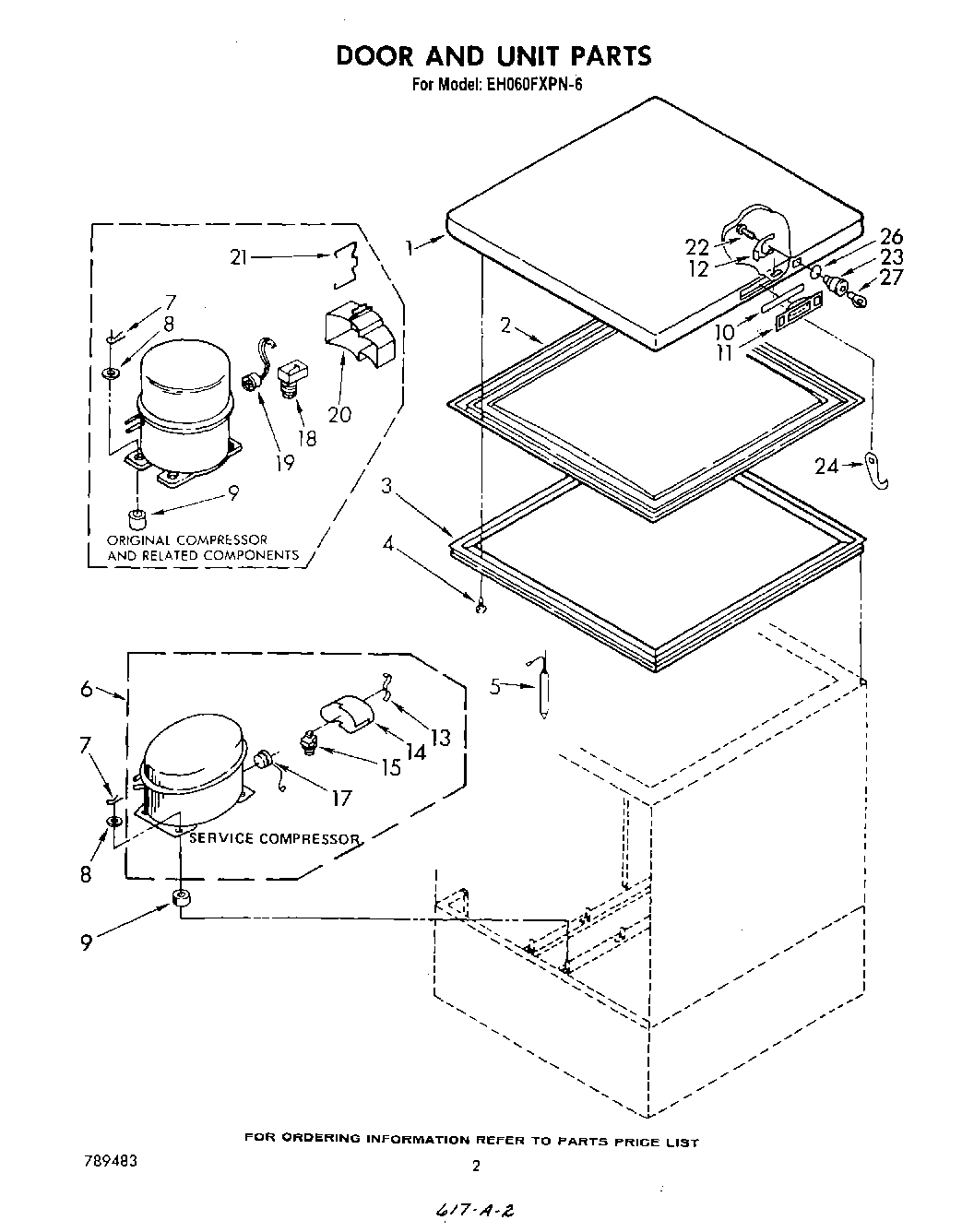

EH060FXPN6 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT730048
	WPL LIT730075
	350942 Whirlpool Spray Paint
	WPL LIT789483
	WPL LIT656493
	Leveler (Thinner) (2oz.)
	WPL LIT728839
	350956 Whirlpool Spray Assembly
1	Door
2	Panel
3	Gasket
4	Clip (44)
5	Drier
6	Compressor (Service Replacement) (Includes Items 13, 14, 15, 16 & 17)
7	Clip (4)
8	Washer
9	876811 Whirlpool Grommet
10	Gasket, Handle
11	Handle, Snap-In
12	Clip, Spring
15	Relay
17	Overload
18	Relay, Start (Used W/ Original Compressor)
19	Overload (Used W/ Original Compressor)
20	Cover, Terminal
21	Strap
22	Screw
23	Lock
24	Hook, Lock
26	“O“ Ring
27	WP72107 Whirlpool Touchup
27	799344 Whirlpool Refrigerator Paint
27	72017 Whirlpool Appliance Touch-Up Paint White
27	Almond (Uncut)
27	212643 Whirlpool Refrigerator Permagum Sealer
27	VALVE, ACCESS (5/8“)
27	833938 Whirlpool Refrigerator Terminal
27	WP503695 Whirlpool Refrigerator Sealer
27	978026 Whirlpool Refrigerator Primary Valve
27	WP505587 Whirlpool Refrigerator Sealer
27	978027 Whirlpool Refrigerator Primary Valve
27	978030 Whirlpool Refrigerator Valve
27	WP842177 Whirlpool Refrigerator Door Key
27	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
27	WP978025 Whirlpool Refrigerator Valve
27	VALVE, ACCESS (1/2“)
27	Kit, Insulation (Door Only)
