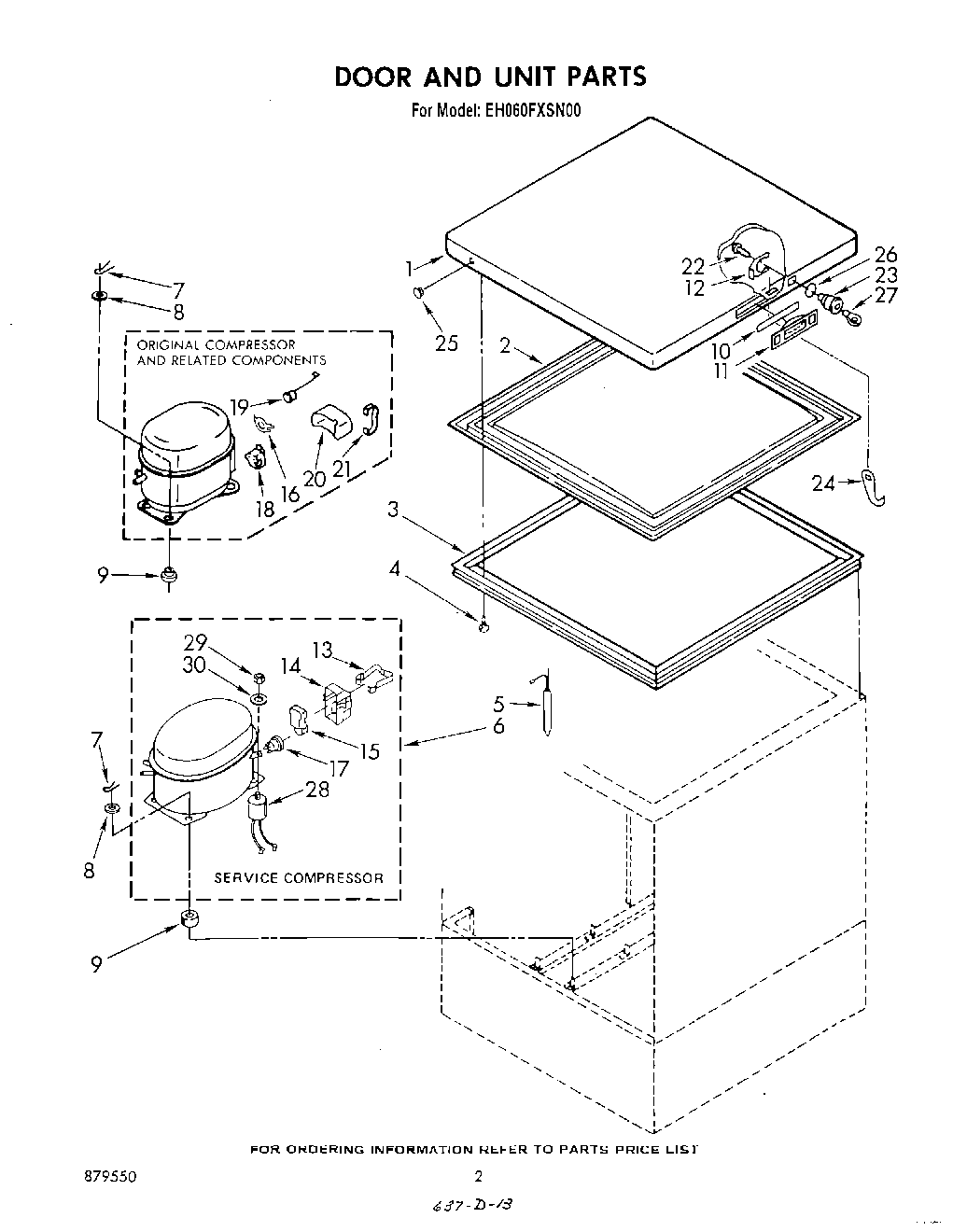

EH060FXSN00 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT656493
	Tech Sheet
	350942 Whirlpool Spray Paint
	WPL LIT730689
	WPL LIT730698
	Leveler (Thinner) (2oz.)
	350956 Whirlpool Spray Assembly
	WPL LIT879550
1	Door
2	Panel
3	Gasket
4	Clip (44)
5	Drier
6	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
7	Clip (4)
8	Washer
9	876811 Whirlpool Grommet
10	Gasket, Handle
11	Handle
12	Clip, Spring
13	Strap
14	Cover, Terminal
15	Relay
16	Overload, Spring (Used W/Original Compressor)
17	Overload
18	WP2262181 Whirlpool Refrigerator Start Relay
19	Overload (Used W/ Original Compressor)
20	Cover, Overload & Relay (W/Original Compressor)
21	Clamp, Cover (W/Original Compressor)
22	Screw
23	Lock
24	Hook, Lock
25	Hole Plug (2) (Almond)
26	“O“ Ring
27	WP842177 Whirlpool Refrigerator Door Key
28	Capacitor
29	Nut
30	Almond (Uncut)
30	WP72107 Whirlpool Touchup
30	VALVE, ACCESS (5/8“)
30	Washer
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	212643 Whirlpool Refrigerator Permagum Sealer
30	833938 Whirlpool Refrigerator Terminal
30	WP978025 Whirlpool Refrigerator Valve
30	978030 Whirlpool Refrigerator Valve
30	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
30	978027 Whirlpool Refrigerator Primary Valve
30	WP505587 Whirlpool Refrigerator Sealer
30	Kit, Insulation (Door Only)
30	978026 Whirlpool Refrigerator Primary Valve
30	WP503695 Whirlpool Refrigerator Sealer
30	VALVE, ACCESS (1/2“)
