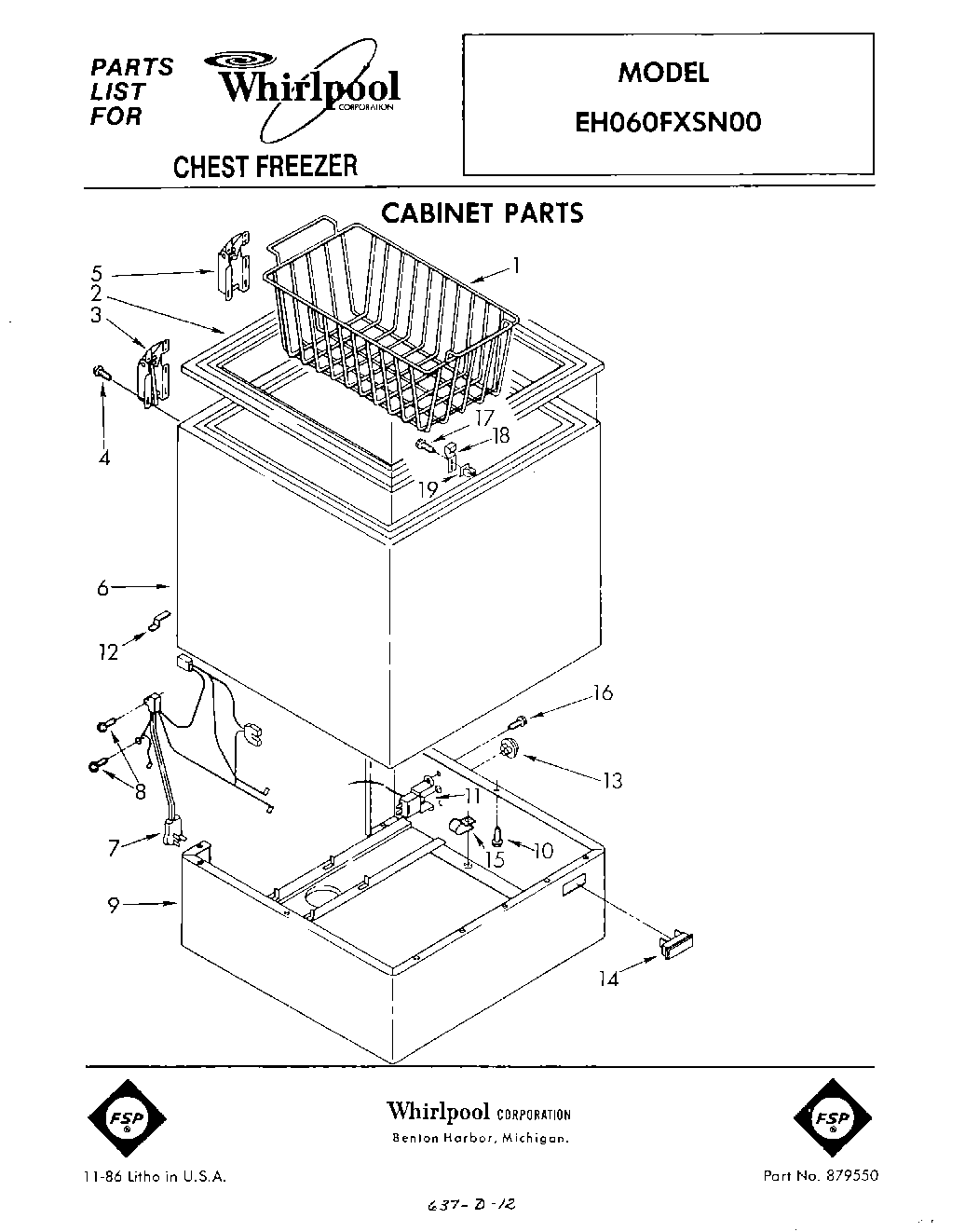

| 1 | Basket |
| 2 | Collar |
| 3 | Hinge |
| 4 | Screw (6) |
| 5 | Hinge, Springless |
| 6 | Cabinet (Not A Serviceable Part) |
| 7 | Harness, Wiring |
| 8 | Screw |
| 9 | Base |
| 10 | W11624204 Whirlpool Screw |
| 11 | Control |
| 12 | Clip, Cord Plug |
| 13 | Knob, Control |
| 14 | Light, Indicator |
| 15 | Clamp, Wire |
| 16 | Screw |
| 17 | Screw, No.8-32 x 1/2 |
| 18 | Strike, Lock |
| 19 | Grommet |
