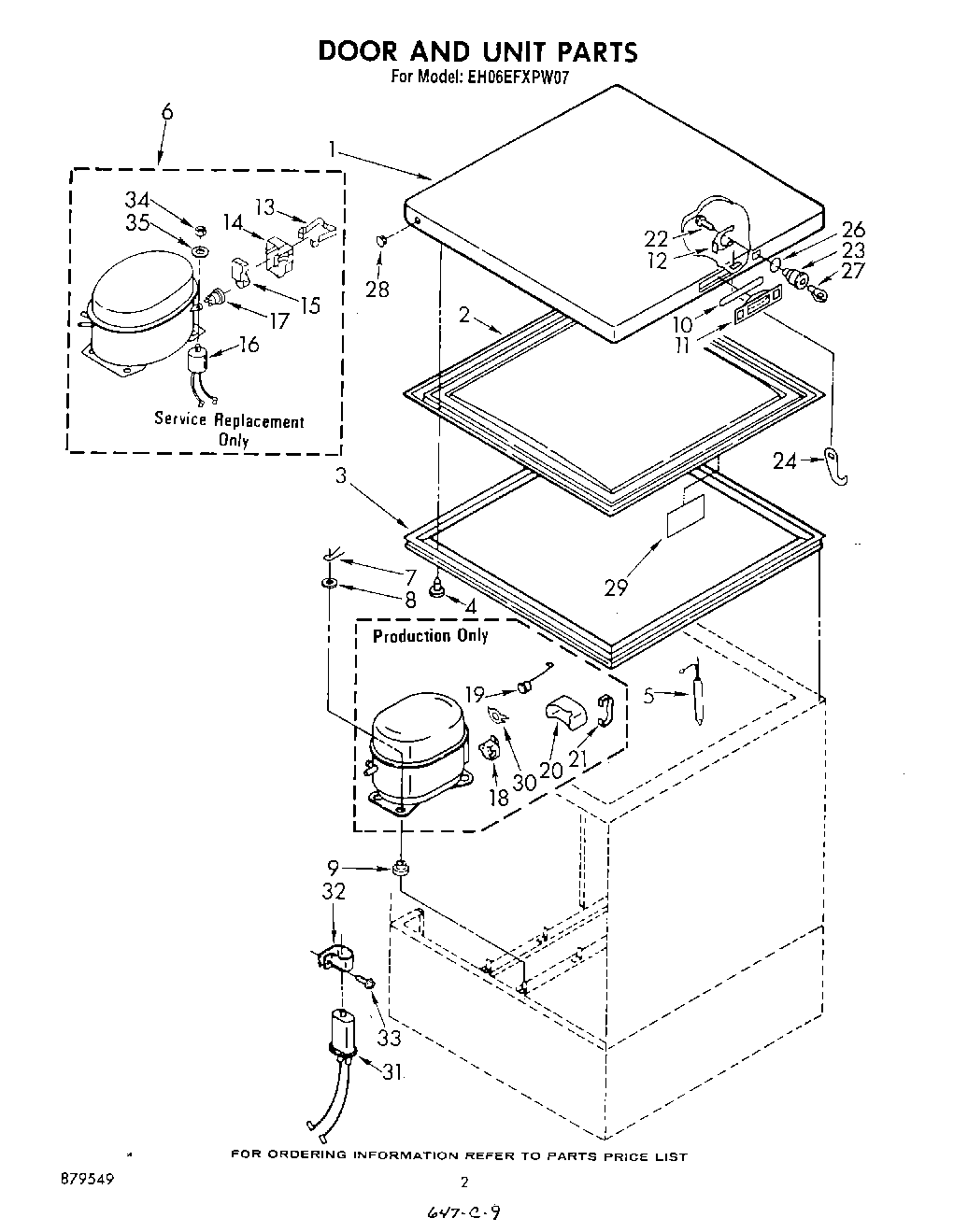

EH06EFXPW07 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Leveler (Thinner) (2oz.)
	WPL LIT730047
	Tech Sheet
	WPL LIT730689
	WPL LIT656493
	350942 Whirlpool Spray Paint
	WPL LIT879549
1	Door
2	Panel
3	Gasket
4	Clip (44)
5	Drier
6	Compressor (Service Replacement) (Includes Items 13, 14, 15, 16 & 17)
7	Clip (4)
8	Washer
9	876811 Whirlpool Grommet
10	Gasket, Handle
11	Handle, Snap-In
12	Clip, Spring
13	Strap
14	Cover, Terminal
15	Relay
16	Capacitor
17	Overload
18	WP2262181 Whirlpool Refrigerator Start Relay
19	Overload (Used W/ Original Compressor)
20	Cover, Overload & Relay (W/Original Compressor)
21	Clamp, Cover (W/Original Compressor)
22	Screw
23	Lock
24	Hook, Lock
26	“O“ Ring
27	WP842177 Whirlpool Refrigerator Door Key
28	Hole Plug (2)
29	Decal (Estate Series)
30	Overload, Spring (Used W/Original Compressor)
31	Running, Capacitor
32	Clamp, Capacitor
33	WP489128 Whirlpool Refrigerator Screw
34	Nut
35	WP503695 Whirlpool Refrigerator Sealer
35	212643 Whirlpool Refrigerator Permagum Sealer
35	VALVE, ACCESS (5/8“)
35	799344 Whirlpool Refrigerator Paint
35	72017 Whirlpool Appliance Touch-Up Paint White
35	833938 Whirlpool Refrigerator Terminal
35	978026 Whirlpool Refrigerator Primary Valve
35	WP505587 Whirlpool Refrigerator Sealer
35	978027 Whirlpool Refrigerator Primary Valve
35	978030 Whirlpool Refrigerator Valve
35	WP978025 Whirlpool Refrigerator Valve
35	VALVE, ACCESS (1/2“)
35	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
35	Washer
35	Kit, Insulation (Door Only)
